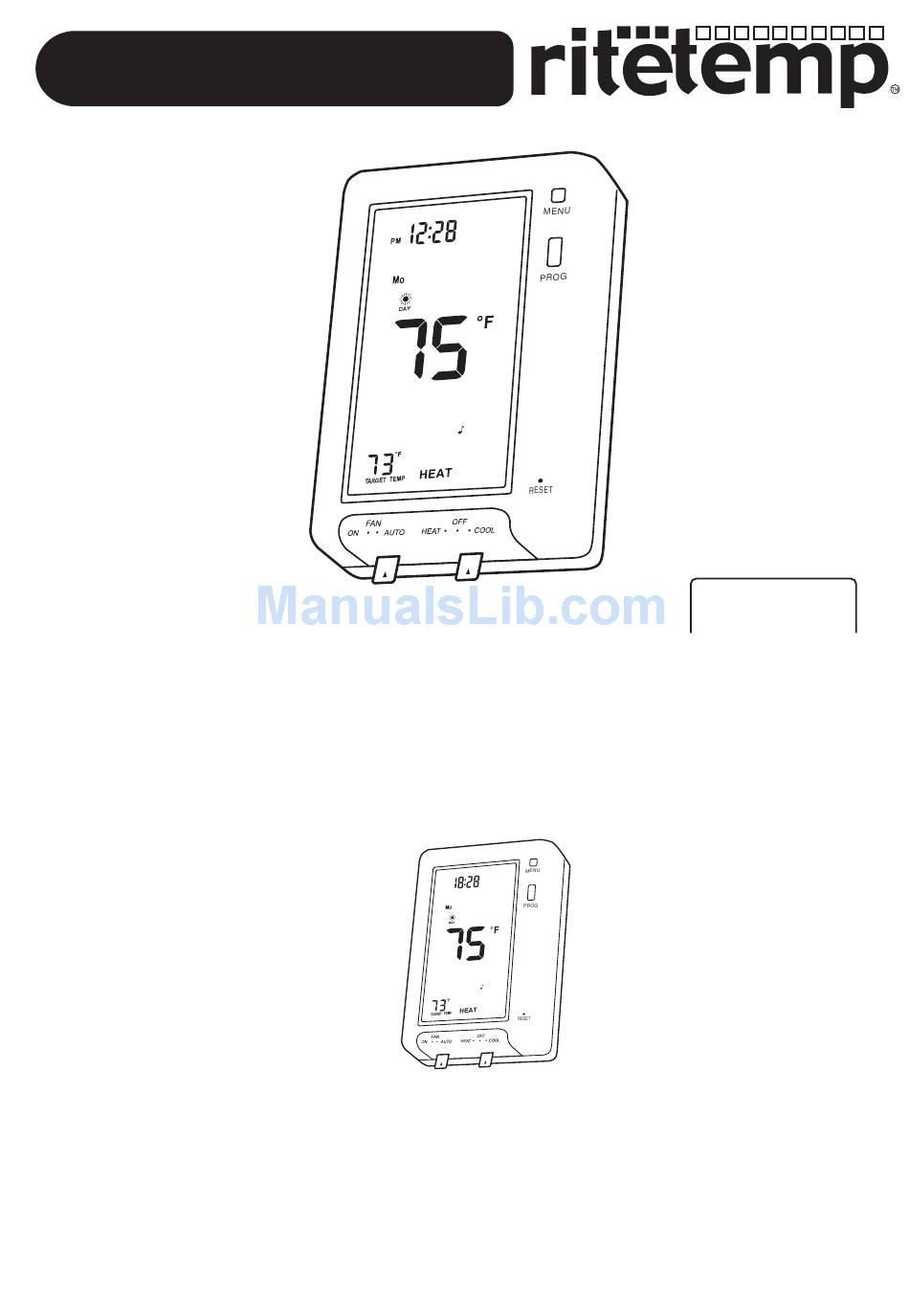

Operating Manual
Install guide 8035C
ENGLISH
Customer Support: 888-515-2585 or Visit our website
www.ritetemp-thermostats.com
Printed in China
1-402-051
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ritetemp 8035C
Summary of Contents for ritetemp 8035C
- Page 1 Install guide 8035C ENGLISH Customer Support: 888-515-2585 or Visit our website www.ritetemp-thermostats.com Printed in China 1-402-051...
- Page 2 Install guide 8035C To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 ï Fill wall opening with non-combustible insulation to prevent drafts. 3 Mount the 8035C ï Separate front from back of unit. Press up on the catch on bottom of thermostat and swing the body away from the base, lift up to remove the body from the base.
- Page 4 The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working. 2) The 8035C can run on the C wire if available. 24VAC ONLY As shown in the wiring diagrams, The C wire is the other side of the 24VAC heating transformer.
- Page 5 If you have a Zoned Heating/Cooling system with multiple thermostats, please refer to our website at www.ritetemp-thermostats.com for installation notes or call 1-888-515-2585. Before you Connect Wires Please refer back to these guidelines for safe and secure wire connections.
- Page 6 If you do not find the wiring information for your system try our website at p u m p www.ritetemp-thermostats.com F ro m h e a t w /o A u x h e or Customer Support at 888-515-2585 7 Wire Connections cont...
- Page 7 2 WIRE Heating a c e F r o m F u r n (GAS MILLIVOLT or 24vac STEP 1 - Connect the R Thermostat (or RH) wire to the RH terminal on the thermostat. This connects the Heater jumper wire Power to the thermostat.
-
Page 8: Hvac System
4 WIRE a c e F ro m F u rn STEP 1 - Connect the Y wire a n d A C u n Thermostat to the Y terminal on the thermostat. This connects to the Cooler compressor. jumper wire STEP 2 - Connect the RH or R wire to the RH terminal on the... - Page 9 Return To Page 9 8035C Features The 8035C can be used with most 24 volt gas, oil or electric heating and air conditioning systems, single-stage heat pumps or gas millivolt heating systems. It cannot be used with 120 volt heating systems or multistage heat pumps.
