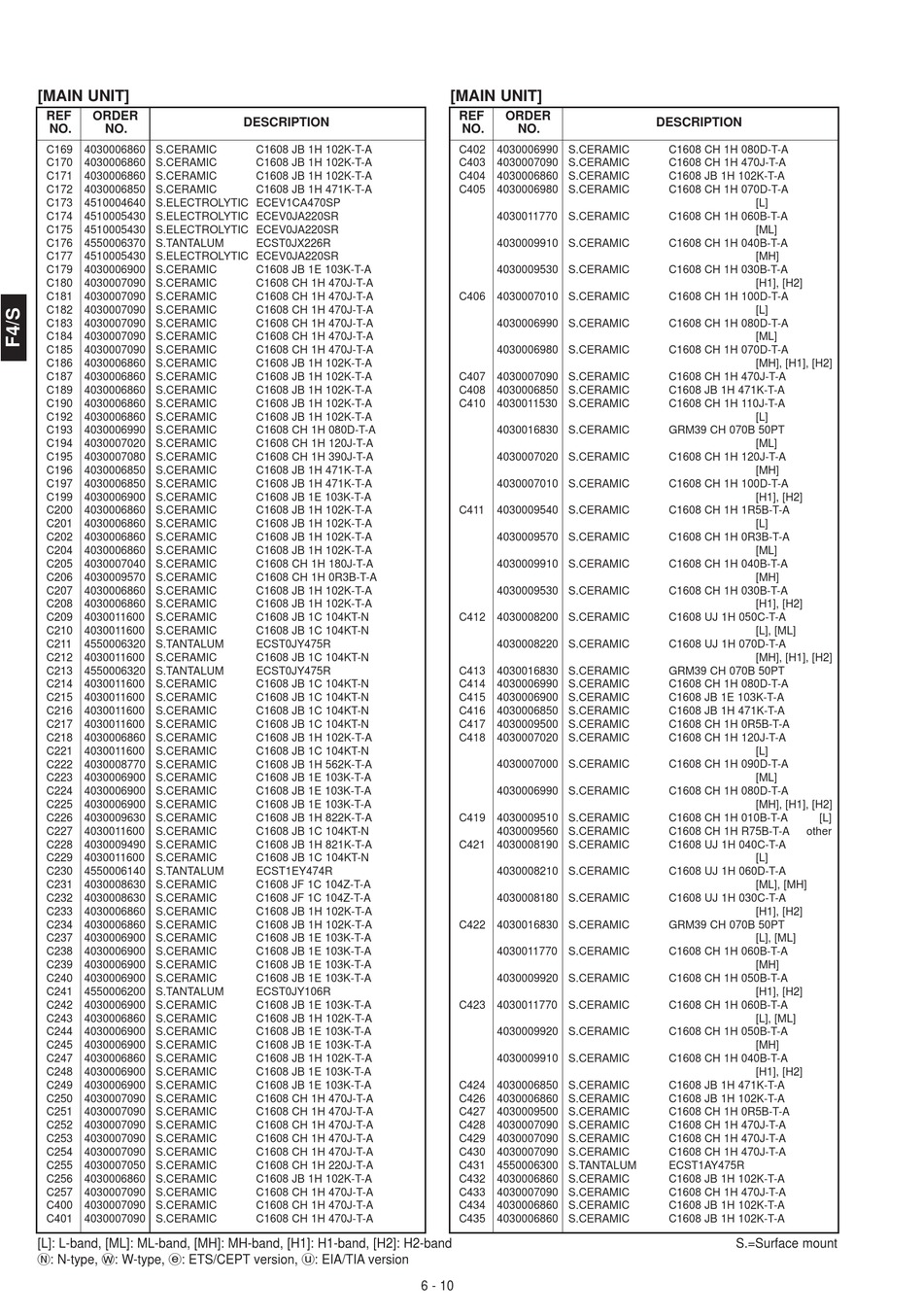

Icom IC-F3 Service Manual page 32

[MAIN UNIT]
REF ORDER
NO. NO.
C169 4030006860 S.CERAMIC
C170 4030006860 S.CERAMIC
C171 4030006860 S.CERAMIC
C172 4030006850 S.CERAMIC
C173 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C174 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C175 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C176 4550006370 S.TANTALUM
C177 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C179 4030006900 S.CERAMIC
C180 4030007090 S.CERAMIC
C181 4030007090 S.CERAMIC
C182 4030007090 S.CERAMIC
C183 4030007090 S.CERAMIC
C184 4030007090 S.CERAMIC
C185 4030007090 S.CERAMIC
C186 4030006860 S.CERAMIC
C187 4030006860 S.CERAMIC
C189 4030006860 S.CERAMIC
C190 4030006860 S.CERAMIC
C192 4030006860 S.CERAMIC
C193 4030006990 S.CERAMIC
C194 4030007020 S.CERAMIC
C195 4030007080 S.CERAMIC
C196 4030006850 S.CERAMIC
C197 4030006850 S.CERAMIC
C199 4030006900 S.CERAMIC
C200 4030006860 S.CERAMIC
C201 4030006860 S.CERAMIC
C202 4030006860 S.CERAMIC
C204 4030006860 S.CERAMIC
C205 4030007040 S.CERAMIC
C206 4030009570 S.CERAMIC
C207 4030006860 S.CERAMIC
C208 4030006860 S.CERAMIC
C209 4030011600 S.CERAMIC
C210 4030011600 S.CERAMIC
C211 4550006320 S.TANTALUM
C212 4030011600 S.CERAMIC
C213 4550006320 S.TANTALUM
C214 4030011600 S.CERAMIC
C215 4030011600 S.CERAMIC
C216 4030011600 S.CERAMIC
C217 4030011600 S.CERAMIC
C218 4030006860 S.CERAMIC
C221 4030011600 S.CERAMIC
C222 4030008770 S.CERAMIC
C223 4030006900 S.CERAMIC
C224 4030006900 S.CERAMIC
C225 4030006900 S.CERAMIC
C226 4030009630 S.CERAMIC
C227 4030011600 S.CERAMIC
C228 4030009490 S.CERAMIC
C229 4030011600 S.CERAMIC
C230 4550006140 S.TANTALUM
C231 4030008630 S.CERAMIC
C232 4030008630 S.CERAMIC
C233 4030006860 S.CERAMIC
C234 4030006860 S.CERAMIC
C237 4030006900 S.CERAMIC
C238 4030006900 S.CERAMIC
C239 4030006900 S.CERAMIC
C240 4030006900 S.CERAMIC
C241 4550006200 S.TANTALUM
C242 4030006900 S.CERAMIC
C243 4030006860 S.CERAMIC
C244 4030006900 S.CERAMIC
C245 4030006900 S.CERAMIC
C247 4030006860 S.CERAMIC
C248 4030006900 S.CERAMIC
C249 4030006900 S.CERAMIC
C250 4030007090 S.CERAMIC
C251 4030007090 S.CERAMIC
C252 4030007090 S.CERAMIC
C253 4030007090 S.CERAMIC
C254 4030007090 S.CERAMIC
C255 4030007050 S.CERAMIC
C256 4030006860 S.CERAMIC
C257 4030007090 S.CERAMIC
C400 4030007090 S.CERAMIC
C401 4030007090 S.CERAMIC
[L]: L-band, [ML]: ML-band, [MH]: MH-band, [H1]: H1-band, [H2]: H2-band
N: N-type, W: W-type, e: ETS/CEPT version, u: EIA/TIA version
DESCRIPTION
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 471K-T-A
ECST0JX226R
C1608 JB 1E 103K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 080D-T-A
C1608 CH 1H 120J-T-A
C1608 CH 1H 390J-T-A
C1608 JB 1H 471K-T-A
C1608 JB 1H 471K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 180J-T-A
C1608 CH 1H 0R3B-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1C 104KT-N
C1608 JB 1C 104KT-N
ECST0JY475R
C1608 JB 1C 104KT-N
ECST0JY475R
C1608 JB 1C 104KT-N
C1608 JB 1C 104KT-N
C1608 JB 1C 104KT-N
C1608 JB 1C 104KT-N
C1608 JB 1H 102K-T-A
C1608 JB 1C 104KT-N
C1608 JB 1H 562K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 822K-T-A
C1608 JB 1C 104KT-N
C1608 JB 1H 821K-T-A
C1608 JB 1C 104KT-N
ECST1EY474R
C1608 JF 1C 104Z-T-A
C1608 JF 1C 104Z-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
ECST0JY106R
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1E 103K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 220J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
[MAIN UNIT]
REF ORDER
NO. NO.
C402 4030006990 S.CERAMIC
C403 4030007090 S.CERAMIC
C404 4030006860 S.CERAMIC
C405 4030006980 S.CERAMIC
4030011770 S.CERAMIC
4030009910 S.CERAMIC
4030009530 S.CERAMIC
C406 4030007010 S.CERAMIC
4030006990 S.CERAMIC
4030006980 S.CERAMIC
C407 4030007090 S.CERAMIC
C408 4030006850 S.CERAMIC
C410 4030011530 S.CERAMIC
4030016830 S.CERAMIC
4030007020 S.CERAMIC
4030007010 S.CERAMIC
C411 4030009540 S.CERAMIC
4030009570 S.CERAMIC
4030009910 S.CERAMIC
4030009530 S.CERAMIC
C412 4030008200 S.CERAMIC
4030008220 S.CERAMIC
C413 4030016830 S.CERAMIC
C414 4030006990 S.CERAMIC
C415 4030006900 S.CERAMIC
C416 4030006850 S.CERAMIC
C417 4030009500 S.CERAMIC
C418 4030007020 S.CERAMIC
4030007000 S.CERAMIC
4030006990 S.CERAMIC
C419 4030009510 S.CERAMIC
4030009560 S.CERAMIC
C421 4030008190 S.CERAMIC
4030008210 S.CERAMIC
4030008180 S.CERAMIC
C422 4030016830 S.CERAMIC
4030011770 S.CERAMIC
4030009920 S.CERAMIC
C423 4030011770 S.CERAMIC
4030009920 S.CERAMIC
4030009910 S.CERAMIC
C424 4030006850 S.CERAMIC
C426 4030006860 S.CERAMIC
C427 4030009500 S.CERAMIC
C428 4030007090 S.CERAMIC
C429 4030007090 S.CERAMIC
C430 4030007090 S.CERAMIC
C431 4550006300 S.TANTALUM
C432 4030006860 S.CERAMIC
C433 4030007090 S.CERAMIC
C434 4030006860 S.CERAMIC
C435 4030006860 S.CERAMIC
6 - 10
DESCRIPTION
C1608 CH 1H 080D-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 070D-T-A
[L]
C1608 CH 1H 060B-T-A
[ML]
C1608 CH 1H 040B-T-A
[MH]
C1608 CH 1H 030B-T-A
[H1], [H2]
C1608 CH 1H 100D-T-A
[L]
C1608 CH 1H 080D-T-A
[ML]
C1608 CH 1H 070D-T-A
[MH], [H1], [H2]
C1608 CH 1H 470J-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 110J-T-A
[L]
GRM39 CH 070B 50PT
[ML]
C1608 CH 1H 120J-T-A
[MH]
C1608 CH 1H 100D-T-A
[H1], [H2]
C1608 CH 1H 1R5B-T-A
[L]
C1608 CH 1H 0R3B-T-A
[ML]
C1608 CH 1H 040B-T-A
[MH]
C1608 CH 1H 030B-T-A
[H1], [H2]
C1608 UJ 1H 050C-T-A
[L], [ML]
C1608 UJ 1H 070D-T-A
[MH], [H1], [H2]
GRM39 CH 070B 50PT
C1608 CH 1H 080D-T-A
C1608 JB 1E 103K-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 0R5B-T-A
C1608 CH 1H 120J-T-A
[L]
C1608 CH 1H 090D-T-A
[ML]
C1608 CH 1H 080D-T-A
[MH], [H1], [H2]
C1608 CH 1H 010B-T-A [L]
C1608 CH 1H R75B-T-A other
C1608 UJ 1H 040C-T-A
[L]
C1608 UJ 1H 060D-T-A
[ML], [MH]
C1608 UJ 1H 030C-T-A
[H1], [H2]
GRM39 CH 070B 50PT
[L], [ML]
C1608 CH 1H 060B-T-A
[MH]
C1608 CH 1H 050B-T-A
[H1], [H2]
C1608 CH 1H 060B-T-A
[L], [ML]
C1608 CH 1H 050B-T-A
[MH]
C1608 CH 1H 040B-T-A
[H1], [H2]
C1608 JB 1H 471K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 0R5B-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
ECST1AY475R
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
S.=Surface mount
