Summary of Contents for Zoom 9000

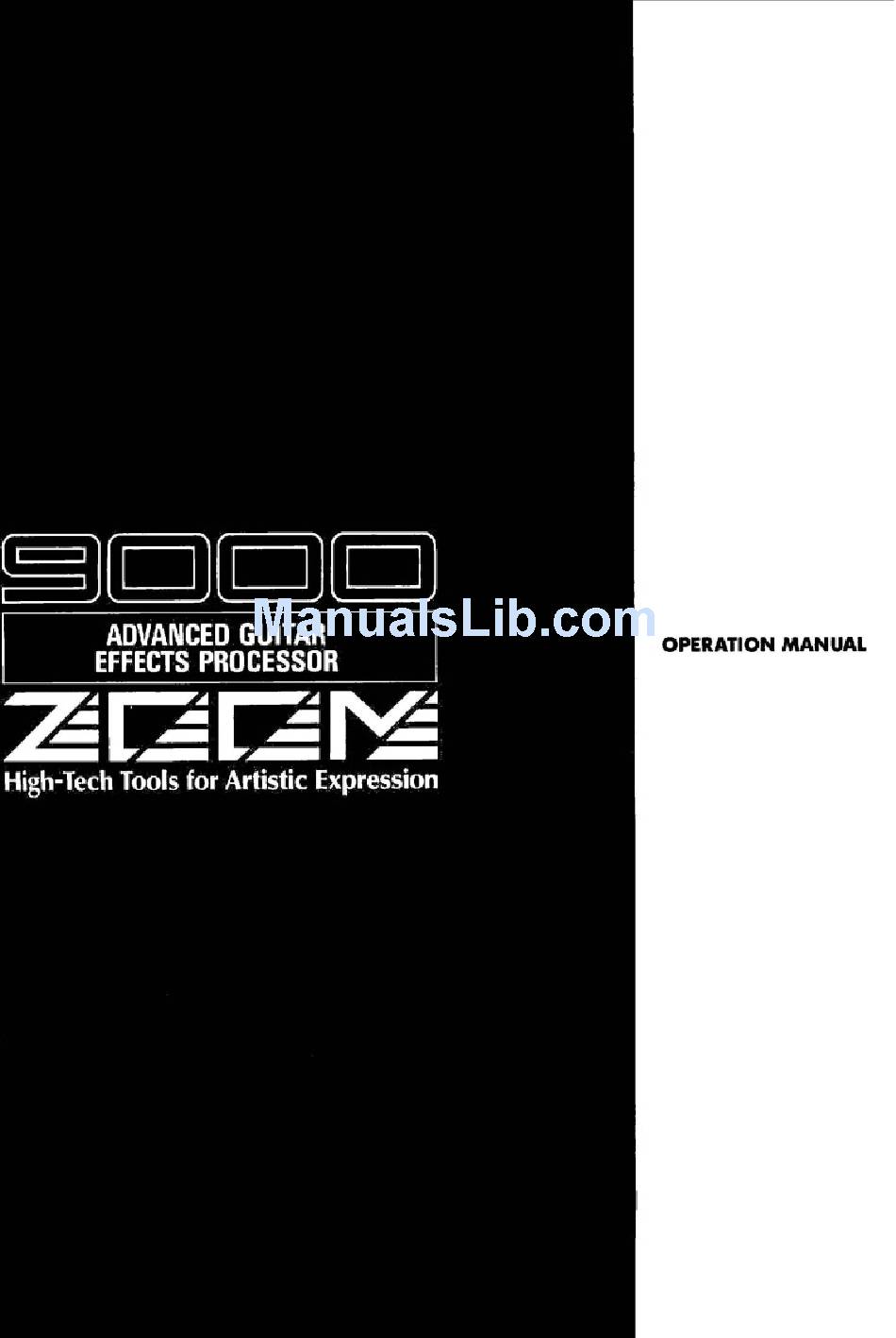

  • Page 1 OPERATION MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Precautions Precautions Terms Used in the Manual Names and Functions of the Controls and Connectors Front Panel Rear Panel Right Panel Connection Examples Play Mode Selecting Patch Turning On and Off of the Amplifier Simulator Adjusting the Master Volume Control E f f e c t s Bypassing the Tuning the Musical Instruments...
  • Page 3 Patches for effects and on and off of the Bypass circuit can be controlled by foot. Please take the time to read this manual carefully, in order to get the most out of your 9000 and ensure long-time use and reliability.

  • Page 4: Safety Precautions

    Handling Since the 9000 is a precision electronic device, avoid applying excessive force to the switches and buttons. Though the 9000 has been constructed for sturdiness and reliability, dropping, smashing, or applying too much weight to the product can cause damage.

  • Page 5: Precautions

    Contact the shop from which you have purchased the 9000 with the following information: model name; serial number, symptom; your name, address and phone number. Keep this manual in a safe, convenient place for future reference.
  • Page 6 Patch 9000 use a maximum of five Effect Modules simultaneously. A group of allows you Effect Modules, each of which has individual audio level setting in addition to their own The 9000 Effect Type settings, is referred a Patch. can store up to...
  • Page 7 Bank The 9000 calls the desired Patch from a group of four Patches. Each group is referred to as a Bank. Bank numbers and Patch numbers 1 to 4 to select the desired Patch From the desired Bank. Parameter The elements which determine the sound of an effect are referred to as parameters.

  • Page 8: Front Panel

    Front Panel Display This display shows the information necessary for operating the 9000, such as Banks, Patch numbers, effect parameter values and other messages. (2)STORE key T h i s key allows you to store the edited Patch in memory.
  • Page 9 (7)BY PASSTTUNER key This key allows you to turn off (or bypass) the effect temporarily. This key activatcs the tuning function when the 9000 is put in the Bypass status. (8)VALUE Play mode, normally, this key allows you to control the master volume.

  • Page 10: Rear Panel

    IN/POWER(input/power) connector For connection of a guitar. When the cable with a mono plug is connected to this connector, 9000 turns on automatically. Note that power is not turned on when a stereo plug is used. (2) DC-7.5V (AC adapter) jack For connection of the optional AC adapter (AD-0001) when supplying power from the AC adapter.
  • Page 11 Connection with only one guitar amplifier (Connection Example To use the 9000 with one guitar amplifier, connect the output from the musical instrument IN/lWWER connector of the 9000, the 9000 amplifier. and the connector of to the W i t h this connection, stereo effects such as reverb, stereo chorus, etc.

  • Page 12: Connection Examples

    12. When the cable is connected to the IN/POWER connector of the 9000, the 9000 turns automatically. When using the 9000 with batteries,...
  • Page 13 Patch number which is currently being selected. (5)Effect mark "@" shows the Effect Module that the selected Patch uses, with a mark. ' 3 Zatc: The contents displayed differ depending on the last status when the 9000 w a s turned off.

  • Page 14: Selecting A Patch

    Selecting the Patch Number Turning On and Off of the Amplifier Simulator The 9000 is equipped with the amplifier simulator function for obtaining bright sound when played back with a high-fidelity audio amplifier system. In the Play mode, press the AMPILINE key.

  • Page 15: Adjusting The Master Volume Control

    (individual volume control for each Patch) explained for the operations in the Edit mode. Bypassing the Effects The 9000 can bypass all the effects (turned off temporarily) in a Patch. This function is convenient when you want to check a change of the sound made by the effect. the Bypass status, the built-in automatic tuning function can be used.
  • Page 16 Tuning the Muslical lnst ruments The 9000 is equipped with an automatic guitar tuning function. This function can be used 9000 only when the is put the Bypass status. In the Play mode, press the BYPASSrf'UNER key. 9000 goes into the Bypass status, and the tuning function is activated.

  • Page 17: Calibrating The Tuner

    441Hz to 442Hz in order. 440Hz that The 9000 goes into the Bypass status again in about three seconds after you have selected the VALUE desired pitch with the key, and the changed pitch is stored in memory as the...
  • Page 18 Storing the Desired Patch in Different Bank The desired Bank number must be specified when selecting the desired Patch on the 9000. be used in a piece of music, in the same Bank Setting the required Patchcs, which are makes the operation easy. This section explains how to set a Patch horn one...
  • Page 19 Edit mode, an Effect Module which comprises the Patches of the 9000 is called one after another, and the desired parameters for each Patch c m be set. Entering the Edit Mode In the Play mode, select the Patch to be edited, and then press the EDITICANCEL key.
  • Page 20 The above Effect Modules are connected in series The Patches of the 9000 are controlled by these Effect Modules and the LEVEL parameter (volume control which is independent among the Patches). OUTL IN/POWFR-) COMP+DIST OUT R Composition of the Effect Modules...
  • Page 21 MODULE EFFECT TYPE MODULE EFFECTTYPE COMP+DIST CLEAN CHORS l RHYTHM CHORS2 CRUNCH TREMOL OVDRV STEP DIST METAL ENHANC PITCH PHASE FLANGE Effect Types of each Effect Module For example, while the REV Effect Module is selected from REV1, pressing the VALUE +key changes h e Effect Type as shown in the following figure.
  • Page 22 Type REV2 an example when the parameters for Effect The following figure shows changed. T I r n i ~ m PATCH PARAMETER PARAMETER PARAMETER Example of a Parameter Change key. Hold down the VALUE The value of the parameter selected changes PARAMETER PATCH PARAMETER...
  • Page 23 BYPASSfrUNER Pressing the key while editing the Patch sets temporarily the 9000 in the previous status (that of the last edit). This function is called "Comparison." display changes as follows, and the parameter of the Patch to be edited now set back to the parameter before editing.
  • Page 24 Patch. Factory-set Patches The 9000 has the original Patch data which is the same as the factory-set Patch data, in ROM (Read Only Memory) of the 9000. If you have accidentally deleted or changed the ROM.
  • Page 25 Edit mode, using the EDITICANCEL key. Patch Setting to the factory-set Status (Initialize) Initialization is a special function which sets the Patches and other settings of the 9000 in the factory-set status. Note that when you carry out the initializing function, all the Patches stored in memory will be deleted.
  • Page 26 This section cxplains thc parameters of all the effects available on the 9000. However, the explanation does not overlap for the use of the parameters which is common to another Effect Cornpressor+distortion Effect Module 1 : (COMP+DIST) This Effect Module uses a compressor and distortion effects. The compressor is an effect which maintains the volume at a certain level without loosing a sense of tone and attack.
  • Page 27 [Parameter] (1)COMP (Compressor): 0 DlST (Distortion) This Effect Type gives the same hard distortion as that when a large amplifier is driven fully with sounds at high level. [Parameter] (1)COMP (Compressor): 0 Module Effect Equalizer (EQ) This Effect Module includes two Effect Types to control the tone of sounds. EQ (Equalizer) This Effect Type is a tone-control-type equalizer which boosts or cuts high frequencies and low frequencies independently.
  • Page 28 Effect Module 3: Modulation (MOD) This Effect Module has 11 Effect ?hpes which change tone in time. PITCH (pitch) Type This Effect adds the effect sound with shifted pitch within a range of upper and lower one octave, the direct sound. [Parameter] (1)PIT (Pitch): 1-12...
  • Page 29 This parameter determines the amount of boost for the frequency to be set with the following FREQP parameter. (2) FREQ (Frequency): 0 T h i s parameter determines the center frequency to be boosted (3) PEAK (Peak): 0 to 10 This parameter determines the range of the sound boosted.
  • Page 30 0 CHORS2 (Chorus 2) This Effect 'l[Lpe gives a stereo chorus effect A maximum the sound. effect is obtained when played back with a stereo amplifier system. [Parameter] Type CHORS The parameters are the same as those for the Effect 1 above.
  • Page 31 (3) SPD (Speed): This parameter speeds up the effect six times for a special effect, by setting the parameter value to 1. %2$f#d This effect is similar t o that obtainable with the sample & hold function of a synthesizer. Setting the speed to gives an SFX-likeeffect to the sound.
  • Page 32 To obtain a clear metallic sound, set COMP+DIST CLEAN (the Effect Type with the distortion set to off), and play back with a pure tone. Effect Module 4: Delay (DLY) This Effect Module adds an echo sound to the direct sound. Only one Effect Type available.
  • Page 33 Effect Module 5: Reverb (REV) This Effwt Module includes three Effect I)rpes which give a reverb effect to the sound. REV1 (Reverb 1) This Effect Type is a Hall-type reverb effect, suited to adding rich ambience to the sound. [Parameter] (1)TIME: 0 to 10 This parameter determines the time it takes for the reverberation to decay.
  • Page 34 Level Level Level Direct SHP= Time Types of Shape DLYP (Delay This Effect is a ping-pong delay effect which the delayed repcats alternate between the left and right channels. (1)DECY (Decay): 0 to 10 This parameter determines the number of repetitions of the delay sound. (2) TIME: 1 This parameter determines the delay time (intervals between the delay sounds).
  • Page 35 The FCOl does not require an independent power supply because power is supplied from the 9000 to the FCO1. Be sure turn off the power of the 9000 before connecting the FCOl. Selecting the Patch Step on the BANK switch.
  • Page 36 FCO l 9000 BANK PATCH BANK PATCH Bypass Operation To release the 9000 from BANK and PATCH keys of the FCO1, the Bypass status, using the select either of the following Patches. 9000 can be remotely controlled from the FCOl only when it is put in the Play mode.
  • Page 37 9000 SPECIFICATIONS 21 programs Effect Programs: 20(programmable) Patch Memory : Input : Guitar Input 1/4"phone jack (input impedance 47Qk SZ ) mini stereo jackX l MIX IN 1/4"phone jack X 2 Output Main Output (max 4Vp-p, l Qk Phones mini stereo jack...
  • Page 38 Patch List NAME : FULL CLEAN CHORUS MODULATION DELAY RBVERB PATCH LVL COMPt DIST EQUALIZER TYPE TYPE CLEAN TYPE CHORSZ REV1 'RHYTHM ENHANC 'CRUNCH DECAY (DEP-0 F - l par1 p a l @EPT) OVERDRV NAME : FAT DELAY CHORUS MODULATION DELAY REVERB...
  • Page 39 NAME HEAVY DISTORTION DELAY COMP+DIST CLEAN 'RHYTHM CRUNCH OVERDRV DISTORTION COMPI l COMMENTS: : SLOW CLEAN PHASE NAME REVERB COMP+DIST EQUALTZER MODULATION DELAY PATCH LVL CLEAN TYPE TYPE TYPE RIIYTIm PHASE REV1 --------------.--------------------------------------- CRUNCH DECAY P r l ( D E m parl(TIhfE) ~ l ( L 0 ) OVERDRV...
  • Page 41 NAME : ROCK CHORUS LEAD NAME :COMB LEAD COMP+DTST EQUALIZER PATCI-I LVL MODULATION DELAY REVERB TYPE CLEAN TYPE TYPE . - - - - - - - - - - - - - , . - - - - - - - - - - - - - - - - 'RHYTHM ENHANC FLANGE...
  • Page 42 PRESET PATCHES PATCH NAME PATCH NAME SOFT CHORUS MODERN JAZZ ECHO LEAD BLUES CHORUS HEAVY ROCK CHORUS ROCK THICK ROCK LEAD PITCH LEAD FUNKY PHASE SMOOTH CHORUS FULL CHORUS LEAD ZlDOMTALg ROCK CRUNCH SQUEEZE BASS LEAD CRY- BLANK PATCH CHART BANK PATCH NAME:...
  • Page 43 High-Tech Tools for Artistic Expression ZOOM CORPORATION 3 5 12 Soto Setkoukai Kanda Bldg Kanda Chiyoda Japan Tokyo Tcl 103,5256 1741 Fau 10315256 1743 Oyster Boil Poml bard Caltlo~f~ta 0 4 ~ 8 0 6 A Soulh S E ~ d I ~ C C 5885 -a.
