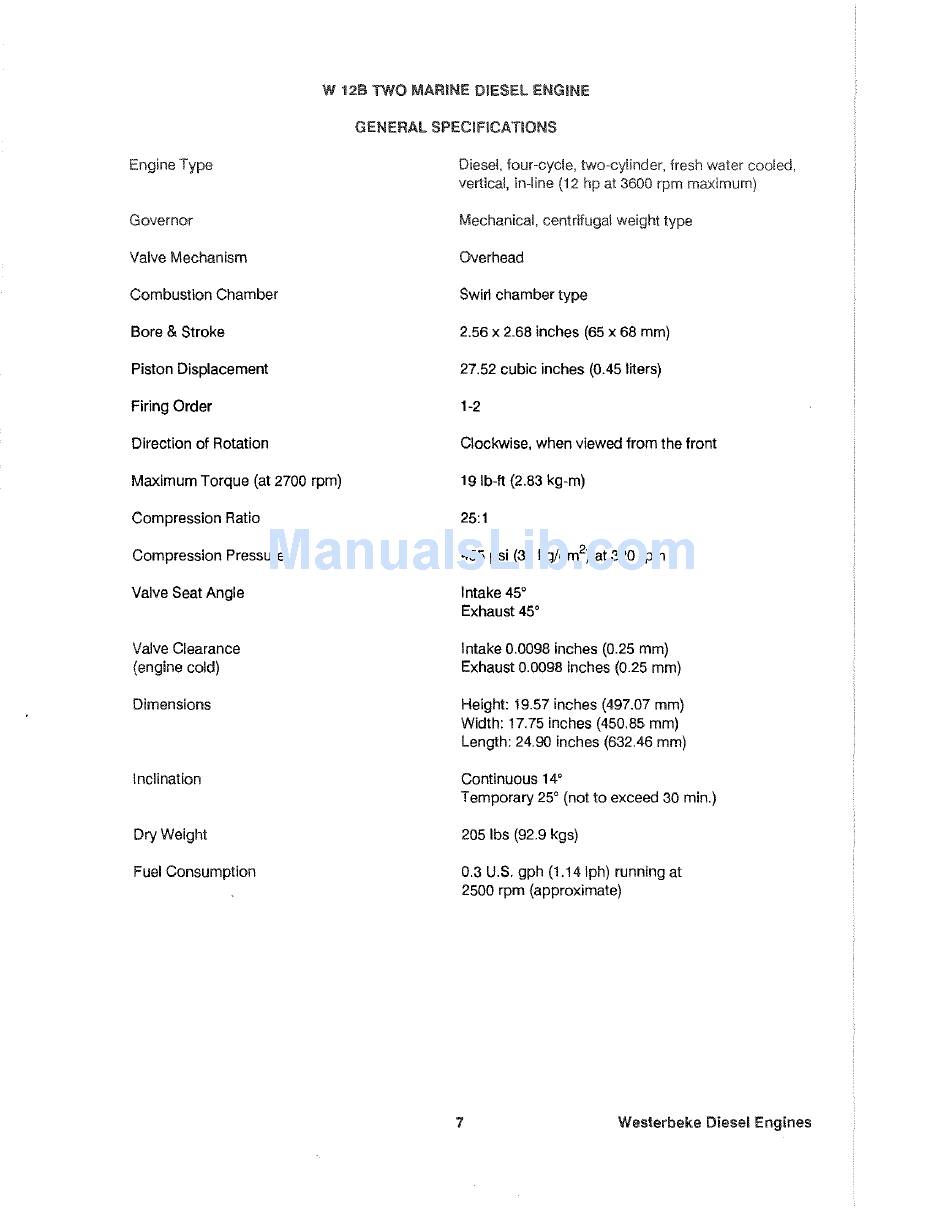

W 1213 TWO MARINE DIESEL ENGINE
Engine Type
Governor
Valve Mechanism
Combustion Chamber
Bore & Stroke
Piston Displacement
Firing Order
Direction of Rotation
Maximum Torque (at 2700 rpm)
Compression Ratio
Compression Pressure
Valve Seat Angle
Valve Clearance
(engine cold)
Dimensions
Inclination
Dry Weight
Fuel Consumption
GENERAL SPECIFICATIONS
Diesel, lour-cycle, two-cylinder, fresh water cooled,
vertical, in-line (12 hp at 3600 rpm maximum)
Mechanical, centrifugal weight type
Overhead
Swirl chamber type
2.56 x 2.68 inches (65 x 68 mm)
27.52 cubic inches (0.45 liters)
1-2
Clockwise, when viewed from the front
19 Ib-ft (2.83 kg-m)
25:1
455 psi (32 kg/cm
2
)
at 320 rpm
Intake 45
0
Exhaust 45
0
Intake 0.0098 inches (0.25 mm)
Exhaust 0.0098 inches (0.25 mm)
Height: 19.57 inches (497.07 mm)
Width: 17.75 inches (450.85 mm)
Length: 24.90 inches (632.46 mm)
Continuous 14
0
Temporary 25
0
(not to exceed 30 min.)
205 Ibs (92.9 kgs)
0.3 U.S. gph (1.14 Iph) running at
2500 rpm (approximate)
7
Westerbeke Diesel Engines
