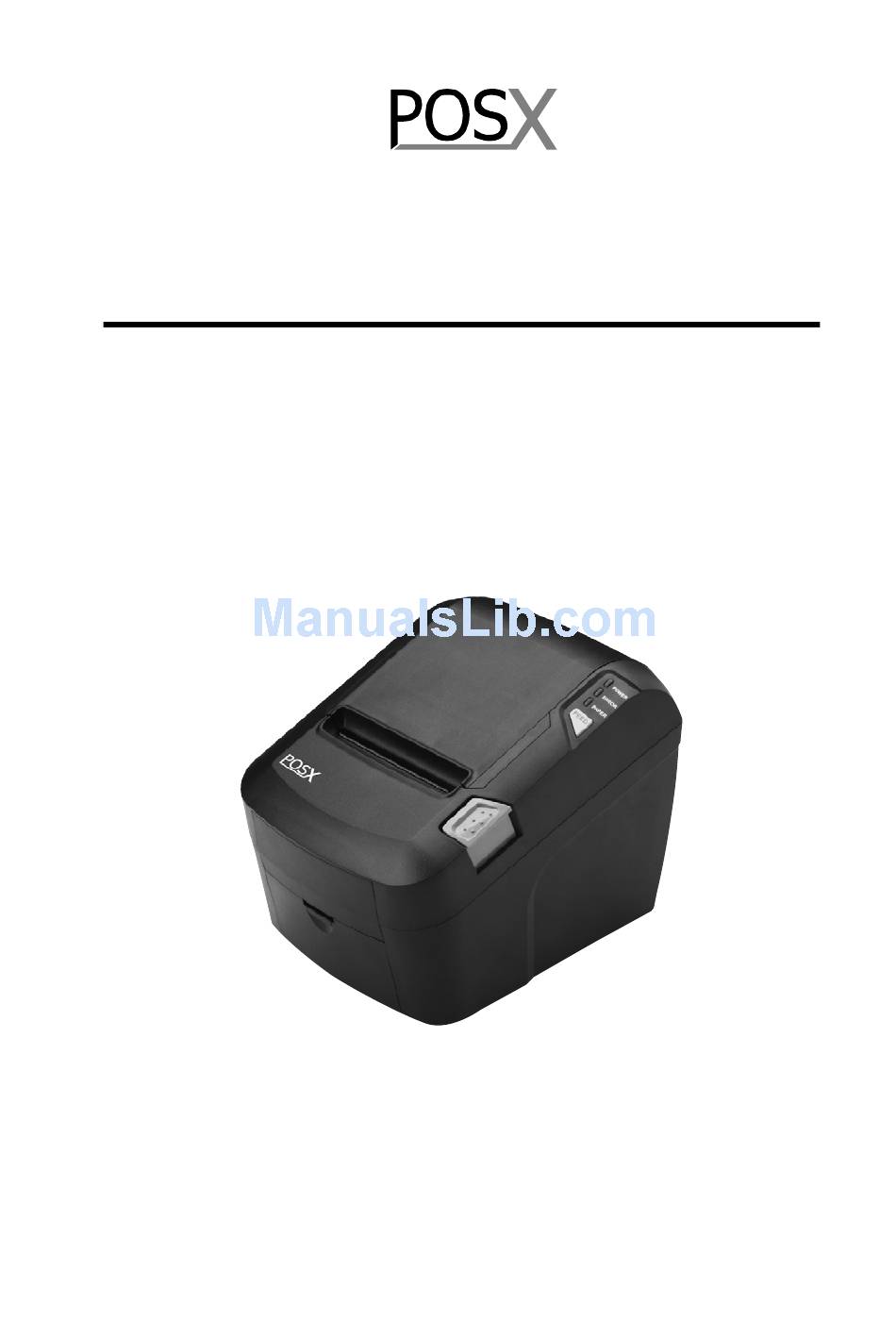

- Page 1 EVO HiSpeed ::: Receipt Printer User’s Manual ::: All specifications are subject to change without notice...
- Page 2 5-Year Limited Warranty POS-X Inc. provides this five (5)-Year Warranty for this product. For terms and conditions please go to: WWW.POS-X.COM All specifications are subject to change without notice...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Dip switch setting 3. Control panel and other functions 4. Self Test 5. Hexadecimal Dump 6. Specifications 6.1. -
Page 4: Parts Identifications
1. Parts Identifications... -
Page 5: Setting Up The Printer
2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. The Printer User’s Manual Roll Paper Adaptor (Option) Interface Cable (Option) -
Page 6: Connecting The Cables
2-2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : Before connecting any of the cables, make sure that both the printer and the computer are turned off. -
Page 7: Interface Connector
2-2-1. Interface Connector - Serial interface SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20 Output Printer handshake to host line RS-232C level Input Data Send Ready 1, 7 System Ground - USB interface SIGNAL DESCRIPTION... -
Page 8: Centronics Parallel Interface
- Centronics Parallel interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output Paper empty SELECT Output Printer status for ON/OFF line AUTO FEED- Input Paper auto feed signal... -
Page 9: Cash Drawer Connector
2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing. SIGNAL DESCRIPTION Signal GND Drawer kick-out drive signal 1 Output Drawer open/close signal... -
Page 10: Loading The Roll Paper
2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. (Turn off power switch) ☞... - Page 11 5. Be sure to note the correct direction that the paper comes off the roll. 6. Pull out a small amount of paper, as shown. Then, close the cover. 7. Tear off the paper as shown.
- Page 12 ☞ CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the paper from jamming. 1.
-
Page 13: Control Panel And Other Functions
3. Control panel and other functions. 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’ s status. Control Panel Button The button can be disabled by the ESC c 5 command. -
Page 14: Self Test
4. Self Test The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings. This test is independent of any other equipment or software. Running the self test 1. -
Page 15: Specifications
6. Specifications Important! When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. Be careful about installing the printer in an area where there is noise. Take the appropriate measure to protect against electrostatic AC line noise, etc. - Page 16 (8) Overall dimension...
-
Page 17: Auto Cutter Specifications
6-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.065 ~ 009mm (3) Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and90µm) 6-3. Interface RS232C Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface USB COMBO Interface, Ethernet Interface(100Mbps) 6-4. -
Page 18: Environmental Requirements
♣Important! When using a printer power supply other than optional AC adaptor, be sure that the following cautions are observed. 1. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. 2. Be careful about installing the printer in an area where there is noise. 3. -
Page 19: Command List
7. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer DLE DC4 Generate pulse at real-time ESC FF... - Page 20 Command Function REMARKS GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS / Print downloaded bit image GS B Turn white/black reverse printing mode on/off GS H Select printing position of HRI characters GS I Transmit printer ID GS L...
- Page 21 POS-X, Inc. 1975 Midway Lane Suite O Bellingham, WA 98226 360-738-8433 support@pos-x.com...
