POS-X XR-200 Product Specification

Mini dot impact printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

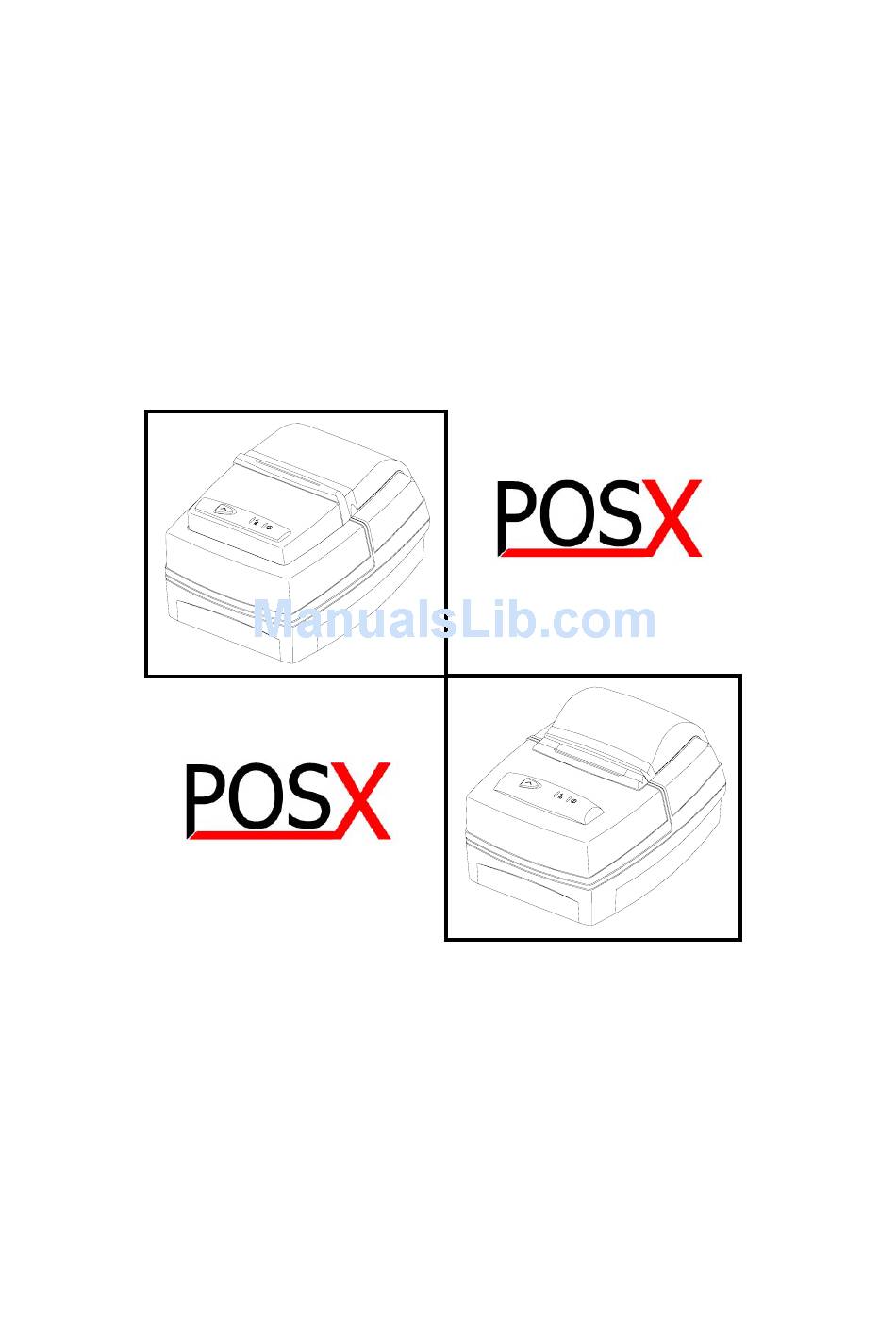

XR-200
MINI DOT IMPACT PRINTER
PRODUCT SPECIFICATION
DATE : MAY 3, 2004
MANUAL REVISION 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR-200 and is the answer not in the manual?

Questions and answers

Related Manuals for POS-X XR-200

Summary of Contents for POS-X XR-200

  • Page 1 XR-200 MINI DOT IMPACT PRINTER PRODUCT SPECIFICATION DATE : MAY 3, 2004 MANUAL REVISION 2.0...
  • Page 2 Emulation mode, communications mode, baud rate, serial/parallel handshake, and head printing characteristics are all configured through dip switch settings. Data Buffer The XR-200 printer has a built-in 48 Kilobyte I/O buffer allowing the host computer to free itself after sending the print data. Reliable communications Centronics parallel or RS-232C compatible communications is built-in.

  • Page 3: Printer Specification

    Printer Specification MODEL XR-200 PRINT METHOD 9-pin serial impact dot matrix PRINT DIRECTION Bi-directional (with logical seeking) NO. OF COLUMNS Epson Mode : 42/35, 40/33 Other Modes : 40/32 FONT SIZE 7 x 9, 9 x 9 dots LINE SPACING...

  • Page 4: Configuration Setup

    DIP switch information. If the printer setup needs to be changed, turn the Power Off before changing the setting. The printer will be setup at the factory as follows; Printer is setup as follows: Model: XR-200 Firmware: Ver X.XX Loopback: Not Detected(DSR)

  • Page 5: User Switches

    A Power switch located on the lower left side of the printer is used to turn the printer on/off. Indicators This section explains the different patterns signaled by the two LED indicators located on the top cover of the XR-200. LED1 LED2 STATUS...

  • Page 6: Command List

    Command List EMULATION EPSON TM-U200 Command Hex Code Description <09>H Horizontal tab <0A>H Print and line feed <0D>H Carriage Return DLE EOT <10>H<04>H<n> Real-time status transmission DLE ENQ <10>H<05>H<n> Real-time request to printer ESC SP <1B>H<20>H<n> Set right-side character spacing ESC ! <1B>H<21>H<n>...

  • Page 7: Emulation Citizen Idp-3540

    EMULATION CITIZEN iDP-3540 Command Hex Code Description <07>H Drive pulse setting command for 1st drawer <18>H Clear data in buffer <0A>H Paper feed <0C>H<n> Paper feed n lines <0D>H Print command <0E>H Select expanded character mode <0F>H Select normal character mode <11>H Initial set command <12>H...

  • Page 8: Emulation Verifone 900

    EMULATION VERIFONE 900 Command Hex Code Description <00>H Pad character <18>H Empty print buffer and cancel character attributes <0A>H Print and feed one line <0C>H Print data in buffer and eject paper to 1.2 <0D>H Line feed <12>H Change ribbon color <1E>H Set double width mode or <0E>H...

  • Page 9: Emulation Star Sp200

    EMULATION STAR SP200 Command Hex Code Description <07>H Differed drive command “ A” for peripheral unit (Default setting) <18>H Cancel print data in buffer <0A>H Line feed <0D>H Line feed (same as LF) <0E>H Select expanded character mode <0F>H Cancel expanded character mode Immediate drive command “...
  • Page 10 Interface The tables below describe the type of socket and the function of each pin. <D-SUB 25 Female Serial Port> <D-SUB 25 Male Parallel Port> <D-SUB Centronics Parallel Port> <D-SUB 9 Female Serial> Page 9...

  • Page 11: Serial Interface

    1.Serial interface 1.1 D-SUB 25Pin Serial Port SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20 Output Printer handshake to host line RS-232C level Input Data Send Ready 1, 7 System Ground 1.2 D-SUB 9Pin Serial Port SIGNAL DESCRIPTION...
  • Page 12 2.Parallel interface 2.1 D-SUB 25Pin Parallel Port SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0-7 Input Data bit Transmitted 0 – 7 ACK- Output Data receiving competed BUSY Output Impossible to printer data receiving Output Paper empty SELECT Output Printer’...

  • Page 13: Cash Drawer Connector

    Cash Drawer Connector The XR-200 can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510 ms or less, when not printing. <Cash Drawer Connector> SIGNAL...

  • Page 14: Dip Switch Settings

    Dip Switch Settings This table gives the definition for the DIP switch settings. Function Setting Emulation Epson TM-U200 Citizen iDP3540 Verifone P900 Star SP200 CR=CR Only Character CR=CR + LF 40/33 Char/Line 42/35 Char/Line Flow Xon/Xoff Control DTR/DSR Baud 38400 Rate 19200 9600...
  • Page 15 :: MEMO :: Page 14...
  • Page 16 :: MEMO :: Page 15...
  • Page 17 :: MEMO :: Page 16...
