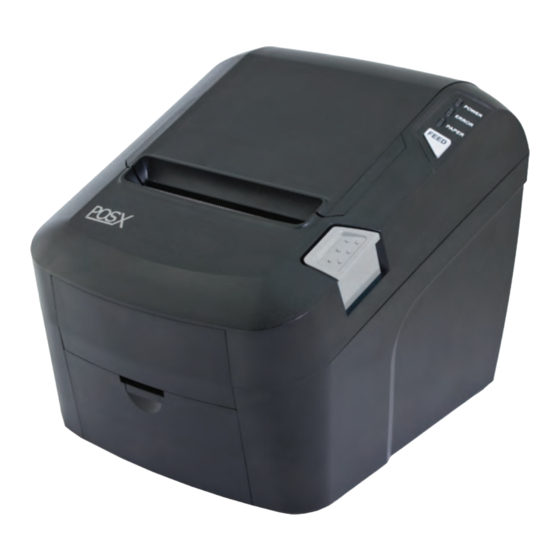

POS-X EVO Green User Manual

Receipt printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL : EVO Green
Receipt Printer User's Manual
All speci cations are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO Green and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POS-X EVO Green

Summary of Contents for POS-X EVO Green

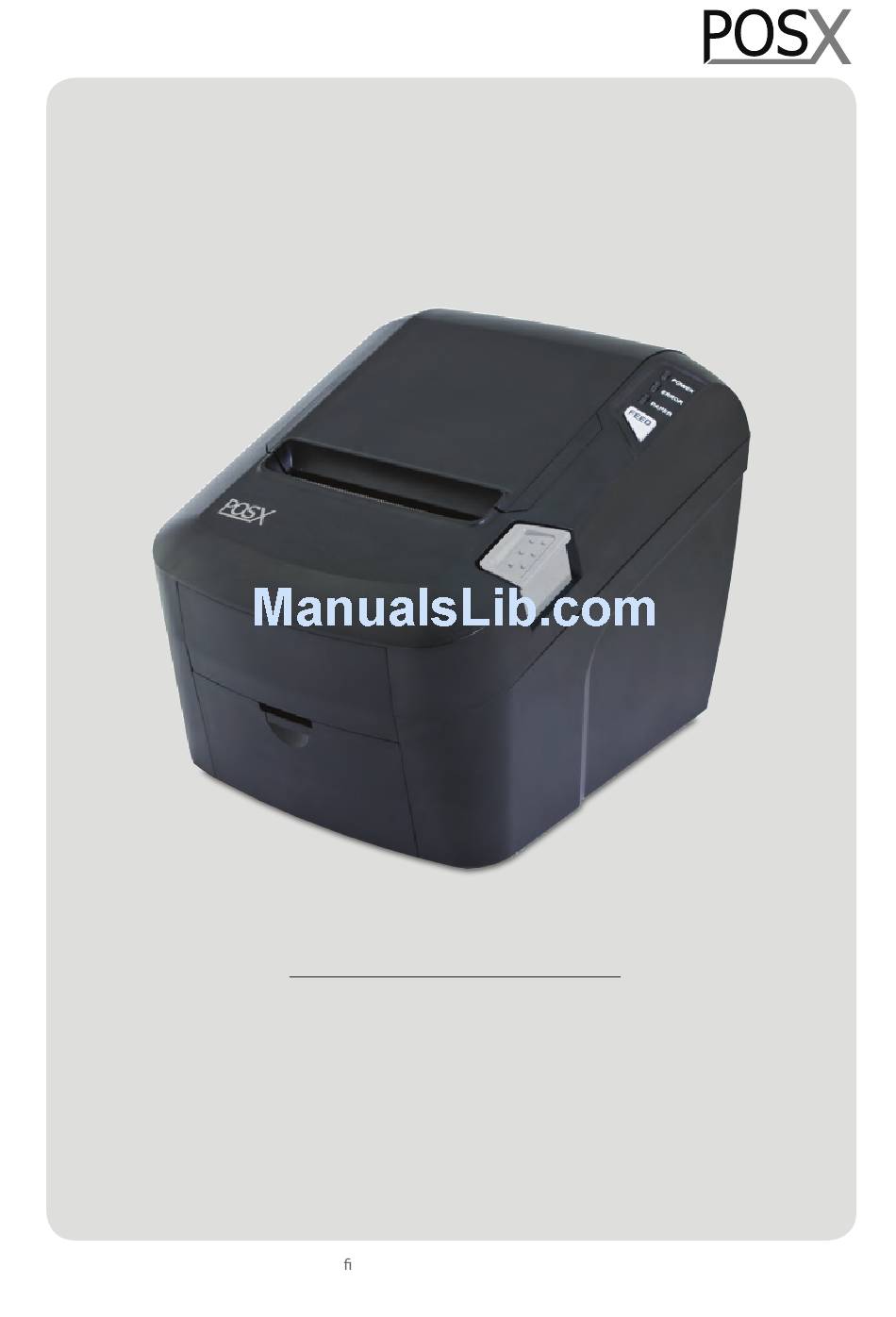

  • Page 1 MODEL : EVO Green Receipt Printer User’s Manual All speci cations are subject to change without notice...
  • Page 3 3-Year Limited Warranty three 3 For terms and conditions please go to: WWW.POS-X.COM...

  • Page 4: Table Of Contents

    Table of Contents 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the roll paper 2.4 Adjustment of paper width 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicating 4. Self Test 5.

  • Page 5: Parts Identifications

    1. Parts Identifications CONTROL PANEL Features LED indicators to indicate printer status and switches to operate PRINTER COVER the printer. Open this cover to load or replace paper. COVER OPEN LEVER Pull down this lever to open the printer cover. POWER SWITCH Used to turn on/off power to the printer.

  • Page 6: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. The Printer User's Manual Roll Paper Interface Cable(optional) Adaptor(Optional)

  • Page 7: Connecting The Cables

    2-2. Connecting the Cables You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below : INTERFACE CONNECTOR INTERFACE CONNECTOR(SERIAL) POWER CONNECTOR (ETHERNET) For connection to a For connection of the...
  • Page 8 2-2-1. Interface Connector <9 Pin Serial> <USB “B” Type> <Ethernet> 9Pin Serial Interface Signal Description Input Printer receive data line RS-232C level Output Printer transmit data line RS-232C level 4, 7 Output Printer handshake to host line RS-232C level System Ground Input Data Send Ready 1,8,9...
  • Page 9 Ethernet Interface SIGNAL Data Out + Output Data + Data Out - Output Data - Ground Data IN + Input Data + Data IN - Input Data - 2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.

  • Page 10: Loading The Roll Paper

    2-3. Loading the Roll Paper Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. (Turn off power switch) 1.
  • Page 11 5. Be sure to note the correct direction that the paper comes off the roll. 6. Pull out a small amount of paper, as shown. Then, close the cover. 7. Tear off the paper as shown.
  • Page 12 ♣CAUTION: When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming. 1.

  • Page 13: Adjustment Of Paper Width

    2-4. Adjustment of paper width 1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow. 2. Tight the screw after adjusting the Paper Guide. 3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.

  • Page 14: Control Panel And Other Functions

    3. Control panel and other functions 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’ s status. Control Panel Button The button can be disabled by the ESC c 5 command.

  • Page 15: Self Test

    4. Self Test The self-test result indicated whether the printer is operating properly. Also with this, user can check following options or status of the printer. Control circuit Printer mechanism Printing quality ROM version Interface setting This test is independent of any other equipment or software. Running the self test 1.

  • Page 16: Ascii Print

    5. ASCII Print ASCII PRINT is printing a test page constructed ASCII code. You can able to check the printer works properly with this The ASCII PRINT test automatically ends and cuts the paper after printing the following: *** Completed *** The printer is ready to receive data as soon as it completes the ASCII PRINT.

  • Page 17: Hexadecimal Dump

    7. Hexadecimal Dump This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you go into the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

  • Page 18: Printer Cleaning

    8. Printer cleaning If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer. ♣Note : 1. Make sure to turn the printer power off prior to cleaning 2.

  • Page 19: Specifications

    9. Specifications Appendix A : Specifications 9-1. General Specifications (1) Printing Method Direct line thermal printing. (2) Print speed 200mm/sec (3) Dot density 180 DPI (Hor / Ver) 180 / 180 (0.141mm / 0.141mm dot) (4) Printing Width 180 DPI Max 72mm (512 dots) (5) Number of print columns.

  • Page 20: Auto Cutter Specifications

    9-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.06 ~ 0.09 mm (3) Cutter Life 1.5 million cuttings 9-3. Interface USB (B type) + Serial(RS-232C) + Ethernet 9-4. Electrical Characteristics (1) Input Voltage DC 24V ±...

  • Page 21: Environmental Requirements

    ♣Important! When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. (2) Be careful about installing the printer in an area where there is noise. (3) Take the appropriate measure to protect against electrostatic AC line noise, etc.

  • Page 22: Command List

    10. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer DLE DC4 Generate pulse at real-time ESC FF...
  • Page 23 Command Function REMARKS ESC t Select character code table ESC { Turn upside-down printing mode on/off FS p Print NV bit image FS q Define NV bit image GS ! Select character size GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS /...
  • Page 24 POS-X, lnc. 1975 Midway Lane Suite O Bellingham WA 98226 360-738-8433 support@pos-x.com EVO Green Rev. B 04/13...
