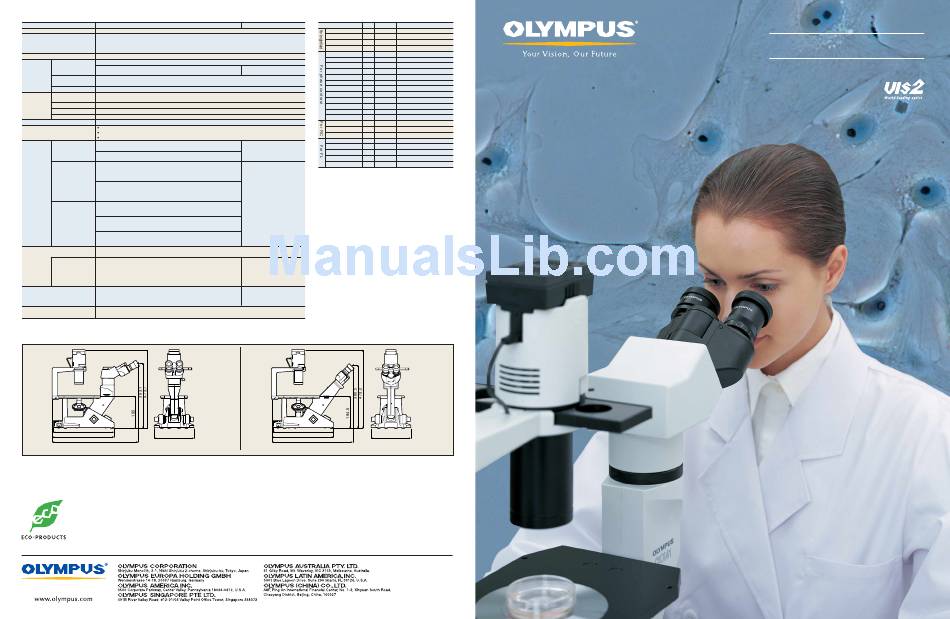

Olympus CKX41 Brochure & Specs

CKX41/CKX31 specifications
Item CKX41
Optical system UIS2 (Universal Infinity-corrected) optical system
Focus Vertical nosepiece movement (stage is fixed),
coaxial coarse and fine focus with tension adjustment mechanism, roller slide mechanism,
stroke: 7 mm up and 2 mm down from focus position which is 1 mm above the stage,
stroke per rotation: 36.8 mm (coarse), 0.2 mm (fine)
Revolving nosepiece Quadruple
Stage Plain stage 160 mm (L) x 250 mm (W)
Exchangeable insert plate (ø25 mm opening) incorporated
Mechanical stage Right-hand low drive coaxial controls,
stage movement: X=120 mm, Y=78 mm, with three dish/sample holders
Substage 70 (L) X180 (W) mm
Illumination Light source 6 V, 30 W halogen lamp, lamp socket (U-LS30-3-5),
system built-in frosted and heat absorbing filters, detachable illuminator
Filter holder Insert up to 11 mm thick with ø45 mm filter, detachable
Aperture diaphragm Lever type, range: from minimum ø3 mm to maximum ø44 mm
Slider insertion With phase slider pocket and built-in slider position click stop mechanism
Condenser Detachable ultra-long working distance condenser (N.A. 0.3, W.D. 72 mm)
Contrast slider Pre-centered phase contrast: 4X, 10X/20X/40X, empty slot
Centerable phase contrast: 4X, 10X/20X, empty slot (40X optional, pre-centered)
Centerable for Relief Contrast: 10X, 20X, 40X
Observation Binocular tube U-CBI30-2: inclined 30°, interpupillary distance range: 48-75 mm,
tube diopter adjustment by helicoid on left sleeve (F.N. 20)
U-BI30-2: inclined 30°, interpupillary distance range: 48-75 mm,
diopter adjustment by helicoid on left sleeve (F.N. 22)
Trinocular tube U-CTR30-2: inclined 30°, ring dovetail attachment,
interpupillary distance range: 48-75 mm, tube length
and diopter adjustment by helicoid on left sleeve
Observation optical path: 50(binocular)/50(video port) (F.N. 20)
U-TR30-2: inclined 30°, ring dovetail attachment,
interpupillary distance range: 48-75 mm, tube length
and diopter adjustment by helicoid on left sleeve
Observation optical path: 50(binocular)/50(video port) (F.N. 22)
Tilting binocular CKX-TBI: variable inclination angles from 30° to 60°,
tube interpupillary distance range: 50-76 mm,
diopter adjustment by helicoid on right sleeve (F.N. 20)
U-CTBI: variable inclination angles from 30° to 60°,
interpupillary distance range: 48-75 mm,
diopter adjustment by helicoid on right sleeve (F.N. 18)
U-TBI-3: variable inclination angles from 5° to 35°, circular
mounting dovetail attachment, interpupillary distance range:
50-76 mm, diopter adjustment by helicoid on right sleeve. (F.N. 22)
Fluorescent illuminator Detachable illuminator,
switchable slide (3-position: B excitation, G excitation, empty slot or U excitation)
FL light source 50 W Hg
FL light shutter Available
FL field stop Available
FL cubes 2 cubes (B & G), option U (cubes are not compatible with UIS2.
Filter and dichroic mirror size are same as UIS2)
Filter 1 filter
Eyepiece For U-CBI30-2/U-CTR30-2/CKX-TBI: WHB10X/WHB10X-H (F.N. 20)
For U-BI30-2/U-TR30-2/U-TBI-3: WHN10x/WHN10x-H/
CROSS WHN10x (F.N. 22)
For U-CTBI: (F.N. 18)
Power supply Continuous intensity adjustment,
built-in voltage changeover switch (100/120 V, 220/240 V), frequency 50/60 Hz
CKX41/CKX31 dimensions
364
370.5
237.6
515.5
Weight: approx. 8.8 kg Rated voltage: 85 VA
CKX41/CKX31 are the environmental conscious products according to
OLYMPUS' own standards.
Main features of OLYMPUS Eco-products are as follows.
• Lead-free and arsenic-free Eco-glass for optics, such as lenses and prisms.
• Exclusion of hexavalent chrome, mercury, lead and cadmium from metal materials and surface
treatment of metal.
• Exclusion of lead solders.
• Adoption of cardboard for packing materials without styrene foam for promoting the recycling.
* A definition of exclusion depends on OLYMPUS standard. Some accessories are inapplicable.
Please visit our web site for further information: http://www.olympus.co.jp/en/eco-products/
UIS2 objectives * 1 specifications
CKX31 Objective N.A. W.D.(mm) Remarks
PLCN4X 0.10 18.5
PLCN10X 0.25 10.6
LUCPLFLN20X 0.45 6.6-7.8
LUCPLFLN40X 0.60 2.7-4
UPLFLN4XPH 0.13 16.4 PHL (for use with IX2-SL)
CPLN10XPH 0.25 10 PHC (for use with IX2-SL)
PLCN10XPH 0.25 10.6 PH1 (for use with IX2-SL)
ø35 petri dish holder stage
CPLFLN10XPH 0.3 9.5 PHC (for use with IX2-SL)
incorporated
LCACHN20XPH 0.40 3.2 PHC (for use with IX2-SL)
LUCPLFLN20XPH 0.45 6.6-7.8 PH1 (for use with IX2-SL)
LCACHN40XPH 0.55 2.2 PH2 (for use with IX2-SL)
LUCPLFLN40XPH 0.6 3.0-4.2 PH2 (for use with IX2-SL)
UPLFLN4XPHP* 2 0.13 16.4 For use with IX2-SLP
CACHN10XPHP* 2 0.25 8.8 For use with IX2-SLP
LCACHN20XPHP* 0.40 3.2 For use with IX2-SLP
2
LCACHN40XPHP* 2 0.55 2.2 For use with IX2-SLP
CPLN10XRC 0.25 9.7 For use with CKX-RC
LCACHN20XRC 0.4 2.8 For use with CKX-RC
LCACHN40XRC 0.55 1.9 For use with CKX-RC
UPLFLN4X 0.13 17 U,B,G
Fixed binocular tube, inclined
UPLFLN10X2 0.3 10 U,B,G
45°, interpupillary distance range:
48-75 mm, diopter adjustment UPLFLN20X 0.5 2.1 U,B,G
by helicoid on right sleeve
LUCPLFLN20X 0.45 6.6-7.8 U,B,G
LUCPLFLN40X 0.6 2.7 - 4.0 U,B,G
* 1 Objective lenses are lead free.
* 2 Pre-centering objective
—
—
10X (F.N. 20)
364
370.5
237.6
486.6
Weight: approx. 8 kg Rated voltage: 85 VA
• OLYMPUS CORPORATION is ISO14001 certified.
• OLYMPUS CORPORATION is FM553994/ISO9001 certified.
• Illumination devices for microscope have suggested lifetimes.
Periodic inspections are required. Please visit our web site for details.
• Specifications and appearances are subject to change without any notice or obligation on the part of
the manufacturer.
Printed in Japan M1500E-0910B
A New Advance in Routine Inspections
(unit: mm)

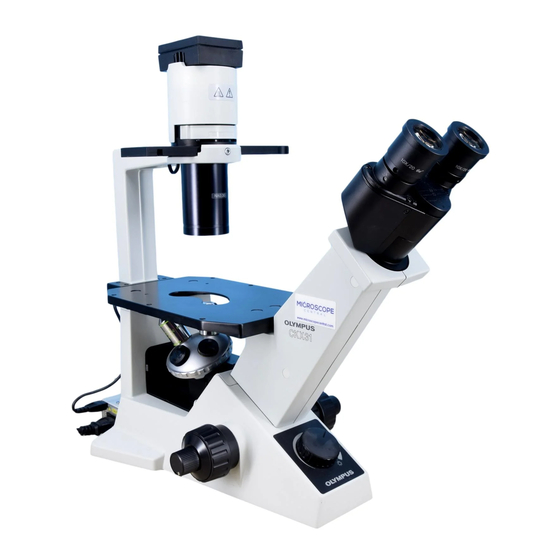

Inverted Microscope
CKX41/CKX31
