firmware updates:

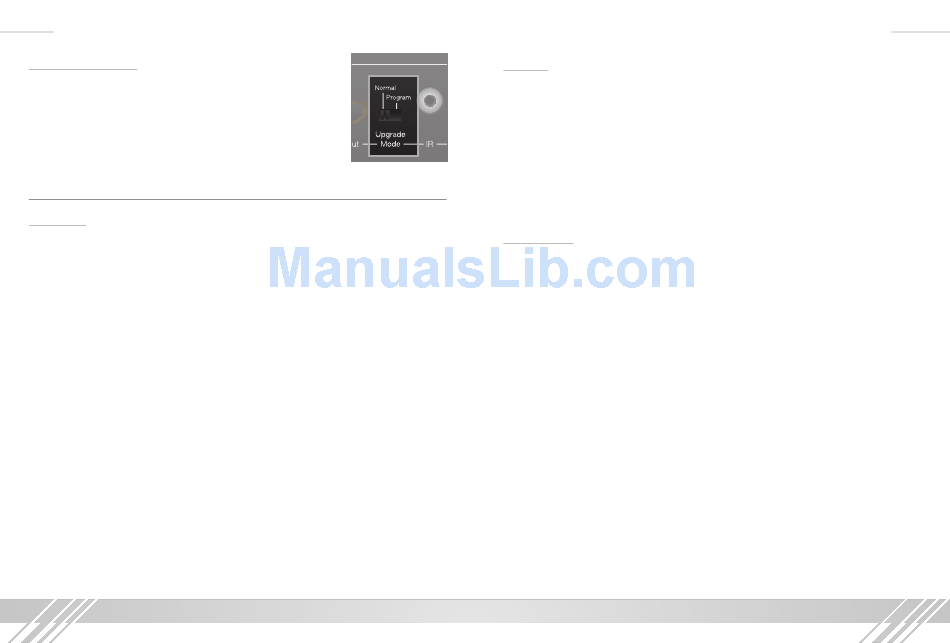

The KD-CATHD250Lite/POE Tx and Rx have an "Operation
Mode" switch. The 2 position slide switch is marked "normal"
and "Program". This switch should only be used in the
"Program" position when updating the unit's firmware. Be sure
the switch is in the "normal" mode for standard operation.

Specifications

Technical:
Inputs Tx (Each): (1) HDMI, (1) 3.5mm Stereo (as either input or output)
➔
Outputs Tx (Each): (1) CAT5e/6
➔
Inputs Rx (Each): (1) CAT5e/6
➔
Outputs Rx (Each): (1) HDMI, (1) 3.5mm Stereo (as either input or output)
➔
HDMI and HDCP Licensing: Fully licensed and compatible with all HDMI
®
➔
and HDCP techologies
Link and Range: 1080p/60, 1920x1200, 1080i/60, 720p, 1080p/24;
➔
up to 250 ft. when used with KD-CAT6STP1X cabling, up to 200 ft. when used
with CAT5e/6 cabling. 4K resolution up to 120'.
Lossless Compressed Digital Audio Support: Dolby
➔
and DTS -HD Master Audio
™
DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
➔
HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
➔
HDMI Connector: Type A, 19 Pin Female
➔
RJ45 Connector: Shielded Link Connector
➔
Control Extension Connector: 3.5mm Stereo Jack
➔
I2C Communication: EDID and HDCP bi-directional transparency
➔
from Display to Source
CEC Support: To the main input and output HDMI channel.
➔
TrueHD, Dolby Digital Plus
® ®
general
Regulation: CE, RoHS, WEEE
➔
Enclosure: Black Metal
➔
Product Dimensions (Each): L = 6" W = 4.1" H = 1.2"
➔
Shipping Carton Dimensions: L = 7.48" W = 6.54" H = 5.2"
➔
Product Weight (Each): 1 lb
➔
Shipping Weight: 3 lbs
➔
Power: UL Certified Power Supply – 5V / 2A, 110-240 VAC, 50-60 Hz
➔
Power Consumption: Tx - 2.5 Watts, Rx - 5 Watts
➔
Accessories
(2) 5V 2A DC Power Supply (KD-CATHD250Lite)
➔
» KD-CATHD250Lite requires power on both Tx and Rx units
(1) 12V 2A (KD-CATHD250POE)
➔
» KD-CATHD250POE only requires power on the Tx units,
which extends power to the Rx unit
(2) Mounting Brackets
➔
(2) Locking HDMI Cable Clips
➔
(1) Grounding Wire
➔
