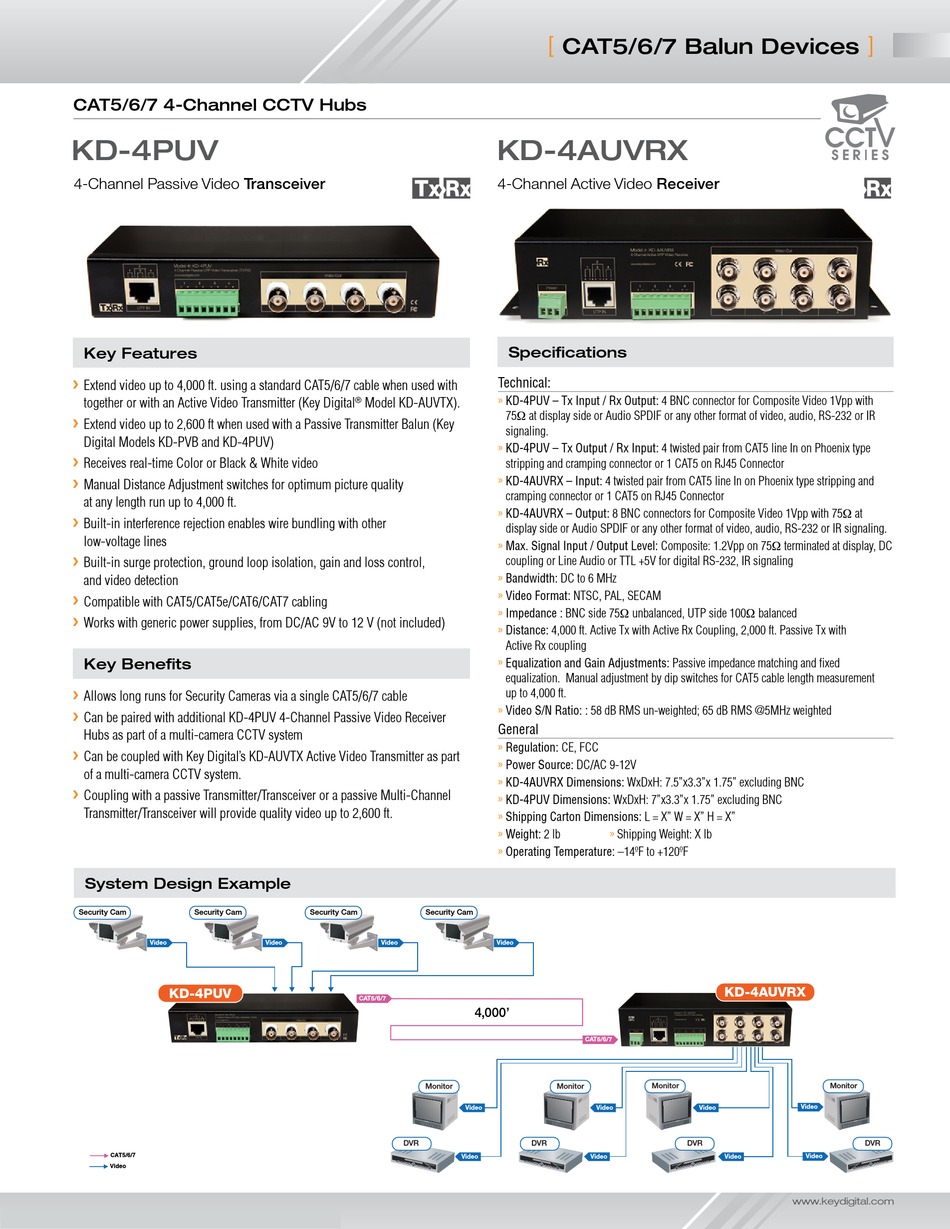

Key Digital KD-4PUV Specifications

CAT5/6/7 4-Channel CCTV Hubs
KD-4PUV
4-Channel Passive Video Transceiver

Key Features

Extend video up to 4,000 ft. using a standard CAT5/6/7 cable when used with
½
together or with an Active Video Transmitter (Key Digital
Extend video up to 2,600 ft when used with a Passive Transmitter Balun (Key
½
Digital Models KD-PVB and KD-4PUV)
Receives real-time Color or Black & White video
½
Manual Distance Adjustment switches for optimum picture quality
½
at any length run up to 4,000 ft.
Built-in interference rejection enables wire bundling with other
½
low-voltage lines
Built-in surge protection, ground loop isolation, gain and loss control,
½
and video detection
Compatible with CAT5/CAT5e/CAT6/CAT7 cabling
½
Works with generic power supplies, from DC/AC 9V to 12 V (not included)
½

Key Benefits

Allows long runs for Security Cameras via a single CAT5/6/7 cable
½
Can be paired with additional KD-4PUV 4-Channel Passive Video Receiver
½
Hubs as part of a multi-camera CCTV system
Can be coupled with Key Digital's KD-AUVTX Active Video Transmitter as part
½
of a multi-camera CCTV system.
Coupling with a passive Transmitter/Transceiver or a passive Multi-Channel
½
Transmitter/Transceiver will provide quality video up to 2,600 ft.
System Design Example
Security Cam Security Cam
Video
KD-4PUV
CAT5/6/7
Video
Model KD-AUVTX).
®
Security Cam Security Cam
Video Video
CAT5/6/7
Monitor
DVR
[
CAT5/6/7 Balun Devices
KD-4AUVRX
4-Channel Active Video Receiver

Specifications

Technical:
»
KD-4PUV – Tx Input / Rx Output: 4 BNC connector for Composite Video 1Vpp with
75Ω at display side or Audio SPDIF or any other format of video, audio, RS-232 or IR
signaling.
» KD-4PUV – Tx Output / Rx Input: 4 twisted pair from CAT5 line In on Phoenix type
stripping and cramping connector or 1 CAT5 on RJ45 Connector
»
KD-4AUVRX – Input: 4 twisted pair from CAT5 line In on Phoenix type stripping and
cramping connector or 1 CAT5 on RJ45 Connector
» KD-4AUVRX – Output: 8 BNC connectors for Composite Video 1Vpp with 75Ω at
display side or Audio SPDIF or any other format of video, audio, RS-232 or IR signaling.
»
Max. Signal Input / Output Level: Composite: 1.2Vpp on 75Ω terminated at display, DC
coupling or Line Audio or TTL +5V for digital RS-232, IR signaling
» Bandwidth: DC to 6 MHz
»
Video Format: NTSC, PAL, SECAM
» Impedance : BNC side 75Ω unbalanced, UTP side 100Ω balanced
» Distance: 4,000 ft. Active Tx with Active Rx Coupling, 2,000 ft. Passive Tx with
Active Rx coupling
» Equalization and Gain Adjustments: Passive impedance matching and fixed
equalization. Manual adjustment by dip switches for CAT5 cable length measurement
up to 4,000 ft.
» Video S/N Ratio: : 58 dB RMS un-weighted; 65 dB RMS @5MHz weighted
General
» Regulation: CE, FCC
»
Power Source: DC/AC 9-12V
» KD-4AUVRX Dimensions: WxDxH: 7.5"x3.3"x 1.75" excluding BNC
»
KD-4PUV Dimensions: WxDxH: 7"x3.3"x 1.75" excluding BNC
» Shipping Carton Dimensions: L = X" W = X" H = X"
» Weight: 2 lb »
Shipping Weight: X lb
»
Operating Temperature: –14ºF to +120ºF
Video
4,000'
CAT5/6/7
Monitor
Video Video
DVR
Video Video
KD-4AUVRX
Monitor Monitor
Video
Video
DVR
Video Video
