3Com WL-550 User Manual page 77

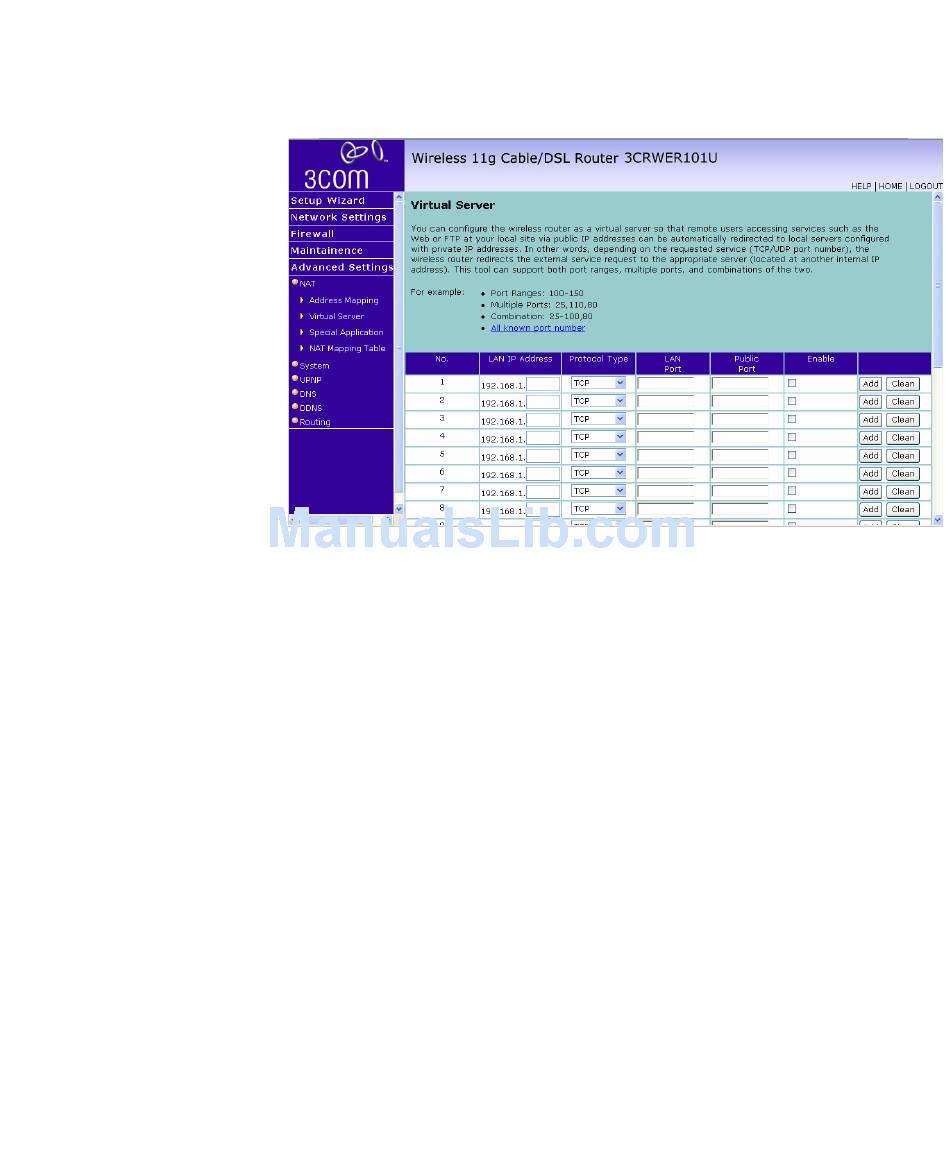

Figure 54 Virtual Servers Screen
A list of popular servers has been included to choose from. Select the
server from the Popular servers drop-down menu. Then click Add, your
selection will be added to the table.
If the server that you want to use is not listed in the drop-down menu,
you can manually add the virtual server to the table.
To manually configure your virtual servers:
1 Enter the IP address, and the description in the spaces provided for the
internal machine.
2 Select the protocol type (TCP, UDP, or both TCP and UDP) from the
drop-down menu.
3 Specify the public port that will be seen by clients on the Internet, and the
LAN port which the traffic will be routed to.
4 You can enable or disable each Virtual Server entry by by checking or
unchecking the appropriate Enable checkbox.
5 Click Add or Clean button to save the changes for each Virtual Server
entry.
Advanced Settings 75
