LAN Settings
The LAN Settings screen is used to specify the LAN IP address of your
Router, and to configure the DHCP server.

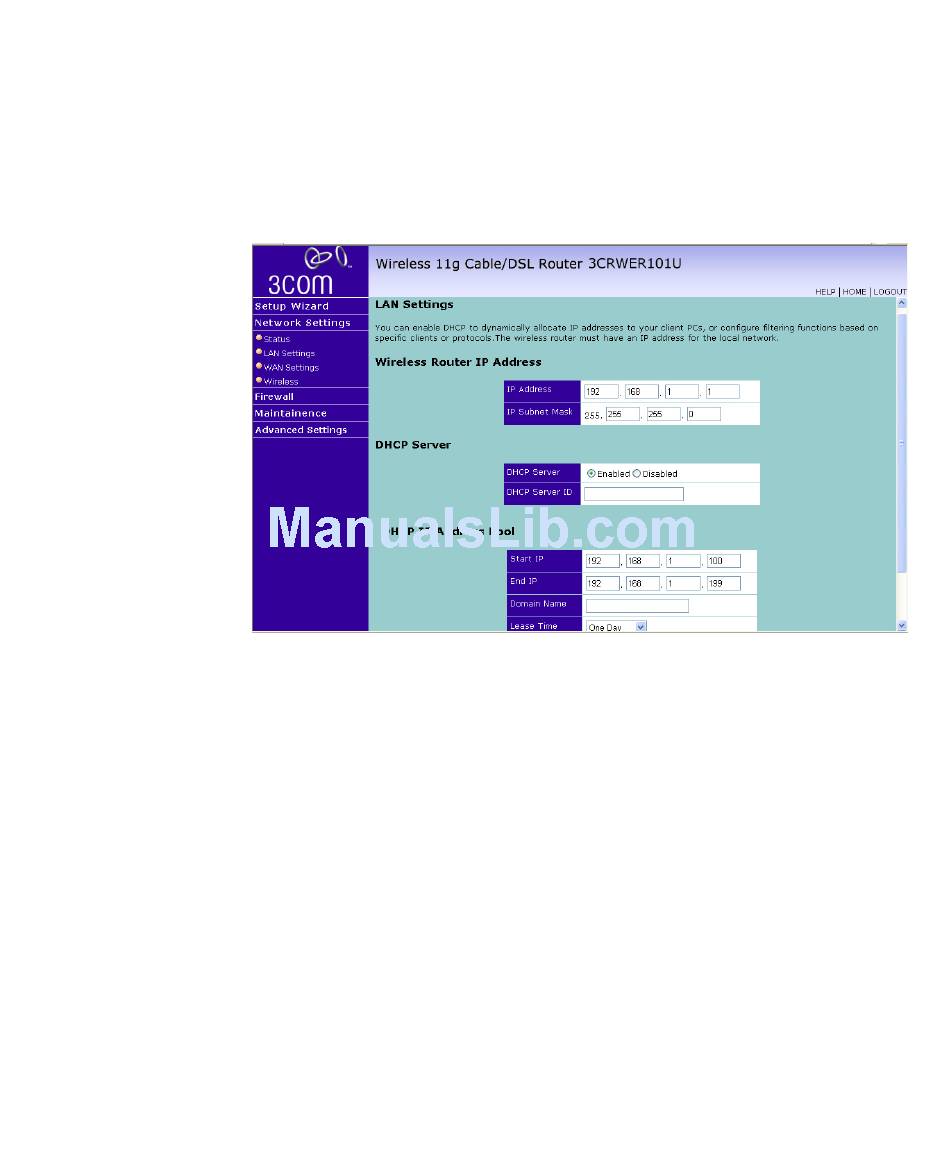

Figure 26 LAN Settings Screen
1 Enter the Router's IP Address and Subnet Mask in the appropriate fields.
The default IP address is 192.168.1.1.
2 If you want to use the Router as a DHCP Server, select Enabled in the
DHCP Server field.
3 Enter the IP address range of Start IP and End IP in the IP Address Pool
fields.
4 Specify the Local Domain Name for your network (this step is optional).
5 Specify the DHCP Lease time by selecting the required value from the
Lease Time drop-down menu. The lease time is the length of time the
DHCP server will reserve the IP address for each computer.
6 Check all of your settings, and then click SAVE SETTINGS.
