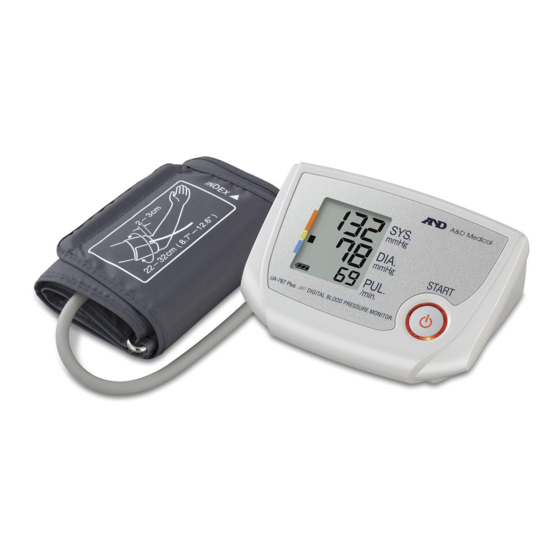

  • Page 1 Digital Blood Pressure Monitor Model UA-767 Instruction Manual Original Manuel d’instructions Traduction Manual de Instrucciones Traducción Manuale di Istruzioni Traduzione 使用手冊 翻譯 1WMPD4000561D...
  • Page 2: Table Of Contents

    Contents Dear Customers ................1 Precautions ................. 2 Preliminary Remarks..............1 Parts Identification ..............3 Symbols ..................4 Using the Monitor................ 5 Installing / Changing the Batteries.......... 5 Connecting the Air Hose............5 Connecting the AC Adapter ............ 5 Selecting the Correct Cuff Size ..........6 Applying the Arm Cuff............
  • Page 3: Precautions

    Precautions Precision components are used in the construction of this device. Extremes in temperature, humidity, direct sunlight, shock or dust should be avoided. Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the device or cuff.
  • Page 4: Parts Identification

    Parts Identification DC Jack START button Display Air Connector Plug Air Hose Air Socket Proper Fit Range Artery Position Mark Index Mark Arm Cuff Battery Cover Battery Compartment 1.5V Batteries (R6P, LR6 or AA) MEMORY Systolic Pressure Part of Display Diastolic Pressure Pressure Bar Indicator Pulse Rate...
  • Page 5: Symbols

    Symbols Symbols Function / Meaning Recommended Action Standby and Turn the device on. Battery installation guide Direct current Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks. Measurement is in The indicator that appears while progress.
  • Page 6: Using The Monitor

    Using the Monitor Installing / Changing the Batteries Step 1 Slide the battery cover up to open it. Step 3 Remove the used batteries and insert new batteries into the battery compartment as shown, taking care that the polarities (+) and (-) are correct. Step 2 Use only R6P, LR6 or AA batteries.
  • Page 7: Selecting The Correct Cuff Size

    Using the Monitor Selecting the Correct Cuff Size Using the correct cuff size is important for an accurate reading. If the cuff is not the proper size, the reading may yield an incorrect blood pressure value. The arm size is printed on each cuff. The index and proper fit range, on the cuff, tell you if you are applying the correct cuff.
  • Page 8: Applying The Arm Cuff

    Using the Monitor Applying the Arm Cuff Do not roll up shirtsleeve tightly 1. Wrap the cuff around the upper arm, about 1-2 cm above the inside of the Cuff elbow, as shown. 1 to 2 cm Place the cuff directly against the skin, as clothing may cause a faint pulse, and result in a measurement error.
  • Page 9: Measurements

    Measurements Model UA-767 is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. If your systolic pressure is expected to exceed 230 mmHg or you use the optional small cuff, read "Measurement with the desired systolic pressure"...
  • Page 10: Measurement With The Desired Systolic Pressure

    Measurements Measurement with the Desired Systolic Pressure If your systolic pressure is expected to exceed 230 mmHg or you use the optional small cuff, use this procedure. Place the cuff on the arm (preferably the left arm). At heart level Press and hold the START button...
  • Page 11: What Is An Irregular Heartbeat

    What is an Irregular Heartbeat Model UA-767 blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. It is important that you be relaxed, remain still and do not talk during measurements.
  • Page 12: About Blood Pressure

    About Blood Pressure What is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg).
  • Page 13: Troubleshooting

    readings give a more comprehensive blood pressure history. Be sure to note date and time when recording your blood pressure. Consult your doctor to interpret your blood pressure data. Troubleshooting Problem Possible Reason Recommended Action Replace all batteries with new Nothing Batteries are drained.
  • Page 14: Maintenance

    Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, request service from your dealer or from the A&D service group. The A&D service group will provide technical information, spare parts and units to authorized dealers.
  • Page 15 Accessory AC adapter The adapter is to connect the blood pressure monitor to a power source at home. TB-233 Please contact your local A&D dealer for purchasing. The AC adapter is required to be inspected or replaced periodically. TB-233C Input: 100-240V Output: 6V 500mA 139°C...
  • Page 16 Asahi 1-243, Kitamoto-shi, Saitama 364-8585, JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131, U.S.A.
