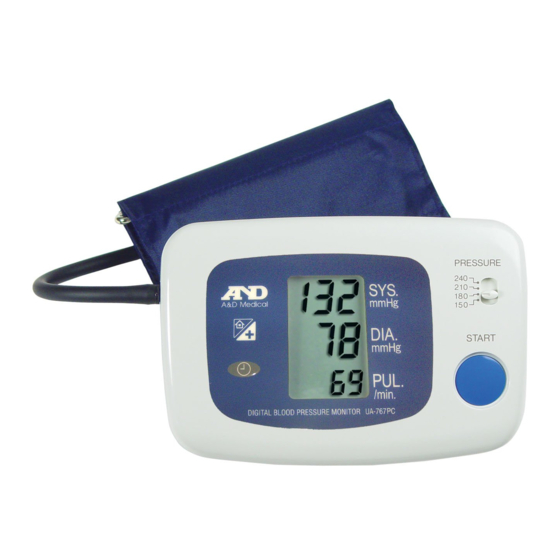

- Page 1 Digital Blood Pressure Monitor UA-767PC Instruction Manual 1WMPD4000034E...
-
Page 2: Table Of Contents
Contents Dear Customers .....................3 Preliminary Remarks ....................3 Precautions......................3 Parts Identification ....................4 Symbols........................5 Setting the Clock ....................6 Preparation for Measurements ................7 Installing / Changing the Batteries ...............7 Connecting the Air Hose ................7 Attaching the Arm Cuff.................7 How To Take Proper Measurements ............7 Measurement....................7 After the Measurement ................7 Measurements......................8... -
Page 3: Dear Customers
Dear Customers Congratulations on purchasing a state-of-the-art A&D blood pressure monitor, one of the most advanced monitors available today. Designed for ease of use and accuracy, this monitor will facilitate your daily blood pressure regimen. We recommend that you read through this manual carefully before using the device for the first time. -
Page 4: Parts Identification
Parts Identification Data Port Systolic Display Air Socket Pressure Switch Measurement Diastolic Display in Progress Clock Button Start Button Memory Access Indicator Pulse Display Low Battery Display Clock Display Air Connector Plug Arm Cuff Air Hose 1.5V Batteries (R6P, LR6 or AA) -
Page 5: Symbols
Symbols Symbols Function / Meaning Treatment Turns on or off the device Sets the clock / Does not store the current data Direction guide to install battery Direct current Serial number Date of manufacture Type BF: Device, cuff and tubing are designed to provide special protection against electric shocks. -
Page 6: Setting The Clock
Setting the Clock The UA-767PC blood pressure monitor is equipped with a date and time function. To set the clock on the monitor, follow these steps: Press the clock button on the front of the monitor. The blinking digits reflect the year. If they are not currently set on the correct year, press the START button to advance to the correct year. -
Page 7: Preparation For Measurements
Preparation for Measurements 1. Installing / Changing the Batteries Remove the battery cover and insert new batteries into the battery compartment as shown, taking care to observe the proper direction for each battery. Use R6P, LR6 or similar type batteries. If the symbol appears on the display panel, this means that the batteries are depleted. -
Page 8: Measurements
Measurements 1. Place the cuff on the arm (preferably the left arm). 2. Set the PRESSURE switch to a value that will be 30 to 40 mmHg above the expected systolic value and press the START button. When the START button is pressed, all of the display symbols will appear for about one second. - Page 9 Measurements Remain still while the device is in operation. When a measurement is made with insufficient pressure, the device will pump again to a higher pressure. 4. When measurement has been completed, the buzzer sounds and the air is automatically released from the cuff. The systolic pressure, diastolic pressure readings, and the pulse rate are displayed.
-
Page 10: Notes For Proper Measurements
Measurements Accurate measurement cannot be made if the exhaust velocity is outside the range of 2 to 5 mmHg. This can be determined by watching the display each time the "Measurement in Progress" symbol blinks. Note the reading as the "Measurement in Progress" symbol blinks. Notes for Proper Measurements Sit in a comfortable position where you can place the arm to be used for the measurement on a table or other support that will place the center of the upper... -
Page 11: Data In Memory
Data in Memory Storing Data in Memory This device can automatically store up to 280 sets of measurement data in its memory. If an error message appears, the measurement data will not be stored. Whether the data will be stored or not after the measurement can be selected as follows: When the START button is pressed or the automatic power OFF function works after a measurement, the measurement data will be stored in memory. -
Page 12: Transmitting Readings To A Computer
“-“ appears one after another in succession and permission will be given to perform various functions. Measurement data of the UA-767PC can be monitored with “Monitor Pro” Data Analysis Software (UA-767P-13) and Printer terminal (TM-2480 series). For details, refer to the instruction manual. -
Page 13: About Blood Pressure
About Blood Pressure What Is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg). One's natural blood pressure is represented by the fundamental pressure, which is measured first thing in the morning while one is still at rest and before eating. -
Page 14: Troubleshooting
when recording your blood pressure. Consult your doctor to interpret your blood pressure data. Troubleshooting Problem Possible Reason Recommended Action Nothing appears Batteries are drained. Replace all batteries with new ones. in the display, Reinstall the batteries with negative even when the Battery terminals are not and positive terminals matching power is turned... -
Page 15: Maintenance
2 years, to ensure proper functioning and accuracy. Please contact either your authorized dealer or A&D for maintenance. Technical Data Type UA-767PC Measurement method Oscillometric measurement Measurement range Pressure: 20 - 280 mmHg Pulse:... - Page 16 A&D Co.,Ltd. 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, CA. 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LTD. <Authorized Representative Established in the European Community> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxon OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485...
