Addonics
T E C H N O L O G I E S

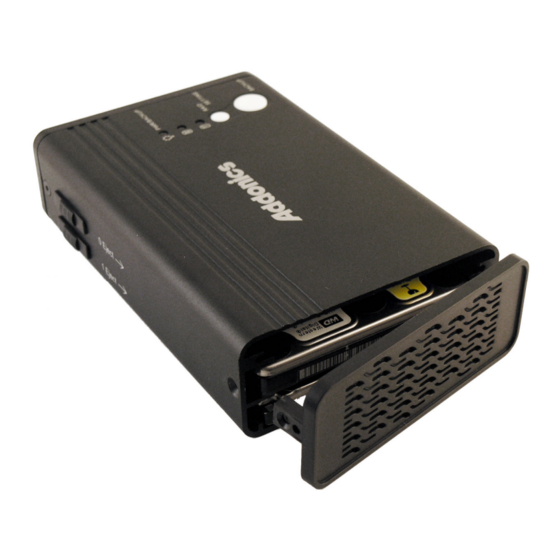

Portable Dual Drive RAID Enclosure
Model: AE25RDESU
User's Guide
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital
device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try and correct the interference by one or more of the following
suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is
connected
Consult a certified television or radio technician

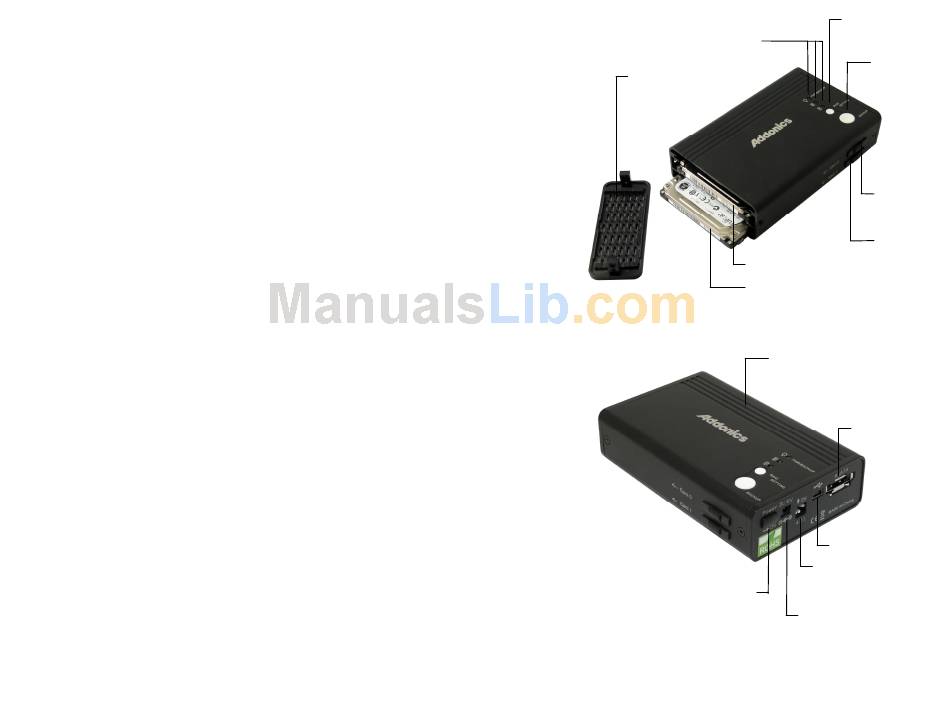

Enclosure Overview
Power and individual drive activity LED
Removable front door
with ventilation holes
Power switch
RAID Setting
button
Backup
Eject for
Drive 1
Eject for
Drive 2
Drive bay 1
Drive bay 2
Sturdy and heat resistant
aluminum enclosure
eSATA 3Gbps
connection
USB2.0 connection
RAID selection switch
Power connector for
5V power adapter
(AAPAC5V)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Addonics Technologies AE25RDESU
Summary of Contents for Addonics Technologies AE25RDESU
- Page 1 Addonics T E C H N O L O G I E S Portable Dual Drive RAID Enclosure Model: AE25RDESU User’s Guide FCC Warning Statement This equipment has been tested and found to comply with the limits for a class B digital device pursuant to Part 15 of the FCC rules.
- Page 2 Installation Guide 1. To remove the front door of the enclosure, loosen screws on each side. 2. Detach the front door of the enclosure. 3. Slide the 2.5’’ SATA hard disk into the drive bay. 4. Make sure that the SATA drives are seated correctly on the SATA connectors of the enclosure.
- Page 3 How to Configure Raid Raid Setting Table RAID Selection Switch Display RAID Status BIG (span) JBOD (single) FAST (strip) SAFE (mirror) SAFE33 SAFE50 RESERVED GUI ONLY How to Build Raid JBOD a. Setup Raid mode JBOD using RAID selection switch JBOD (single) b.
- Page 4 g. Select “Disk Management” . h. Disk Management shows the hard disks that are “Unallocated” i. Place cursor on Disk 1, do a right click then select “Initialize Disk ” j. Press ”OK” k. Refer to steps i & j to initialize Disk 2...
- Page 5 l. Hard disks will become “Online” m. Place cursor on Unallocated portion and select “New Partition” n. Choose ”Next” o. Choose ”Next” again. p. Set up partition size and click “Next” q. Tick “Quick format” and click ”Next”...
- Page 6 r. Click ”Finish” s. Disk Management shows system is “Formatting” t. When format is finish , it shows the drive as “Healthy” u. Format the other hard disk by referring to steps m ~ r. v. When the drive has been formatted, “My Computer” will show two Physical hard disks...
- Page 7 How to build Raid : BIG(Span) Set the DIP switch as above and Refer to Step b ~ v to build the Raid BIG(Span) mode. This time you can see only 1 hard disk only(see following two pictures.) BIG (span) How to build Raid : SAFE50 Set the DIP switch as following and Refer to Step b ~ v to build the Raid SAFE50 mode.
-
Page 8: Technical Support
OPERATING SYSTEM – What version of Windows WHAT’S THE TROUBLE? – Give enough information about your problem so that we can recreate and diagnose it. FREE Software Drivers for all Addonics Technologies Products are available 24 hours per day at the World Wide Web Site: www.addonics.com...
