T E C H N O L O G I E S
User Guide

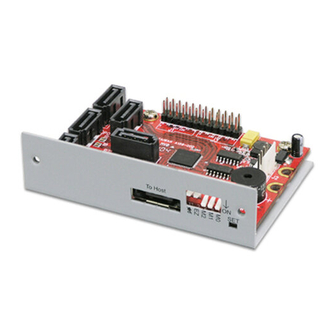

5-Port HPM-XA Enclosure Version
(AD5HPMRXA-E)
www.addonics.com
v5.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Addonics Technologies AD5HPMRXA-E
Summary of Contents for Addonics Technologies AD5HPMRXA-E

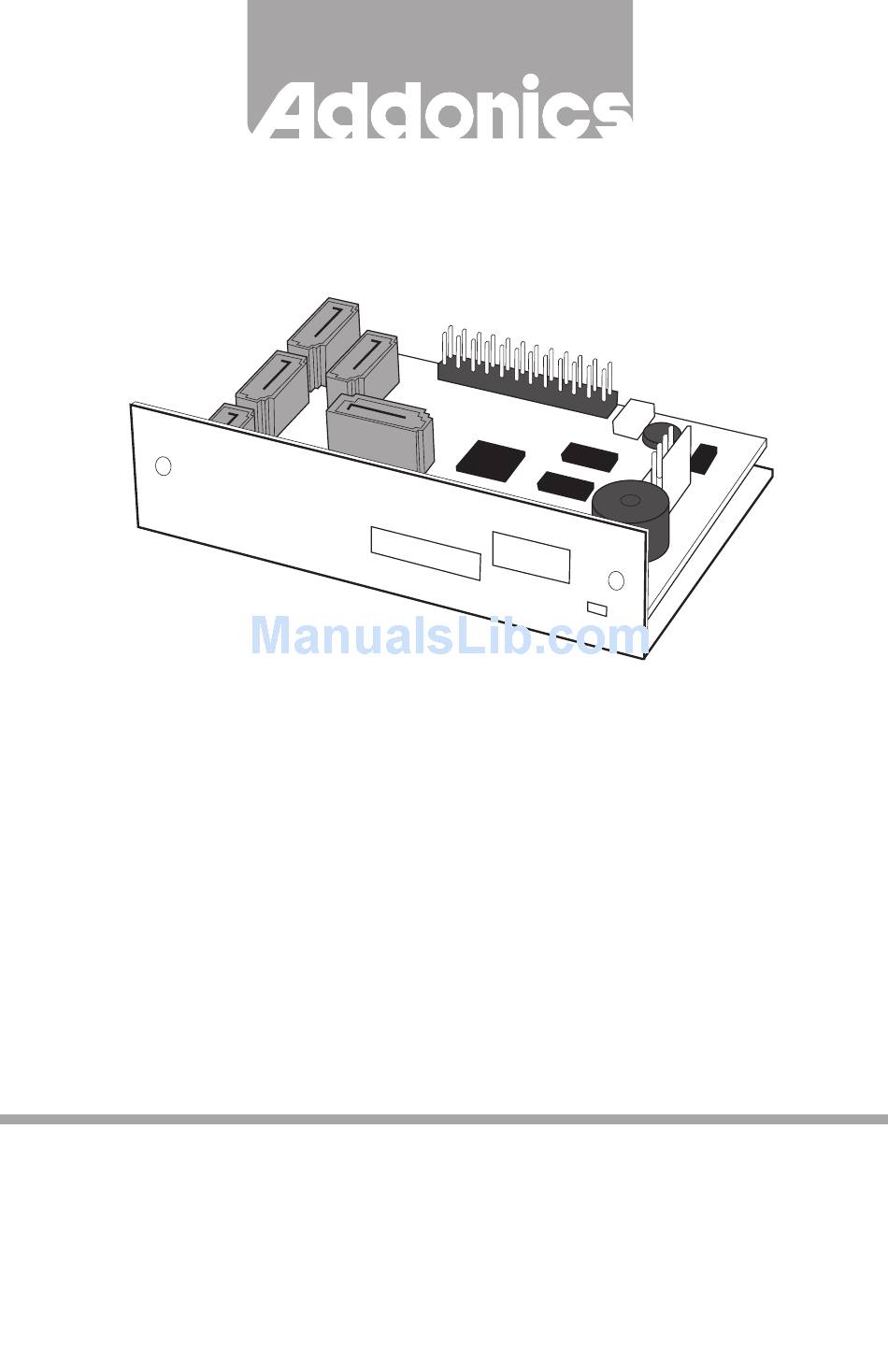

- Page 1 T E C H N O L O G I E S User Guide 5-Port HPM-XA Enclosure Version (AD5HPMRXA-E) www.addonics.com v5.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
- Page 2 SATA Port 2 Drive activity LED Jumper Block (J1) SATA Port 4 Error LED Jumper Block (J3) SATA Port 3 Floppy Power SATA Port 0 Connector SATA Port 1 eSATA Host Port (Port 5) Dip Switch RAID Setting Button Dip Switch Settings Raid Mode Individual Drive (Factory Default)
- Page 3 Default factory DIP Switch setting: SW1 – RAID Setting DIP Switch BZS – Error buzzer function EZ – Automatic rebuilding to spare drive (one of the drives on the raid is set as a spare). If EZ is ENABLED anda drive failure occurs, the spare will automatically act as a drive replacement and rebuilding will automatically start.
-
Page 4: Cable Connections
Note: When the default factory RAID setting is used, independent drive configuration and optical drive are supported only when connecting to controllers with Silicon Image Sil3124, Sil3132 chip set or controllers that are Port Multiplier (PM) compatible. Simultaneous DVD writing was tested using the Nero Burning Rom. LED Pin Header P4 P3 P2 P1 P0 P5 P4 P3 P2 P1 P0 P5... - Page 5 Setting or Modifying the RAID Mode Using the JMicron HW RAID Manager Utility Program: For Windows users, install the JMicron HW RAID Manager located on the SATA Controller CD. In the CD, go to Configuration Utilities > JMB393. This manager can be use to create and monitor the status of the RAID volume. It is recommended to use the default factory RAID DIP switch setting when using the JMicron HW RAID Manager.
- Page 6 On the DIP switch, change (M0 to M2) setting to the desired RAID mode using the diagram below. All settings on the diagram shows • Error buzzer function is ENABLED • EZ function is DISABLED. RAID 0 Mode Clone Mode BZS EZ M2 M1 M0 BZS EZ M2 M1 M0 RAID 1&...
- Page 7 RAID Setting Notes: When 2 drives are RAID 1& RAID 10 Mode connected to the HPM-XA, and DIP switch is set to this setting, the 2 drives will be configured as a 2-drive RAID1 array. BZS EZ M2 M1 M0 When 4 drives are connected to the HPM-XA, the 4 drives will be configured as a 4-drive RAID10 array.
- Page 8 Notes on Spare Drives using the Easy RAID Setting (EZ) When EZ function is ENABLED, the auto-rebuilding to spare drive is automatic. The degraded RAID group will start rebuilding automatically by using the existing spare drive. * Spare drive can be either plugged before RAID building or a new drive can be plug as the spare drive when RAID rebuild is required.
