CONTENTS
SAFETY ������������������������������������������ 14
Fundamental safety warnings ..........................14
DESIGNATED USE ������������������������������ 15
DESCRIPTION OF THE APPLIANCE ���������� 16
Accessories ......................................................16
Control panel ...................................................16
"Professional" iron ...........................................16
"Domestic" iron ...............................................16
PREPARATIONS FOR USE ��������������������� 16
What water to use ............................................16
Setting water hardness ....................................16
Filling the tank ..................................................17
OPERATION ������������������������������������� 17
Steam ironing ..................................................17
Using the "professional" iron ...........................17
Using the "domestic" iron ..............................18
Adjusting the thermostat ..................................18
Steam regulator ...............................................18
Topping up the tank with water ........................18
Dry ironing .......................................................18
MAINTENANCE ��������������������������������� 19
Limescale filter maintenance ............................19
Rinsing the steam generator ............................19
CLEANING ��������������������������������������� 19
AFTER IRONING �������������������������������� 19
IRONING TIPS ���������������������������������� 20
DISPOSAL ��������������������������������������� 20
CONTACTING CUSTOMER SERVICESS ������ 21
SAFETY
Fundamental safety warnings
Danger!
This is an electrical appliance and may cause
electric shock.
You should therefore respect the following sa-
fety warnings:
• Never touch the appliance with damp han-
ds.
• Never use the appliance with bare or wet
feet.
• Never immerse the appliance in water.
• Never unplug the appliance by pulling the
power cable or the appliance itself.
• If the socket and power cable plug are incom-
patible, the socket should be changed for a
suitable type by a qualified professional only
who should ensure that the cross-section of
the wires leading to the socket is suitable for
the power absorbed by the appliance.
• To add water, turn the ironing system off
using the switch, then unplug from the
mains. Never fill the appliance under running
water.
• Always unplug the appliance from the mains
socket before filling the tank with water.
• If the power cable is damaged, it must be re-
placed by the manufacturer or the manufac-
turer's Customer Services in order to avoid
all risk.
• Adapters, multiple sockets and/or exten-
sions should not be used. If their use is ne-
cessary, only adapters, multiple sockets and
extensions complying with current safety
standards and regulations should be used,
taking care not to exceed the power limit in-
dicated on the adapter.
• The safety of this appliance is guaranteed
only if correctly connected to a proper and
effective earth connection as specified by
current electrical safety standards and re-
gulations. This fundamental safety requisite
should be verified. If in doubt, ask a quali-
fied electrician to check the mains system
thoroughly. Failure to earth the appliance
absolves the manufacturer of all liability for
damage.
• When the appliance is to be discarded, after
14
Advertisement
Table of Contents

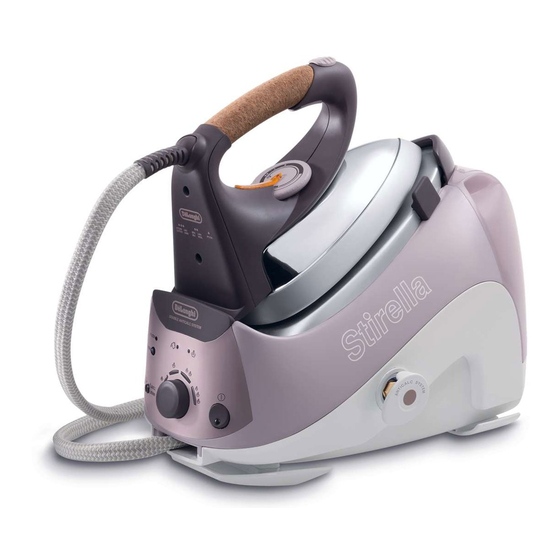

Related Manuals for DeLonghi PRO 1860X
Summary of Contents for DeLonghi PRO 1860X
-
Page 1: Table Of Contents
CONTENTS SAFETY SAFETY ������������������������������������������ 14 Fundamental safety warnings Fundamental safety warnings ......14 DESIGNATED USE ������������������������������ 15 Danger! This is an electrical appliance and may cause DESCRIPTION OF THE APPLIANCE ���������� 16 electric shock. Accessories ............16 You should therefore respect the following sa- Control panel ...........16 fety warnings: “Professional”... -
Page 2: Designated Use
unplugging from the mains, the lead should • When placing the iron on the iron rest, make be cut as close as possible to the iron to sure the appliance is resting on a stable sur- make the appliance unusable. face. • Before cleaning or servicing, disconnect the • Use the iron rest ONLY. If it is damaged, use appliance by unplugging from the mains. an original replacement only. • In the event of malfunction and/or faulty • The appliance must be used and rested on a operation, switch off the appliance and take stable surface. it to Customer Services. • Do not use the appliance if it has been drop- • Before using the appliance, check that the ped and there are visible signs of damage mains supply voltage corresponds to the... -
Page 3: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE PREPARATIONS FOR USE (see page 3) What water to use A Water tank door The appliance works with normal tap water. B Water tank filter C Removable water tank Important! D Regenerable limescale filter Never use other types of water, chemical sub- Limescale filter retainer lever stances or detergents (e.g. perfumed water, es- F Hook for steam/cable tube and protective sences, water softener, etc). -
Page 4: Filling The Tank
to your water hardness: generator is empty. When filling the steam ge- nerator for the first time, the heating up time will Soft Medium be longer as the air must be eliminated from the steam generator and replaced by the water. During filling/heating it is normal for the pump to make a noise. The appliance will also run out of water much Medium-hard Very hard more quickly than with subsequent fills. OPERATION Steam ironing Filling the tank • Press the (iron on) button Q and the (steam generator on) button R. The lights on Danger! the corresponding buttons come on. -
Page 5: Using The "Domestic" Iron
the whole plate. You can choose between Important! the two functions simply by changing the Never move or lift the appliance using the iron as position of the selector (fig. 6). a carrying handle. • The iron can be rested in an upright position (fig. 7). However, make sure the surface is Adjusting the thermostat flat to avoid the iron falling over. Turn the thermostat knob to set the most suitable temperature for the Using the “domestic” iron type of fabric to be ironed. • After turning the appliance on as described For steam ironing, the temperature above, wait for the “steam ready” light Y to must be within the steam sector... -
Page 6: Maintenance
ironed and wait for the “iron at temperature” ry 10 ironing sessions. Proceed as follows: light to go off. • Make sure the appliance is turned off, un- plugged from the mains and completely MAINTENANCE cold. • Turn the protective cap F on the side of the Limescale filter maintenance appliance clockwise and remove it (fig. 12). -
Page 7: Ironing Tips
DISPOSAL Place the iron on the iron rest (in the secured position for models with domestic iron) and wait Important information for correct disposal of the product in accordance with EC Di- for the system to cool down before putting it rective 2002/96/EC. away. Important information for correct disposal of To put the appliance away tidily, fix the steam/ca- the product in accordance with EC Directive ble tube to the hook F and wind the power cable 2002/96/EC. -
Page 8: Problems Resolvable Without Contacting Customer Servicess
PROBLEMS RESOLVABLE WITHOUT CONTACTING CUSTOMER SERVICESS PROBLEM CAUSE REMEDY The appliance does not come • The appliance is not plugged into a • Make sure the appliance is correctly mains socket. connected and press the iron and steam generator ON buttons. Steam leaks from behind the • The maximum pressure safety • Turn the appliance off immediately system has tripped. and contact an authorised tank.
