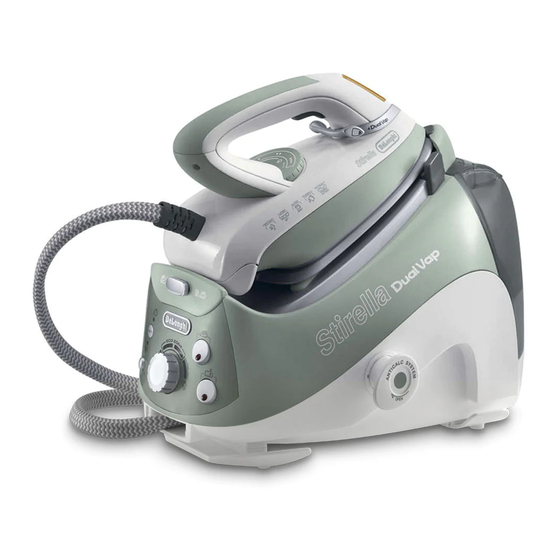

DeLonghi Stirella VVX1885 DualVap Manual

Description
A Water tank door
B Water tank filter
C
Tank release lever
D
Removable water tank
E Regenerable limescale filter
F Limescale filter retainer lever
G Hook for steam/cable tube and protective cap for limesca-
le prevention system
H
Iron rest
I
Cable tidy
Description accessories
J Indicator paper to determine water hardness (Total
Hardness test)
K
Limescale filter holder
L
Sachet of citric acid granules
M Mobile iron rest
Description of iron
N
Iron at temperature light
O
Continuous steam lock (if fitted)
P
Steam button
Q Thermostat dial
R
Steam selector (tip or whole plate)
Description of the control panel
S Safe Transport" iron lock/release
*
T
"No water" light
U "OK" button: confirms filling of the tank (if held down for
at least 5 seconds, confirms filter regeneration or steam
generator cleaning)
V
Filter light
W Water hardness regulator
X Steam regulation lights
Y Steam regulation dial
Z Steam generator on button
Z1 Iron on button
*
Important:
• When the water in the tank has run out, the pump beco-
mes noisier.
This is part of normal operation and is not a cause for con-
cern. However, you are recommended to top up the
water in the tank immediately.
• When the "no water" light comes on, you should top up
the water in the tank as rapidly as possible. This will ena-
ble you to continue ironing after a short interruption
• When the "no water" light comes on, you should not
continue steam ironing with the pump vibrating.
Description - Important safeguards
11
If this practice is continued, in the long run it could
irreparably damage internal components.
Fundamental safety warnings
Danger of electric shock!
This is an electrical appliance and may cause electric shock.
You should therefore respect the following safety warnings:
• Never touch the appliance with damp hands.
• Never use the appliance with bare or wet feet.
• Never immerse the appliance in water.
• Never unplug the appliance by pulling the power cable or
the appliance itself.
• If the socket and power cable plug are incompatible, the
socket should be changed for a suitable type by a quali-
fied professional.
Adapters, multiple sockets or extensions should not be used.
• To fill or top up with water, turn the ironing system off
using the switch, then unplug from the mains. Never fill
the appliance under running water.
• Always unplug the appliance from the mains socket befo-
re filling the tank with water.
• If the power cable is damaged, it must be replaced by the
manufacturer or the manufacturer's Customer Services in
order to avoid all risk.
• Before cleaning or servicing, disconnect the appliance by
unplugging from the mains.
• In the event of malfunction and/or faulty operation,
switch off the appliance and take it to Customer Services.
Before using the appliance, check that the mains
•
supply voltage corresponds to the voltage indica-
ted on the rating plate.
Connect the appliance to an efficiently earthed
power supply and sockets with a minimum current
rating of 10 A only.
Danger of burns!
• Never aim the steam at persons or animals.
• The user must never leave the iron unattended when
plugged in.
• During use, the steam generator should not be moved.
• IMPORTANT: the tube connecting the iron and steam
generator may become hot.
• All contact between the hot base and cables must be rigo-
rously avoided.
Important!
• After removing the packaging, make sure the appliance
is complete and undamaged. If in doubt, do not use the
en
