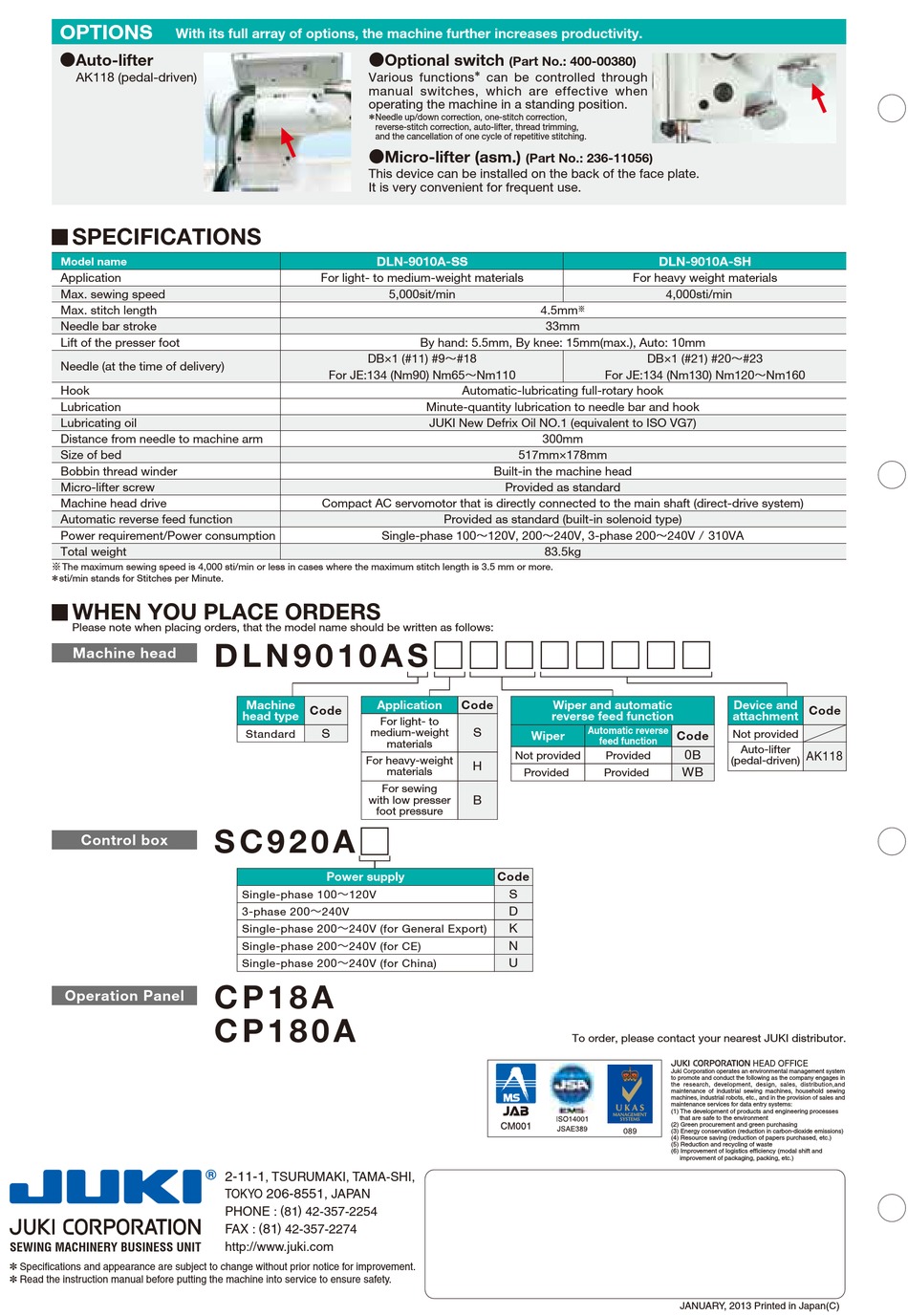

Specifications - JUKI DLN-9010A Specifications

OPTIONS
With its full array of options, the machine further increases productivity.
Auto-lifter
AK118 (pedal-driven)

SPECIFICATIONS

Model name
Application
Max. sewing speed
Max. stitch length
Needle bar stroke
Lift of the presser foot
Needle (at the time of delivery)
Hook
Lubrication
Lubricating oil
Distance from needle to machine arm
Size of bed
Bobbin thread winder
Micro-lifter screw
Machine head drive
Automatic reverse feed function
Power requirement/Power consumption
Total weight
The maximum sewing speed is 4,000 sti/min or less in cases where the maximum stitch length is 3.5 mm or more.
sti/min stands for Stitches per Minute.
WHEN YOU PLACE ORDERS
Please note when placing orders, that the model name should be written as follows:
Machine head
Control box
Operation Panel
SEWING MACHINERY BUSINESS UNIT
✽ Specifications and appearance are subject to change without prior notice for improvement.
✽ Read the instruction manual before putting the machine into service to ensure safety.
Optional switch
Various functions can be controlled through
manual switches, which are effective when
operating the machine in a standing position.
Needle up/down correction, one-stitch correction,
reverse-stitch correction, auto-lifter, thread trimming,
and the cancellation of one cycle of repetitive stitching.
Micro-lifter (asm.)
This device can be installed on the back of the face plate.
It is very convenient for frequent use.
DLN-9010A-SS
For light- to medium-weight materials
DB×1 (#11) #9 #18
For JE:134 (Nm90) Nm65 Nm110
Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
Single-phase 100 120V, 200 240V, 3-phase 200 240V
D L N 9 0 1 0 A S
Machine Application
Code
head type
For light- to
medium-weight
S
Standard
materials
For heavy-weight
materials
For sewing
with low presser
foot pressure
S C 9 2 0 A
Power supply
Single-phase 100 120V
3-phase 200 240V
Single-phase 200 240V (for General Export)
Single-phase 200 240V (for CE)
Single-phase 200 240V (for China)
C P 1 8 A
C P 1 8 0 A
2-11-1
, TSURUMAKI, TAMA-SHI,
206-8551
TOKYO , JAPAN
PHONE : ( 81 ) 42-357-2254
FAX : ( 81 ) 42-357-2274
http://www.juki.com
(Part No.: 400-00380)
(Part No.: 236-11056)
5,000sit/min
4.5mm
33mm
By hand: 5.5mm, By knee: 15mm(max.), Auto: 10mm
Automatic-lubricating full-rotary hook
Minute-quantity lubrication to needle bar and hook
JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
300mm
517mm×178mm
Built-in the machine head
Provided as standard
Provided as standard (built-in solenoid type)
83.5kg
Code Wiper and automatic
reverse feed function
S
Wiper
Not provided
H
Provided
B
Code
S
D
K
N
U
DLN-9010A-SH
For heavy weight materials
4,000sti/min
DB×1 (#21) #20 #23
For JE:134 (Nm130) Nm120 Nm160
310VA
Device and
attachment
Automatic reverse
Not provided
Code
feed function
Auto-lifter
0B
Provided
(pedal-driven)
WB
Provided
To order, please contact your nearest JUKI distributor.
Juki Corporation operates an environmental management system
to promote and conduct the following as the company engages in
the research, development, design, sales, distribution,and
maintenance of industrial sewing machines, household sewing
machines, industrial robots, etc., and in the provision of sales and
maintenance services for data entry systems:
(1) The development of products and engineering processes
that are safe to the environment
(2) Green procurement and green purchasing
(3) Energy conservation (reduction in carbon-dioxide emissions)
(4) Resource saving (reduction of papers purchased, etc.)
(5) Reduction and recycling of waste
(6) Improvement of logistics efficiency (modal shift and
improvement of packaging, packing, etc.)
JANUARY, 2013 Printed in Japan(C)
Code
AK118
