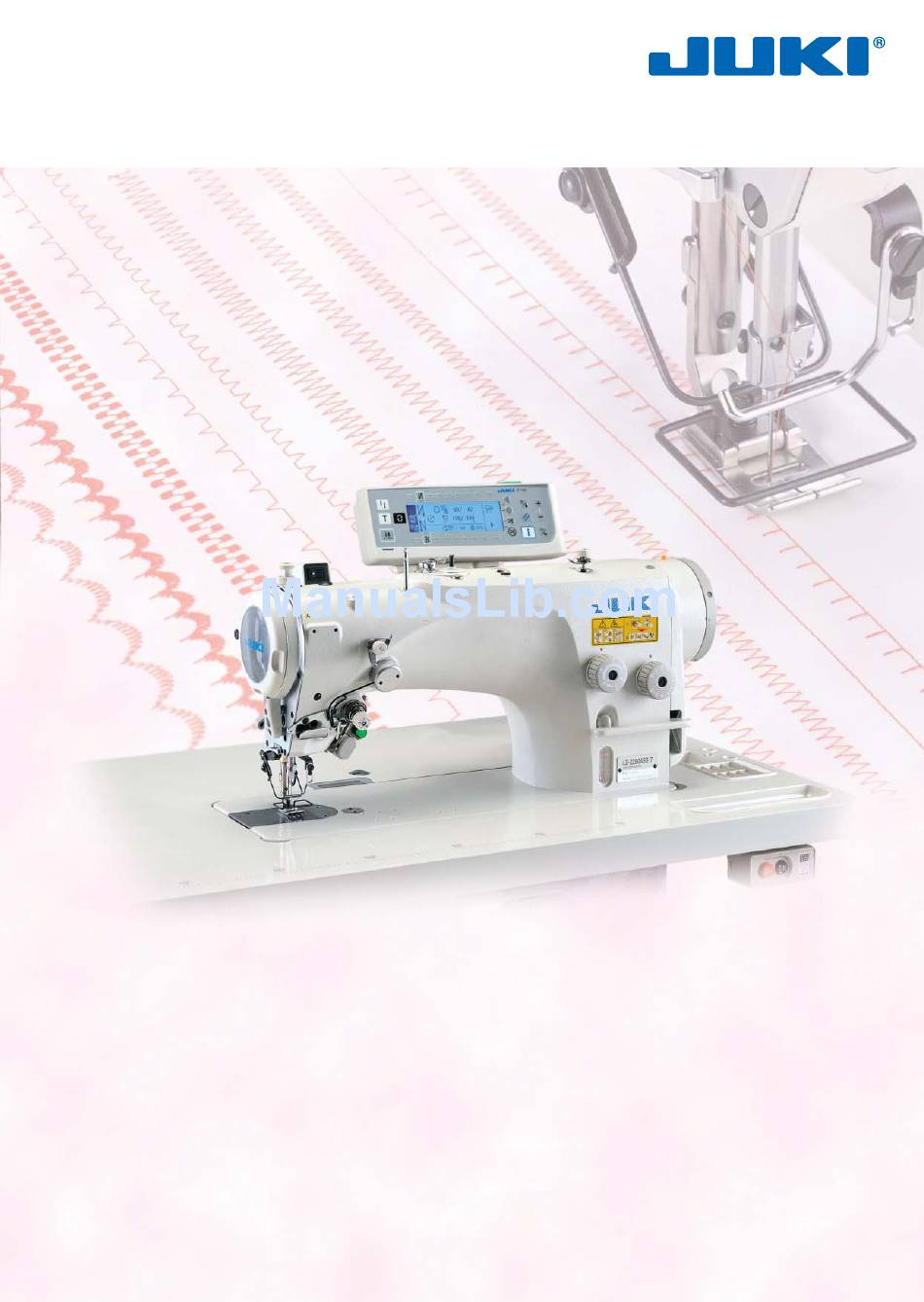

LZ-2290A Series
Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine
LZ-2290A Series
A single LZ-2290A Series machine is extremely versatile
and can perform many different stitching patterns.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LZ-2290A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for JUKI LZ-2290A Series

  • Page 1 LZ-2290A Series Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine LZ-2290A Series A single LZ-2290A Series machine is extremely versatile and can perform many different stitching patterns.
  • Page 2: Sewing Pattern

    LZ-2290A The next-generation standard zigzag stitching machine Series A single LZ-2290A Series machine is extremely versatile and can perform many different stitching patterns. It comes in two different models, one with standard specifications and the other with an anti-material slip capability. For both models, there are two subclass models, i.e., the "minute-quantity lubrication type"...
  • Page 3 ✱ You can quickly create an original stitching pattern on the operation panel and then try to sew it on a trial basis. Custom patterns can be created A wider variation in design enables the machine to respond to wider on the operation panel with ease.
  • Page 4 Newly developed larger-size machine head with a long arm. Wider space under the arm Reduced noise and vibration JUKI has developed a new high-long arm machine head one size The machine comes with a more rigid and well-balanced larger than the head for the conventional lockstitch machine. With machine head frame.
  • Page 5 Extensive product lineup for supporting many different processes Dry-head type Minute-quantity lubrication type Type Without automatic With automatic Without automatic With automatic thread trimmer thread trimmer thread trimmer thread trimmer LZ-2290A-DS LZ-2290A-SS Standard LZ-2290A-DS-7-WB LZ-2290A-SS-7-WB LZ-2290A-DS-0B LZ-2290A-SS-0B LZ-2290A-DU Anti-material-slip capability LZ-2290A-DU-7-WB LZ-2290A-SU LZ-2290A-SU-7-WB...
  • Page 6 The machine prevents material slippage when using slippery materials. Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine (with anti-material-slip capability) ✱ Newly developed feed mechanism prevents the material slippage that is likely to occur when sewing slippery or elastic materials used for girdles or bodysuits.
  • Page 7 ■ List of the major gauges Max. zigzag width Throat plate Feed dog Presser foot (with finger guard) Remarks / Max. feed pitch With a recess on the reverse side of the presser foot Max. feed amount: 2mm Light-in-weight type Max.
  • Page 8 Max. zigzag width Throat plate Feed dog Presser foot (with finger guard) Remarks / Max. feed pitch Light-in-weight type Max. feed amount: 1.3mm • For standard zigzag stitching Max. feed amount: 2.5mm Light-in-weight type Max. Max. feed amount: 2.5mm feed amount: 5mm Max.
  • Page 9 Automatic reverse feed function Code Wiper/Automatic reverse feed function Not provided Not provided Automatic Wiper Code reverse feed function Auto-lifter (pedal-driven) AK121 Provided Provided Provided For LZ-2290A-SU (anti-material-slip capability), select "Not provided." Provided provided ● To order, please contact your nearest JUKI distributor.
  • Page 10: Specifications

    Machine head drive Compact AC servomotor (direct-drive system) Minute-quantity lubrication to needlebar and Lubrication No lubrication hook (no oil pan system) JUKI New Defrix Oil No.1 Lubricating oil –– (equivalent to ISO VG7) Distance from needle to machine arm 300mm ×...
