JUKI LZ-2290A-SR-7 Brochure & Specs
Computer-controlled, direct-drive, high-speed, 1-needle, lockstitch, zigzag stitching machine with automatic thread trimmer (quick reverse type)
Hide thumbs
Also See for LZ-2290A-SR-7:
- Handbook (257 pages) ,
- Manual (6 pages) ,
- Engineer's manual (34 pages)
Related Manuals for JUKI LZ-2290A-SR-7
Summary of Contents for JUKI LZ-2290A-SR-7

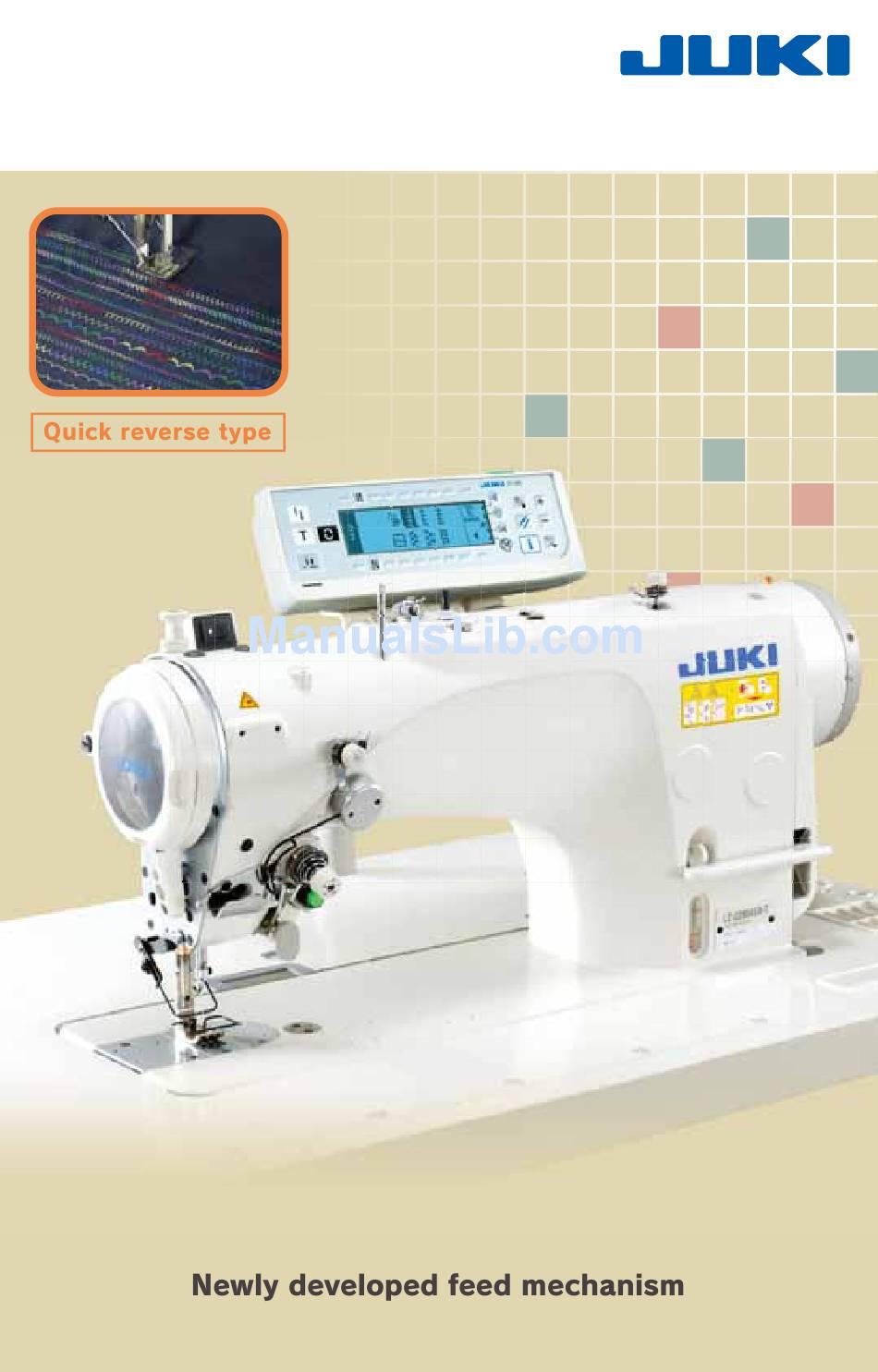

- Page 1 LZ-2290A-SR-7 Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine with Automatic Thread Trimmer (quick reverse type) LZ-2290A-SR-7-WB LZ-2290A-SR-7...
- Page 2 The machine is built around the newly developed LZ-2290A-7 machine head. In addition to the conventional types of stitching, the machine is able to perform T-shape stitching and zigzag pattern stitching to broaden its range of applications. In addition to the conventional eight types and 14 patterns of zigzag stitching, the machine is able to perform T-shape stitching and covering stitching.
- Page 3 The feed mechanism is controlled with a stepping motor to enable The magnet operating noise is virtually silent, even at the continuous sewing at a high speed. The machine achieves the time of changing over the sewing direction between normal world's highest sewing speed of 4,000rpm even when performing and reverse feed directions.
-
Page 4: Throat Plate
Max zigzag width Throat plate Feed dog Presser foot (with finger guard) / Max feed pitch (at the time of delivery) Max. feed amount: 2mm With a recess on the reverse side of the presser foot Light-in-weight type Max. feed amount: 2mm Light-in-weight type with the front fulcrum Max. - Page 5 Max zigzag width Throat plate Feed dog Presser foot (with finger guard) / Max feed pitch Light-in-weight type Max. feed amount: 2.5mm Light-in-weight type with the front fulcrum Max. feed amount: 1.6mm Light-in-weight type Max. feed amount: 1.3mm Max. feed amount: 2.5mm Light-in-weight type Presser foot with a knife Max.
-
Page 6: Machine Head
For General Export Single-phase 200 240V For CE Single-phase 200 240V LZ-2290A-SR-7-CB To order, please contact your nearest JUKI distributor. Juki Corporation operates an environmental management system to promote and conduct the following as the company engages in the research, development, design, sales, distribution,and maintenance of industrial sewing machines, household sewing machines, industrial robots, etc., and in the provision of sales and...
