Philex SLx2B series Instruction Manual

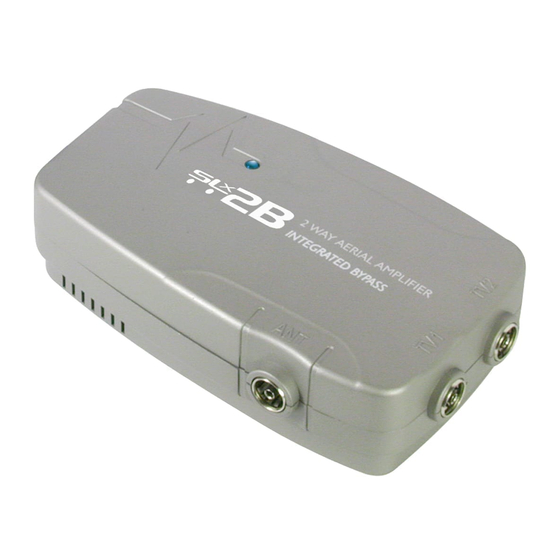

SLx2B Aerial amplifier instruction manual
INTRODUCTION
The SLxB series amplifiers are designed to improve the picture and sound quality of TV and FM
radio signals and distribute these to multiple locations around your home. The SLx2B can also be
used to distribute a VCR, Digital Television and Sky™/ Sky+™ signal to two televisions around
the home.
All SLxB amplifiers have an integrated by-pass designed to allow the user control digital Sky™
and Sky+™ receivers from any of the connected televisions using an infrared link device and a
Sky™ or Sky+™ compatible remote control.
For added safety the SLx2B has built-in short circuit protection on each individual output.
Should a short circuit be detected, the amplifier will only shut down the output with the short
circuit; the other outputs will continue to function as normal.
The amplifiers are easy to install and fully automatic in operation, meaning that no user
adjustment is required. The low running cost permits continuous operation.
With full instructions and wall mounting template, installing the SLx2B aerial amplifier is both
quick and easy.

INSTALLING THE SLx2B AMPLIFIER

The SLx2B amplifier can be installed in either a room location or in a loft. Choose your installation
position according to your personal preference. Please be aware that long runs of cable can
become subject to interference so avoid unnecessary long lengths of cable.
METHOD 1
TV SIGNAL DISTRIBUTION
CONNECTION DIAGRAM
1. Connect your UHF aerial downlead to the IN UHF socket on the SLx2B.
2. Connect your TVs to any of the SLx2B TV sockets in any combination.
METHOD 2
TV/VCR DISTRIBUTION
CONNECTION DIAGRAM
1. Connect your UHF aerial downlead (typically via an aerial wall socket) to the aerial input on
your VCR.
2. Connect an aerial fly-lead from the aerial output on your VCR to the IN UHF socket on the
SLx2B.
3. Connect your TVs to any of the SLx2B TV sockets in any combination.
Once connected, you can tune each television to traditional terrestrial channels and a channel for
VCR viewing.
If you want to connect independent VCRs in each location, connect using METHOD 1 but
connect the SLx2B TV output/s to your VCR/s, then connect your VCR/s to your television/s.
METHOD 3
TV/VCR/SATELLITE DISTRIBUTION
CONNECTION DIAGRAM
