Icom IC-F50V Instruction Manual page 37

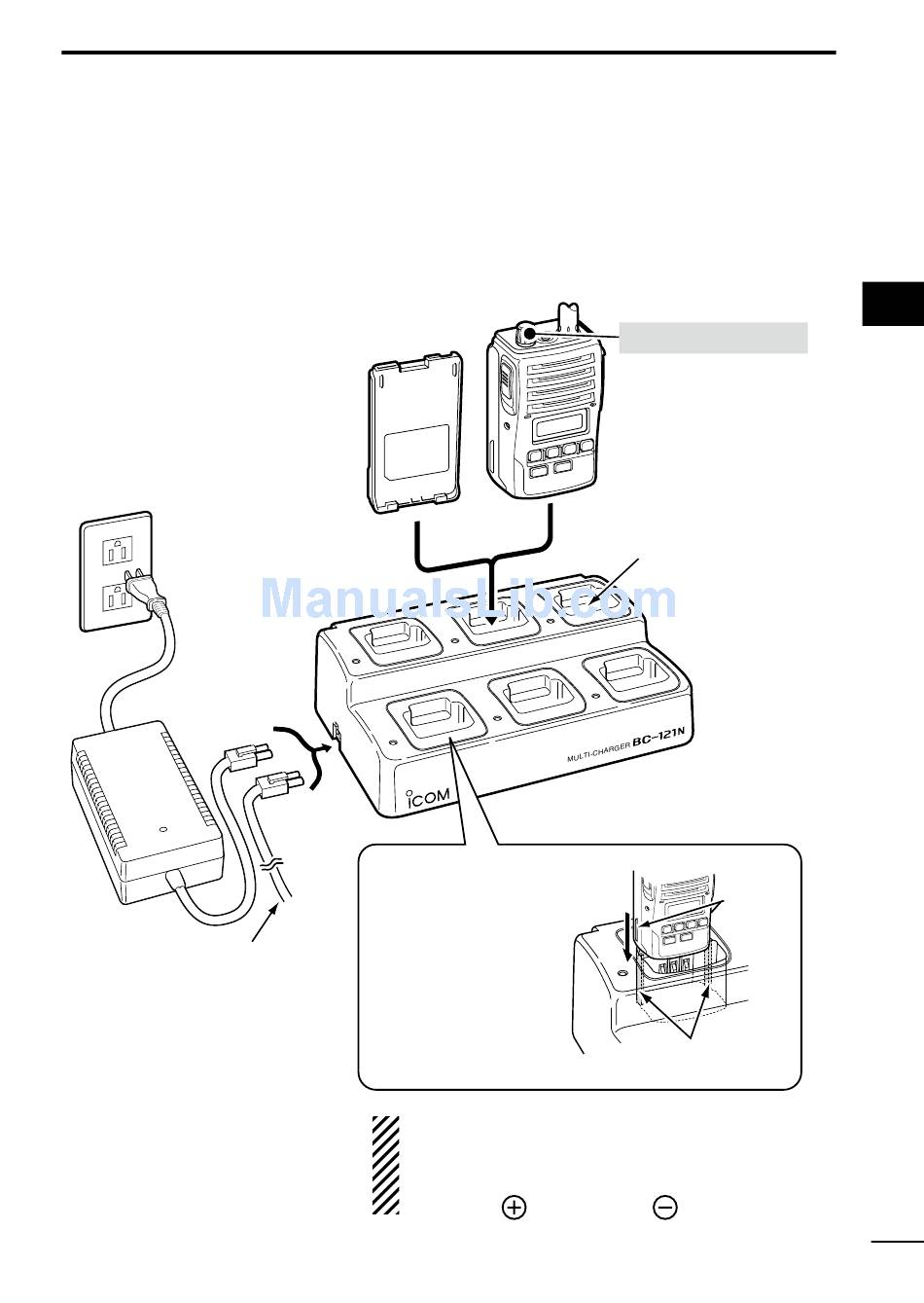

D Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following items are additionally required.
• Six AD-100 charger adapter
• An AC adapter (BC-157) or the DC power cable (OPC-656)
*See the instruction
manual for details of the
charger LED indication,
operation, etc.
AC adapter
(Purchase
separately.)
DC power cable
(OPC-656*)
( Connect with
the DC power
supply; 13.8 V/
at least 7 A)
Battery pack
IMPORTANT!
Ensure the guide
lobes on
battery pack are
correctly aligned
with the guide
rails inside of the
charger adapter.
CAUTION: NEVER connect the OPC-
*
656 to a power source using reverse po-
larity. This will ruin the battery charger.
Red line:
BATTERY CHARGING
Turn power OFF
Transceiver
AD-100 charger
adapters are
installed
in each slot.
the
Guide rails
Black line :
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Lobes
16
17
18
19
20
