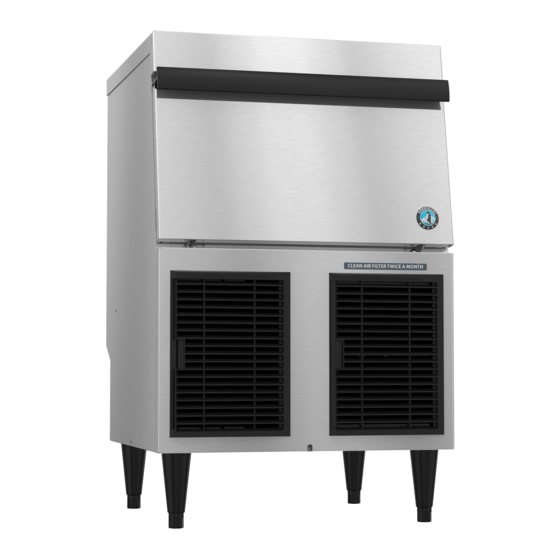

Self-Contained Flaker
Model
F-330BAH(-C)
INSTRUCTION MANUAL
Issued: 5-4-2007
Revised: 1-15-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-330BAH and is the answer not in the manual?

Questions and answers

Related Manuals for Hoshizaki F-330BAH

Summary of Contents for Hoshizaki F-330BAH

  • Page 1 Hoshizaki Hoshizaki America, Inc. Self-Contained Flaker Model F-330BAH(-C) INSTRUCTION MANUAL “A Superior Degree of Reliability” www.hoshizaki.com Issued: 5-4-2007 Revised: 1-15-2013...
  • Page 2 WARNING Only qualified service technicians should install and service the appliance. To obtain the name and phone number of your local Hoshizaki Certified Service Representative, visit www.hoshizaki.com. No installation or service should be undertaken until the technician has thoroughly read this Instruction Manual.

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the appliance is installed and operated. Read the warnings and guidelines contained in this manual carefully as they provide essential information for the continued safe use and maintenance of the appliance. Retain this manual for any further reference that may be necessary.

  • Page 4: Specifications

    For certification marks, see the nameplate on the rear panel. Note: Only the "MODEL NUMBER" is replaced for F-330BAH-C. See the nameplate for electrical and refrigeration specifications. This nameplate is located on the rear panel. We reserve the right to make changes in specifications and design without prior notice.

  • Page 5: Dimensions/Connections

    B. Dimensions/Connections 1. F-330BAH, F-330BAH-C...

  • Page 6: Installation And Operating Instructions

    II. Installation and Operating Instructions A. Checks Before Installation IMPORTANT 1. Install in accordance with all applicable national, state, and local regulations. 2. Remove shipping carton, tape, and packing. If any are left in the icemaker, it will not work properly. 3.

  • Page 7: Location

    • A plumbing permit and services of a licensed plumber may be required in some areas. • External filters, strainers, or softeners may be required depending on water quality. Contact your local Hoshizaki Certified Service Representative for recommendations. • Water supply pressure should be a minimum of 10 PSIG and a maximum of 113 PSIG.
  • Page 8 • Water supply inlet is 1/2" female pipe thread (FPT). • A minimum of 1/4" nominal ID copper water tubing or equivalent is required for the icemaker water supply line. An icemaker water supply line shut-off valve and drain valve must be installed.

  • Page 9: Final Checklist

    G. Final Checklist 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within +45°F to +100°F (+7°C to +38°C) and the water temperature within +45°F to +90°F (+7°C to +32°C) all year around? 3) Is there at least 24"...

  • Page 10: Startup

    H. Startup CAUTION 1. All parts are factory-adjusted. Improper adjustments may result in failure. 2. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 1) Clean the storage bin. 2) Open the water supply line shut-off valve.

  • Page 11: Cleaning And Maintenance

    Be careful not to leave any solution in the storage bin. 1. Cleaning Solution Dilute 4.8 fl. oz. (142 ml) of Hoshizaki "Scale Away" with 0.8 gallons (3 l) of warm water. This is a minimum amount. Make more solution if necessary.
  • Page 12 6) Lift up the top insulation and unsnap the bin control assembly. Lift the assembly up through the insulation and set it aside. See Fig. 3. 7) Remove the top insulation. Bin Control Assembly Top Insulation Fig. 3 8) Remove the thumbscrews attaching spout (B) to the bin, then remove spout (B). See Fig.

  • Page 13: Sanitizing Solution

    13) Plug the unit back in. Move the control switch to the "ICE" position and move the power switch to the "ON" position. Replace the panels in their correct positions and allow the unit to make ice using the solution until it stops automatically. Note: This unit is designed to start operating when the water reservoir is full.
  • Page 14 5. Sanitizing Procedure - Final 1) Remove the front panel. 2) Move the control switch to the "DRAIN" position to drain the remainder of the solution. 3) After the solution has drained, move the power switch to the "OFF" position and unplug the unit.

  • Page 15: Maintenance

    Lower Bearing Mechanical Seal Consult with your local distributor about inspection and maintenance service. To obtain the name and phone number of your local distributor, call Hoshizaki Technical Support at 1-800-233-1940 in the USA. 1. Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up.

  • Page 16: Preparing The Icemaker For Long Storage

    C. Preparing the Icemaker for Long Storage CAUTION When the icemaker is not used for two or three days under normal conditions, it is sufficient to only move the power switch to the "OFF" position. When storing the icemaker for extended time or in sub-freezing temperatures, turn the water off and drain out all water from the water lines and remove the ice from the bin.

  • Page 17: Disposal

    IV. Disposal The icemaker contains refrigerant and must be disposed of in accordance with applicable national, state, and local codes and regulations. Refrigerant must be recovered by properly certified service personnel.
