Samsung MCD-SF85 Instruction Manual

Portable mp3-cd player mp3-cd/cd-r/rw playback
Hide thumbs Also See for MCD-SF85:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Portable MP3-CD Player
MCD-SF85
MP3-CD/CD-R/RW Playback
Instruction Manual
AH68-01096B

Advertisement

Table of Contents
loading

Related Manuals for Samsung MCD-SF85

Summary of Contents for Samsung MCD-SF85

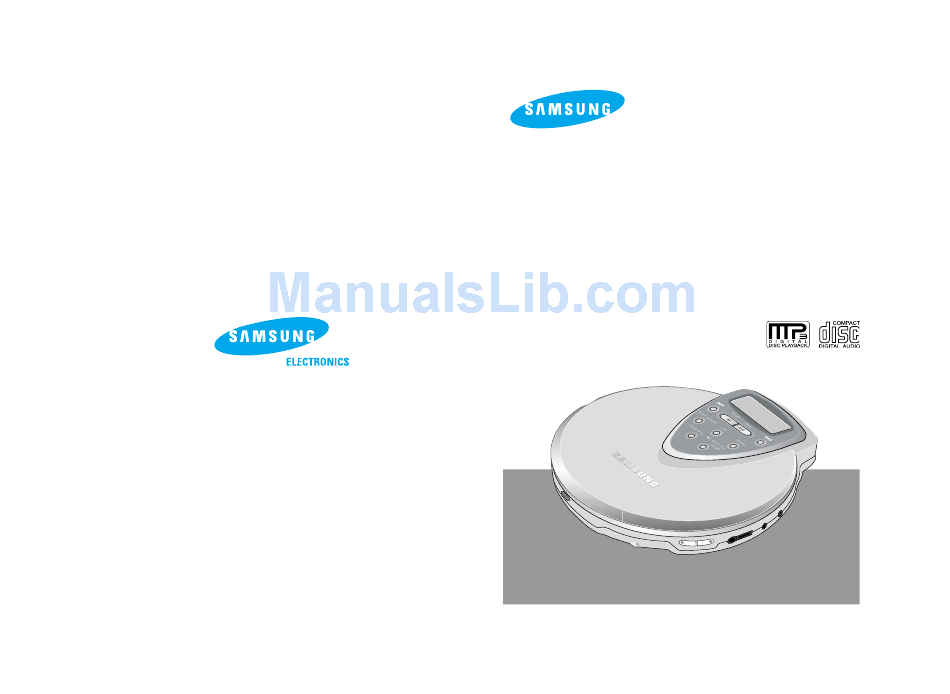

  • Page 1 Portable MP3-CD Player MCD-SF85 MP3-CD/CD-R/RW Playback Instruction Manual AH68-01096B...

  • Page 2: Table Of Contents

    Main Features Contents Safety Warning SBS function ESP function Buttons and Controls The SBS function produces rich, The ESP function ensures high deep bass tones for a more power- resistance to shock or vibration so Preparation before using your unit ful overall sound.

  • Page 3: Safety Warning

    Safety Warning Take care not to allow Do not apply heavy Do not leave your play- dust or other contami- pressure to the player. er in direct sunlight or nants to come into con- near a heat source. Earphones tact with your player. Road safety Do not use the earphones while riding a bicycle, driving any kind of motor vehicle or motorcycle.

  • Page 4: Buttons And Controls

    Buttons and Controls Main Unit Program button Open switch (Refer to pages 20, 21) Last Memory/SBS button ESP/Album button (Refer to page 16) (Refer to pages 18, 19) Volume +10 button (Refer to page 18) Skip/Search buttons Remote control Connection jack (Refer to page 9) (Refer to page 14) Line Out output jack...
  • Page 5 Buttons and Controls Display Front Stop/Power off button The picture of the display panel below is based on MP3-CD playback. Volume FM button • Mo/ST button Skip/Search button Automatic Tuning button Radio CD Power On/Play/Pause button Earphone jack Hold switch (see page 14) Display AL/+10/MEM.

  • Page 6: Preparation Before Using Your Unit

    Preparation before using your unit How to Connect Using rechargeable batteries Connect the AC adaptor to the power Open the cover of the battery input jack. Then, connect the AC plug compartment of the adaptor to the AC outlet. • Only use the AC adaptor supplied with your product.

  • Page 7: Using Standard Batteries (Not Supplied)

    CD Playback Preparation before using your unit Using standard batteries (not supplied) Slide the Open button to Attach the external battery pack as open the door. shown in the picture. Insert a CD. • Then, turn the lock control to secure Open firmly in place.

  • Page 8: Mp3-Cd Playback

    Skip/Search function MP3-CD Playback Skip Slide the Open button to open the door, and insert an MP3-CD. Press and release the button Open Main Unit during playback of a CD. • Push the door to close it. • Press the button to play the next track.

  • Page 9: Mode Function

    Last Memory/SBS function Mode function Briefly press the Last Memory/SBS button to activate the SBS func- Briefly press the Mode button to activate the Repeat function or hold it tion or hold it longer to activate the Last Memory function. down for longer to activate the Random function.

  • Page 10: Esp/Album Function

    ESP/Album function This function is only available during playback of an MP3-CD. • Albums are sections of tracks representing one artist. Album Function ESP prevents the music function (Electronic Skip Protection) This function makes it easier to skip between them. being interrupted by vibration and shock.

  • Page 11: Program Function

    Program function You can store up to 30 tracks of your favorite tunes. Example: When storing track number 4 to program number 1. To confirm the program From Stop mode, press the Program Program button on the • From Stop mode, press the Program main unit.

  • Page 12: Listening To Fm Radio

    Listening to FM Radio Presetting Stations You can either manually or automatically preset and store FM stations. Manually presetting stations To tune in to a station EXAMPLE: Storing an FM station at 89.1 MHz into preset number 2 Press and hold the -FM Main button on the remote control.

  • Page 13: Features

    Presetting Stations Features (continued) Tuning in to a Preset Station Playback sequence of albums and tracks Press the Mode/P.SET button. • When using Windows Explorer. PSET Mode/P.SET • The arrows indicate playback sequence of albums and tracks. • "PSET" and the station frequency stored •...

  • Page 14: Maintaining And Looking After Your Unit

    Maintaining and looking Troubleshooting Guide after your unit Problem Check Looking after your CDs Did you insert the battery with the correct polari- Wash the disc with a neutral detergent diluted in water, and then wipe gently with a soft dry cloth from the center of the Are the batteries drained? Unit has no power.

  • Page 15: Specifications

    Specifications Memo Frequency range 20Hz ~ 20KHz Signal/noise ratio 74dB Channel Separation 65dB, 1kHz, 0dB Total harmonic distortion 0.1% D/A conversion 1bit, 4 times Oversampling output 310mV(RMS), 6mW/CH Earphone Line out output 290mV(RMS) Bit Rate : 64~322kbps Scope of playback supported Sampling frequency : 44.1KHz DISC Sizes Diameter 120mm,80mm...
