Samsung yePP MCD-CM150 Instruction Manual

Portable mp3-cd player mp3-cd, wma-cd, cd-da playback
Hide thumbs

Advertisement

Quick Links

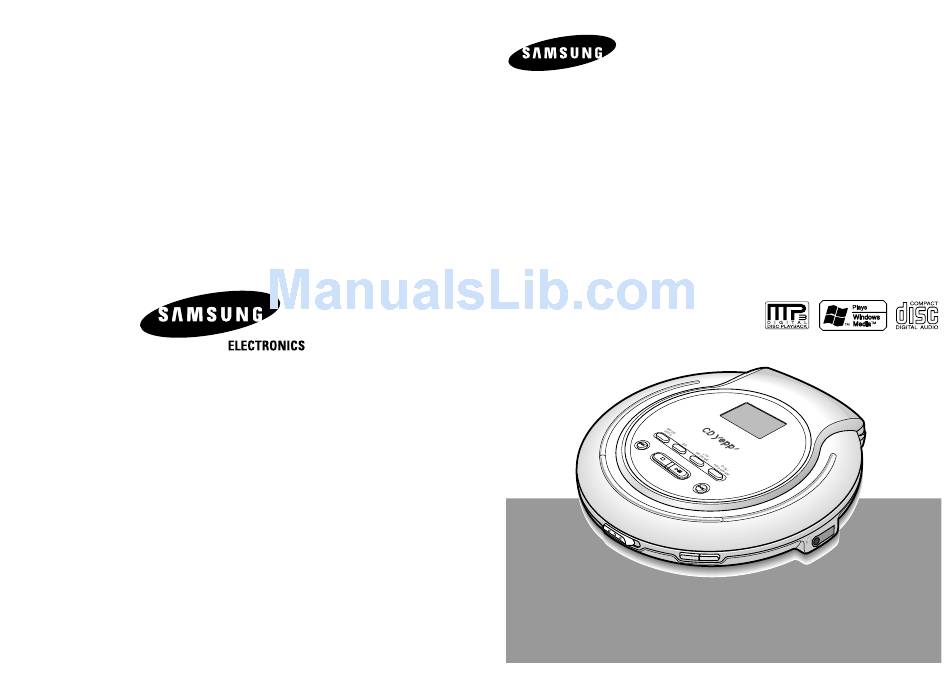

Portable MP3-CD Player
MP3-CD, WMA-CD, CD-DA Playback
MCD-CM150
Instruction Manual
AH68-01572B

Advertisement

loading

  Also See for Samsung yePP MCD-CM150

  Related Manuals for Samsung yePP MCD-CM150

  Summary of Contents for Samsung yePP MCD-CM150

  • Page 1 Portable MP3-CD Player MP3-CD, WMA-CD, CD-DA Playback MCD-CM150 Instruction Manual AH68-01572B...
  • Page 2: Table Of Contents

    Main Features Random function Directory function (MP3(WMA)-CD Only) The Random function allows you to The Directory function allows easy play tracks in random order. browsing and searching of your favorite tunes by album name, song title and artist. Resume function (MP3(WMA)-CD Only) VEOS function The Resume function allows you to...
  • Page 3: Safety Warning

    Safety Warning Take care not to allow dust Do not apply heavy or other contaminants to pressure to the player. come into contact with your player. Do not use broken or Do not put anything other scratched MP3 CDs. than a CD (CD-R or CD-RW) inside your player.
  • Page 4 Buttons and Controls Main Unit Accessories Earphones EQ button • MODE – VEOS Power Input Jack Skip/Search button Stop ( Play/Pause ( √» ) button AC adaptor Open switch +10/RESUME button button DIR./PROGRAM button Earphone jack ) button Volume buttons Bottom of the Main Unit HOLD switch User manual...
  • Page 5: Buttons And Controls

    Buttons and Controls Display The picture of the display panel below is based on MP3-CD playback. Repeat Mode indicator Track Number indicator EQ Mode Indicator How to Connect Random Indicator Play time indicator Remaining Battery Power indicator Preparation before using your unit Connect the earphones to the main unit.
  • Page 6 Preparation before using your unit Using rechargeable batteries Strip the sheath covering the terminals of the rechargeable battery before charging it. • As shown in the illustration, with a knife carefully strip the sheath of the negative (-) terminal by 6 mm. If the sheath is not stripped, charging will not function.
  • Page 7: Cd Playback

    ( √» ) button. • The inserted MP3(WMA)-CD will be scanned for about 30~90 seconds. Playback will then commence. Your CD Player will take a Track Number Indicator Playtime Indicator few moments to scan through all the tracks and the sessions recorded on an MP3(WMA)-CD.
  • Page 8: Skip/Search Function

    • Buttons pressed during CD playback will not function. (On the display, the “HOLD” indicator will flash.) • Use the HOLD function when carrying your CD Player around with you. Use of this function will allow you to conserve battery life as it prevents the CD Player from being turned on if a button is pressed unintentionally.
  • Page 9: Veos Function

    VEOS function Press and hold the MODE/VEOS button. • CD Playback: Press and hold the MODE/VEOS to turn this function on and off. (During playbackof an MP3-CD, VEOS will always be active whether or not the MODE/VEOS button is pressed.) CD VEOS ON : For an Audio CD, the player buffers up to 45 seconds of CD data.
  • Page 10: Resume Function

    Resume function When MP3-CD playback is selected again after your CD player has been stopped or turned off, the unit plays back from the start of the track that you last listened to. Press and hold the +10/RESUME button. •...
  • Page 11: Features

    To confirm the program In the stop mode, press the • DIR./PROGRAM button. Each time the button is pressed, • track numbers will be shown on the display according to their program sequence. To change the program To change the programmed tracks during program •...
  • Page 12 Precautions when using compact discs Looking after your CDs Wash the disc with a neutral detergent diluted in water, and then wipe gently with a soft dry cloth from the center of the disc to the outside. Handling your CDs Carefully pick up the disc by its edge without touching the disc’s surface.
  • Page 13: Specifications

    Specifications Item Description Frequency range 20Hz ~ 20KHz Earphone output 330mV(RMS), 6.8mW/CH,16 Signal/noise ratio 85dB (1kHz) Total harmonic distortion 0.1% (1kHz, 0dB) CD-DA (8Cm/12Cm) Format Support CD-ROM Mode 1, Mode 2 Form 1 ISO 9660, Joliet CD-R/RW Readability Romeo, Multi-session File Support MPEG 1 Layer 3, WMA 8kbps ~ 320kbps (MP3)
