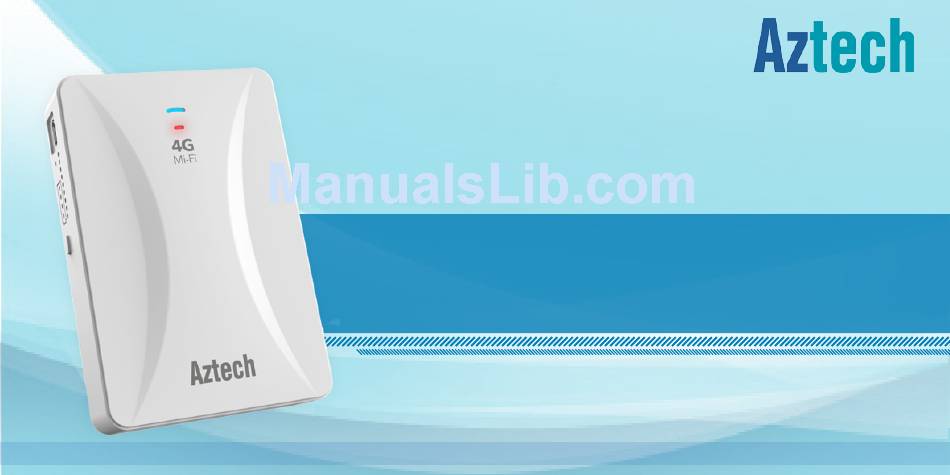

Easy Start Guide
Aztech MWR647
4G Mi-Fi with Built-in PowerBank
PleAse RetAin this UseR MAnUAl foR fUtURe Use.

Advertisement

Table of Contents
loading

Related Manuals for Aztech MWR647

Summary of Contents for Aztech MWR647

  • Page 1 Easy Start Guide Aztech MWR647 4G Mi-Fi with Built-in PowerBank PleAse RetAin this UseR MAnUAl foR fUtURe Use.

  • Page 2: Table Of Contents

    Charging Essentials SIM Card Installation Charging your Mobile Phones Using the » Usage Scenarios MWR647 3G/4G Wireless Internet Charging your MWR647 » » Wired Internet Connection Frequently Asked Questions (FAQs) » Internet Using 4G SIM Connecting your Wireless Devices to your MWR647’s Wi-Fi...

  • Page 3: Device Overview

    1 Device Overview Wi-Fi Indicator System Indicator SIM Card Slot Power Switch Name Status Description Sim Card Slot A Slot for Standard Sized SIM Card Power Switch Use this mode when using 3G/4G broadband wireless. When charging a smartphone, use the C mode to begin Charging. Turns OFF the Mi-Fi Router.
  • Page 4 External Charging Port Battery Indicator Reset Hole Power Indicator WAN/LAN Charging Indicator Micro-USB Charging Port Name Status Description Battery Indicator One Light up 20% Battery level (Note: Long Press the T Key Two Lights up 40% Battery level and the power indicator will Three Lights up 80% Battery level light up)

  • Page 5: Sim Card Installation

    SIM card Prepare a STANDARD SIZED SIM Card. slot until you here a locking sound. NOTE: MWR647 only accepts Standard sized SIM Cards. You may use a SIM Card adapter if your SIM card is Micro or Nano in size.

  • Page 6: Usage Scenarios

     Usage Scenarios A. G/4G Wireless Internet 3G/4G Base The MWR647 supports 3G/4G wireless Station internet. Smartphones After inserting a SIM card, it will automatically convert the 3G/4G signal to Wi-Fi signals, giving your wireless devices internet access, anytime and anywhere.

  • Page 7: Wired Internet Connection

    B. Wired Internet Connection The MWR647 can also act as a router by simply connecting it to your ADSL modem through an Ethernet cable. Smartphones NOTE: To use this mode, you first have to change the 3G/4G Connection mode to Wire Mode.

  • Page 8: Internet Using 4G Sim

    The System Indicator will flash, indicating that it is currently connecting to a 4G network. The MWR647 has connected succesfully when the System Indicator stops flashing and turns to red. You may now connect your wireless devices to the wireless network.

  • Page 9: Connecting Your Wireless Devices To Your

    Connected after a successful right corner of your screen to open the connection. Available Wireless Networks list. Scan for AztechMWR64_xxxx, double click and correctly enter the wireless password found at the back panel of your MWR647.
  • Page 10 Available Wireless Networks list. Scan AztechMWR64_xxxx, double click and correctly enter the wireless password found at the back panel of your MWR647. The Wireless Network status would display Connected after a successful connection.
  • Page 11 OFF, turn it ON. On the Wireless Network list, scan for AztechMWR64_ xxxx, tap it and correctly enter the wireless password found at the back panel of your MWR647. check would be seen beside the AztechMWR64_ xxxx network name, indicating a succesful connection.
  • Page 12 Settings > Wi-Fi. On the Wireless Network list, scan for AztechMWR64_xxxx, tap it and correctly enter the wireless password found at the back panel of your MWR647. Connected status would be seen below the AztechMWR64_xxxx network name, indicating a succesful...

  • Page 13: Accessing The Web User Interface

    Open any web browser (e.g. Google Chrome, Internet Explorer), then enter http://12.168.2.1 on the adress bar. Enter admin for its username and password. Click Confirm, and you will automatically be redirected to your MWR647’s Web User Interface as seen below: The Web User Interface will help...

  • Page 14: Configuring The The Wireless Settings

     Configuring the Wireless Settings MWR647 supports common WEP, WPA-PSK/WPA2-PSK encryption standard. It is highly recommended to use a high level of security encrytion, WPA2-PSK. Connect wirelessly to your MWR647. Access the Web User Interface. Go to WLAN > Security Settings.

  • Page 15: Internet Using Wire Mode

    Access the Web User Interface. Click Network > Internet Settings then choose Wire Mode. Click Apply to save settings. You may now connect your MWR647 router to your modem using an Ethernet cable. Note: The WAN/LAN Port can be used...
  • Page 16  Charging Essentials A. Charging your Mobile Phones using the MWR64 Your MWR647 can be used as power bank to charge smartphones and tablets. To use this feature, connect your device to the MWR647 through a USB cable then move the power switch to C mode to begin charging.
  • Page 17 B. Charging your MWR64 The Charging Indicator displays red when you are charging the MWR647. The Charging Indicator would turn OFF indicating that it has already finished charging. It is important to take note that in charging your router, ONLy USE THE CHARGER PROVIDED IN THE DEVICE PACKAGE.
  • Page 18 2. I cannot find my MWR64’s Wireless Network (SSID). Check if the Wi-Fi of the MWR647 is turned ON. » You might be too far from your MWR647, try moving closer to your MWR647. » Try resetting your MWR647 »...
  • Page 19 4. My device has a slow connection and even gets disconnected often. Check the device’s current location and operator signal. Relocate it if necessary. » Check the environment of the device. Poor ventilation can cause device overheating. » . I cannot charge my mobile phone. Press T key to check whether the battery is empty.
  • Page 20 Copyright © 2014 Aztech Technologies Pte Ltd (CRN:199800635M ). All rights reserved.
