NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MCPL 105
Retain This
Manual for
Reference
100427
OWNER'S
MANUAL

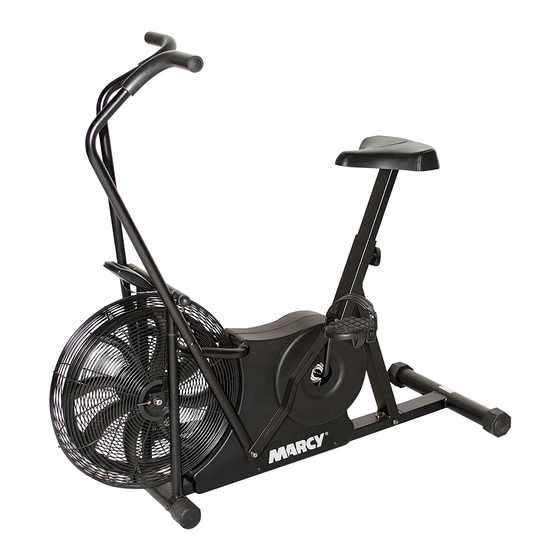

MARCY BODY CYCLE
MCPL-105
2801 S. Towne Ave., Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
IMPEX INC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Impex MARCY MCPL-105
Summary of Contents for Impex MARCY MCPL-105
-

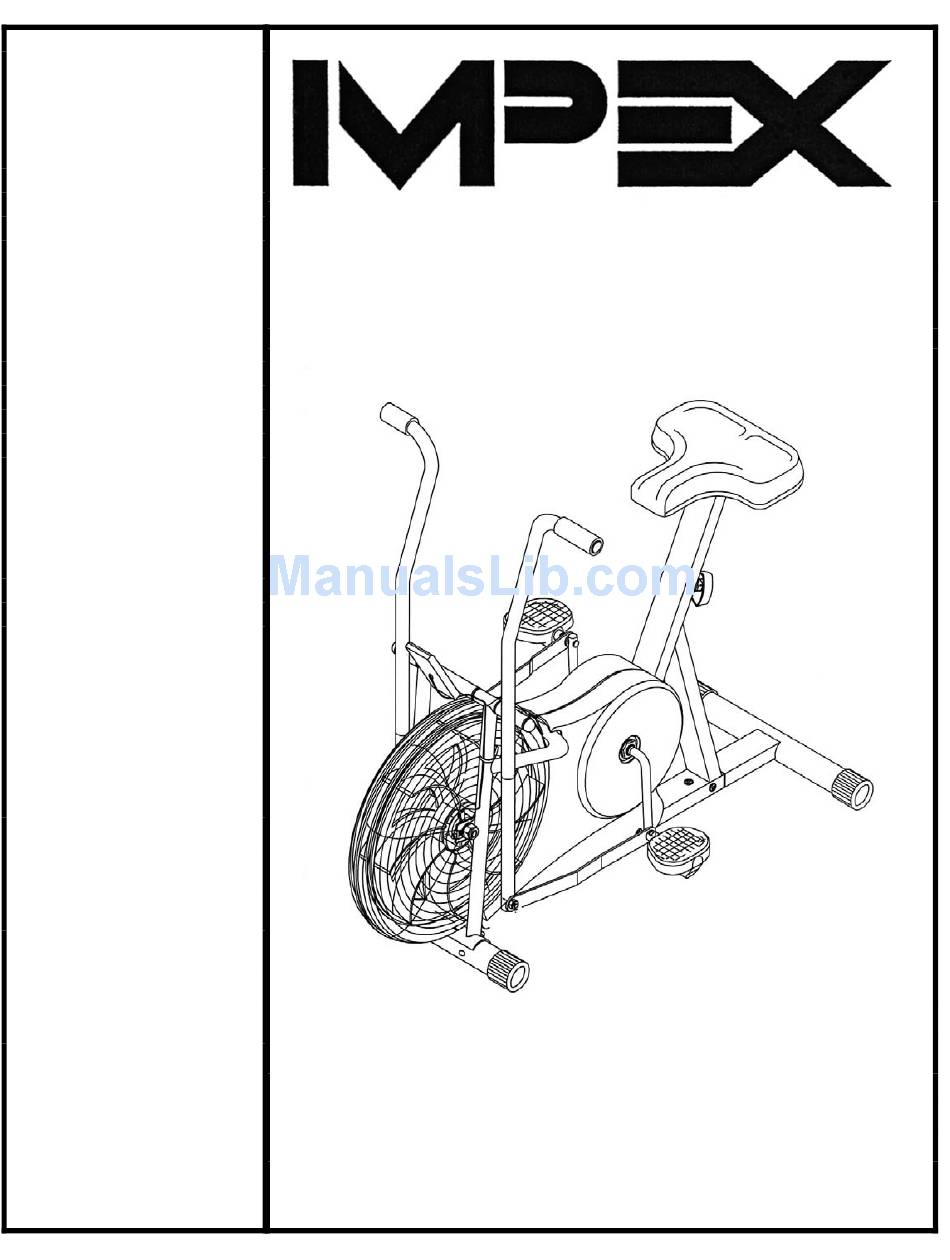

Page 1: Impex Inc
NOTE: Please read all instructions carefully before using this product MARCY BODY CYCLE MCPL-105 Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model MCPL 105 Retain This Manual for Reference 100427 OWNER'S IMPEX INC. MANUAL 2801 S. Towne Ave., Pomona, CA 91766 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com... -
Page 2: Table Of Contents
WARRANTY....................…. 11 ORDERING PARTS..................… 11 BEFORE YOU BEGIN Thank you for selecting the MARCY Body Cycle Fan Bike MCPL-105 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required to Assemble the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram1) A.) Attach the Front Stabilizer (#13) to the Main Frame (#1). Secure it with two M8 x 2 ½” Carriage Bolts (#15), 5/8”... - Page 6 STEP 2 (See Diagram 2) A.) Insert the Axle (# 4) into the Pivot on the Main Frame (#1). Attach the Left and Right Handlebars (#2) & (#32) onto the Axle from both sides. Secure the Axle with two 7/8” Washers (#7) and M8 Nylon Nuts (#8).
- Page 7 STEP 3 (See Diagram 3) A.) Attach the Connecting Rod (#26) on the Lower Handlebar to the Crank. Align the hole. Insert a Bushing (#29) into the hole on the Rod. Attach a Spacer (#30) to the Bushing. Then insert the Left Pedal (#27) through the Rod into the Crank.
- Page 8 STEP 4 (See Diagram 4) A.) Attach the Seat (#18) to the Seat Post (#19). Secure it with three 5/8” Washers (#21), Spring Washers (#22), and M8 Nylon Nuts (#23). B.) Insert the Seat Post into the opening on the Main Frame (#1). Select the Seat height and secure it with a Lock Knob (#17).
-
Page 9: Exploded Diagram
EXPLODED DIAGRAM... -
Page 10: Parts List
PARTS LIST KEY NO. DESCRIPTION QUANTITY Main Frame Left Handlebar Lower Handlebar Axle ½” Flat Washer M6 x 5/8” Allen Bolt 7/8” Washer M8 Nylon Nut Axle End Cap Rear Stabilizer 5/8” Washer M8 x 5/8” Allen Bolt Front Stabilizer ... -
Page 11: Computer
COMPUTER Press “MODE” on Computer to select each function. Functions: Scan: Automatically scan through each mode in sequence every 6 seconds. Speed: Shows the current speed up to 99.9 Miles/Hr. Distance: Accumulates pedaled distance up to 99.99 miles from zero. ... -
Page 12: Warranty
IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
