Heath Zenith Multi-Channel Remote Control Instruction Manual

FEatuRES
• Operational range of up to 100 feet.
• Controls all Heath
tions™ products.
• FCC/IC tested and approved.
• Flash control on compatible receivers when using
the Panic feature.
Control Group and Indicators - Select
Group A or B lighting controls.
ALL ON - Turns all lights within a Group ON.
Select either Group A or B then press ALL ON.
Light Control - ON
Light Control - DIM*
Light Control Selectors
PANIC* - All lights within a Group will
flash ON and OFF. Select either Group A
or B then press PANIC.
*dIM Control: Dims lighting controls that are equipped with the dimming feature. Pressing DIM will toggle through the different dim
levels. Each time the DIM button is pressed, the control LED will momentarily light.
The receiver saves the last dim setting used. To recall the last dim setting, press the DIM control once.
Note: Not all lighting controls have the DIM and PANIC (flash) feature.
© 2007 HeathCo LLC
/Zenith RF Tech Communica-
®

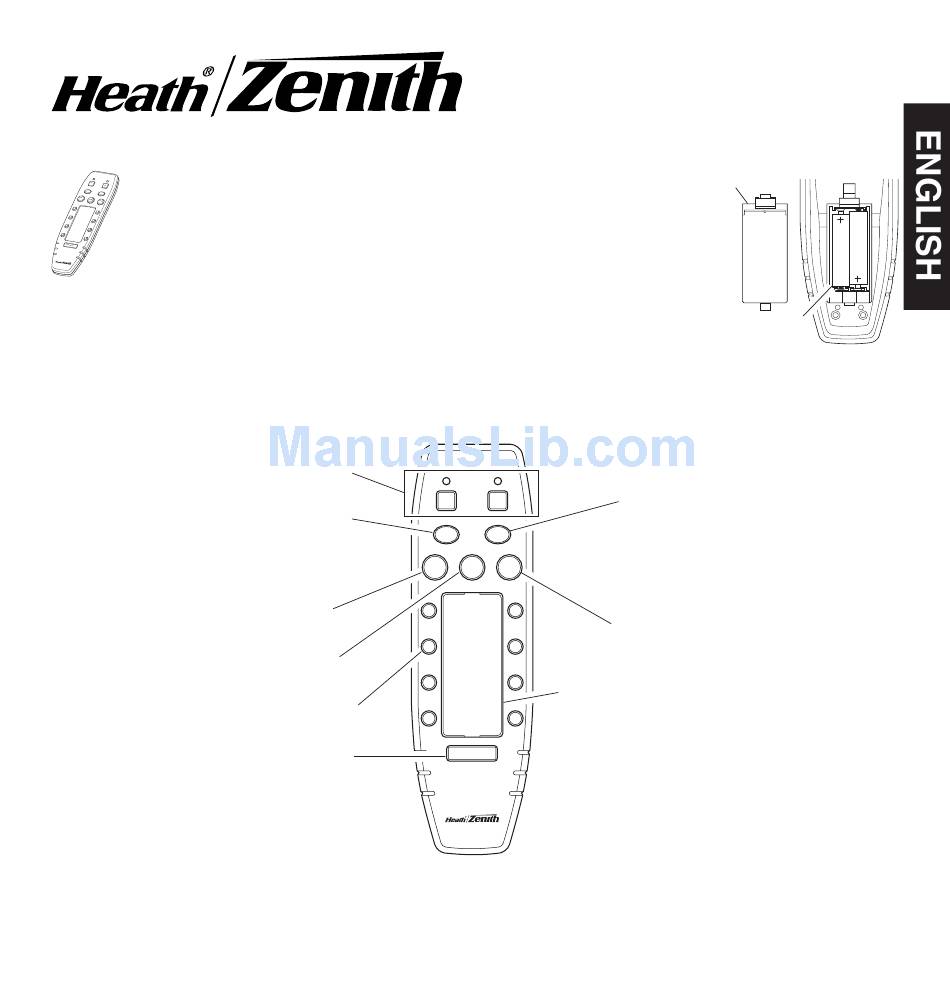

PRoduCt IdENtIFICatIoN
A
ALL ON
ON
Multi-Channel Remote

BattERy INStaLLatIoN

The Multi-Channel Remote
Control is designed for 3
Volt operation:
1. Remove battery cover
on rear of housing by
pushing clip and lifting
up.
2. Install 2-AAA bat-
teries (not included)
according to polarity
markings. For best per-
formance use alkaline
batteries.
ALL OFF - Turns all lights within a
B
Group OFF. Select either Group A or
ALL OFF
DIM OFF
Light Control - OFF
Control Identification - Remove clear plastic film by
placing two fingers on the plastic and "pinching" the
plastic. Remove card. Write on the card to label each
control. Replace card and plastic film.
PANIC
Control
Battery Cover
Two AAA Batteries
(Not Included)
Installing 2-AAA Batteries
B then press ALL OFF.
