Heath Zenith 598-1119-05 User Manual

• Quickly add ON/OFF control of a receptacle without the expense of new wiring.
• Four selectable channels allowing the use of up to four separate systems in the same home.
• Products are UL/cUL and/or FCC/IC tested and approved.
• Operational range of up to 50 feet.
This manual applies to the following products:
O N
2-Button Remote Control
1. The two buttons on the remote
will operate one or more receiver
units with matching channels.
F
O F
O N
Note: Receivers must be at least
10 feet apart for best performance.
2. Push the ON button to turn the
plugged in receiver on or the OFF
button to turn the plugged in re-
ceiver off.
Battery Replacement
The remote control requires a type A23 12 Volt
alkaline battery to operate. The remote control is
shipped with the battery installed. With typical
use, the battery will last approximately one year.
Remove battery when remote will not be used for
an extended period of time.

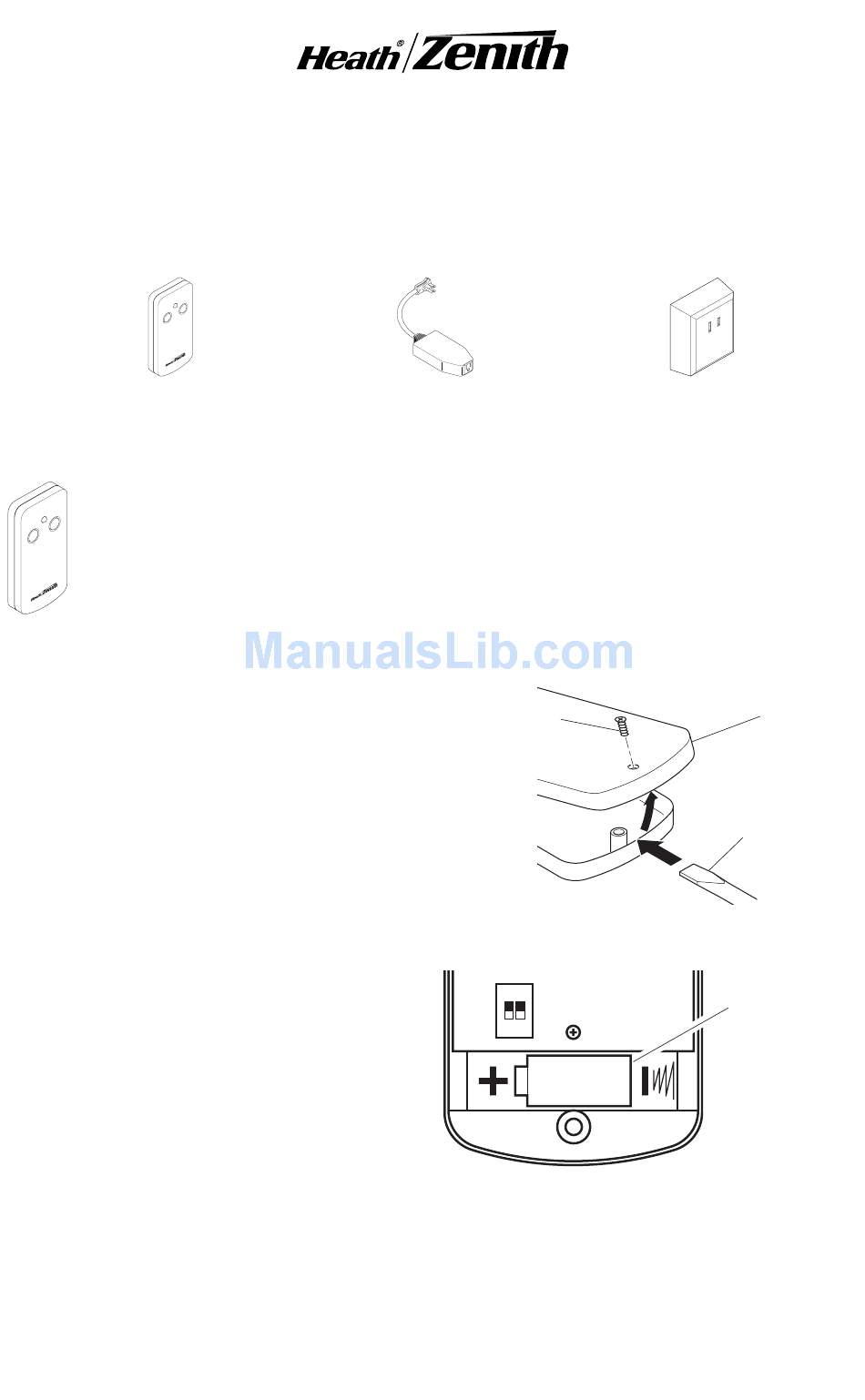

To replace the battery, follow the instructions
below:
1. Place remote control face down on a flat
surface.
2. Remove screw on bottom of remote with a
small phillips-head screwdriver.
© 2003 DESA Specialty Products™
Remote Controlled Products
F
O F
Indoor/Outdoor Receiver
2-BUTTON REMOTE CONTROL
Operation
FEATURES
3. Gently insert a small flat-head screwdriver
between the two halves on the bottom of the
remote and twist. Carefully separate the
back of the remote from the front.
4. Lift the back of the remote up and lay aside.
5. Remove battery. Install replacement bat-
tery. Make sure battery is oriented properly
(see illustration).
6. Reassemble remote in reverse order.
Philips-Head
Screw
Removing Back of Remote Control
ON
1 2
Indoor Plug-In Receiver
12 V
Inside of Remote Control
Remote
Control Back
Flat-Head
Screwdriver
Battery
Compartment
(Type A23)
598-1119-05
