- Page 1 Hand-Held Scanner User’s Manual Regulatory model: HF-1408B Avision Inc. manual-en-250-0859-E-miwand2lite-v100...
- Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 User’s Manual FCC Radio Frequency Interference Statement This product has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Table of Contents Overview ................1-1 Introduction..................1-1 Package Contents ................1-1 Top View ..................1-2 Rear View ..................1-3 Bottom View ................... 1-3 Scanner Indicator Light ..............1-4 LCD Display ..................1-5 Installation ................ 2-1 Precautions..................2-1 Install the Batteries (not included) ............. 2-1 Install micro SD Card (not included) .......... -
Page 5: Overview
Calibration Sheet Quick Start Guide USB Cable Note: Retain the scanner box and packing materials in case you may use them for shipping purposes. Please register the product on our web site at http://www.avision.com to have complete support. -
Page 6: Top View

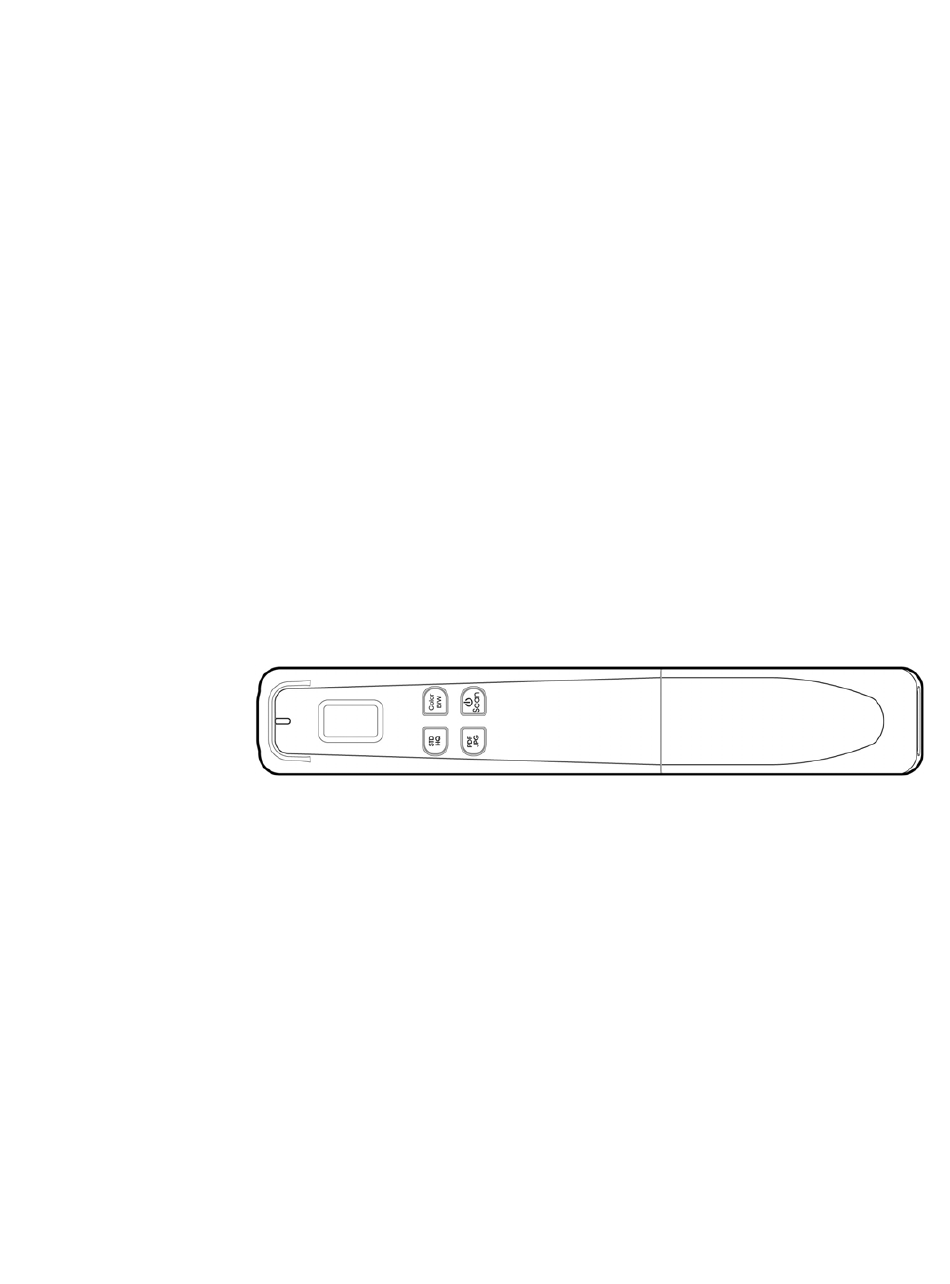

Top View Item Name Description Indicates the operating/warning status of the System indicator scanner. light LCD display Displays battery status and scan settings. Color selector Press to choose Color or Black and white Power/Scan Press to power on, press again to start a scan and button end a scan. -
Page 7: Rear View
User’s Manual Rear View Item Name Description Used to plug the micro end of the USB cable to USB port connect to PC for power charging or images transferring. Memory Used to insert a memory card. card slot Bottom View Name Description The rollers are sensors and should only be rolled in... -
Page 8: Scanner Indicator Light
Scanner Indicator Light Scanner Indicator Light Status Indication Scanner is off or scanner is on and ready for use Powering on for initialization Orange briefly Scanning in progress in STD mode (300 dpi) Green, steadily on Orange, steadily on Scanning in progress in HQ mode (600 dpi) Orange, flashing Scanning in progress in STD HQ mode (1200 dpi) Green or Orange... -
Page 9: Lcd Display
User’s Manual LCD Display Item Name Description Battery status Indicates the power status of the battery. Scan count Indicates scan count. Indicates current file format for the scanned image. File format Choice: PDF, JPEG. Indicates current color mode. Choice: Color, Black Color mode and White. -
Page 10: Installation
User’s Manual Installation 2.1 Precautions Keep the product out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the product in a humid or dusty place. Place the product securely on an even, flat surface. Tilted or uneven surfaces may ... -
Page 11: Install Micro Sd Tm Card (Not Included)
2.3 Install micro SD Card (not included) You must install a micro SD card to the SD slot of the scanner to store your images. Gently press in until the SD card is latched. micro SD card Note: The scanner only accepts micro SD card in FAT16 or FAT32 format. -
Page 12: Operation
User’s Manual Operation 3.1 Suitable and Unsuitable Original Types Suitable for Wand Scanning The scanner used as a wand scanner without the feeder dock is designed to obtain the best scanning results with photo and document up to 216 x 356 mm (8.5 x 14 in.) size. 3.2 Turn on the Scanner Press to turn on the scanner. -
Page 13: Start Wand Scanning (Hand-Held)
Please use the image-editing software application to rotate the scanned image correctly. You may download the free image editing software application – the Avision Image Editing Helper to enhance your image quality after completing product registration on our web site at http://www.avision.com. -
Page 14: View Or Download The Scanned Images (Windows)
User’s Manual 3.5 View or Download the Scanned Images (Windows) To view or download your scanned images, you can either remove the micro SD card and connect it to a card reader, or connect the scanner to your computer via the supplied USB cable (be sure to turn on your scanner). -
Page 15: Computer System Requirements For Usb Connection
3.5.1 Computer System Requirements for USB Connection Operating system: Windows XP, Windows Vista, Windows 7, Windows 8 Mac 10.5 or above (Mac is used only for data transferring) USB port: USB 2.0 /USB 1.1 3.5.2 After Successful Connection When the scanner connects with the PC, an additional drive is listed in the Explorer window titled Removable Disk [drive letter], or the personalized title you may have previously assigned to your microSD card. -
Page 16: View Or Download Images With Ipad
User’s Manual 3.6 View or Download Images with iPad Plug the iPad Camera Connector（not included）to iPad dock connector. Plug the mini USB connector of the supplied USB cable to the Mini USB port of your scanner and plug the USB connector of the supplied USB cable to iPad Camera Connector. The scanned images in the micro SD card of your scanner will be displayed in iPad in 3 seconds. -
Page 17: Maintenance
User’s Manual Maintenance Calibrate the Scanner Calibrate only if the scanned image looks fuzzy, the color looks abnormal (e.g., darker than normal), after 8K+ scanned, or the scanner has been stored without use for a long time. The calibration process resets the Contact Image Sensor to resume its color and sharpness precision. -
Page 18: Clean The Rollers And Glass
Warning: If the calibration process failed, the LED will be flashing and [E06] will be displayed on the screen. Power off the scanner and then repeat the calibration step again. Warning: Do not interrupt the calibration sequence or try to shut off the device while it is ... -
Page 19: Troubleshooting
User’s Manual Troubleshooting Error Messages If there is error during scanning, the LED light will be flashing in red color and error code will be displayed. Refer to the following table to clear the error conditions. Error Problems/Causes How to restore E02/No SD 1. -
Page 20: Frequently Asked Questions And Answers
Frequently asked questions and answers Q： Why does not my scanner turn on? A： The batteries may not enough power or may not be inserted correctly. Q： The image can not be saved into the memory card while scanning? Make sure you have a microSD card inserted correctly, and that A：... - Page 21 A： Yes. Please follow these steps to set a real-time clock for the device: Open your browser and type Avision’s web site (http://www.avision.com) at the URL address. On the Product or Support page, select this mobile scanner and then download a time.txt file for the device.
- Page 22 Q： Why there are strange lines on the scanned document? A： Please check the following: Are there scratches on the original or is the original clean？ Remove any stains or dust from the original before scanning. Clean the rollers and glass with the included cleaning cloth. (Refer to the section “Cleaning the Rollers and Glass)) Q：...
-
Page 23: Technical Service
User’s Manual Technical Service Please register your product on our web site (http://www.avision.com) to have complete technical support. Before contact Avision, please prepare the following information: Scanner serial & revision number (located on the bottom of the scanner); Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);... -
Page 24: Specifications
User’s Manual Specifications Specifications are subject to change without notice. For the most up-to-date and detailed specifications, please refer to our web site at http://www.avision.com Item Description Regulatory model HF-1408B number Image Technology Contact Image Sensor (CIS) Scanner Display TSN LCD (1.2 in.) Max.
