Icron USB 2.0 RG2304N-LAN Quick Start Manual

USB 2.0 RG2304N,
2304S or 2304GE-LAN
4-Port USB LAN or CAT 5e/6/7
Extender System
Quick
Start
Guide
Package Contents:
• USB 2.0 RG2304N/S/GE-LAN Local Extender
• USB 2.0 RG2304N/S/GE-LAN Remote Extender
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

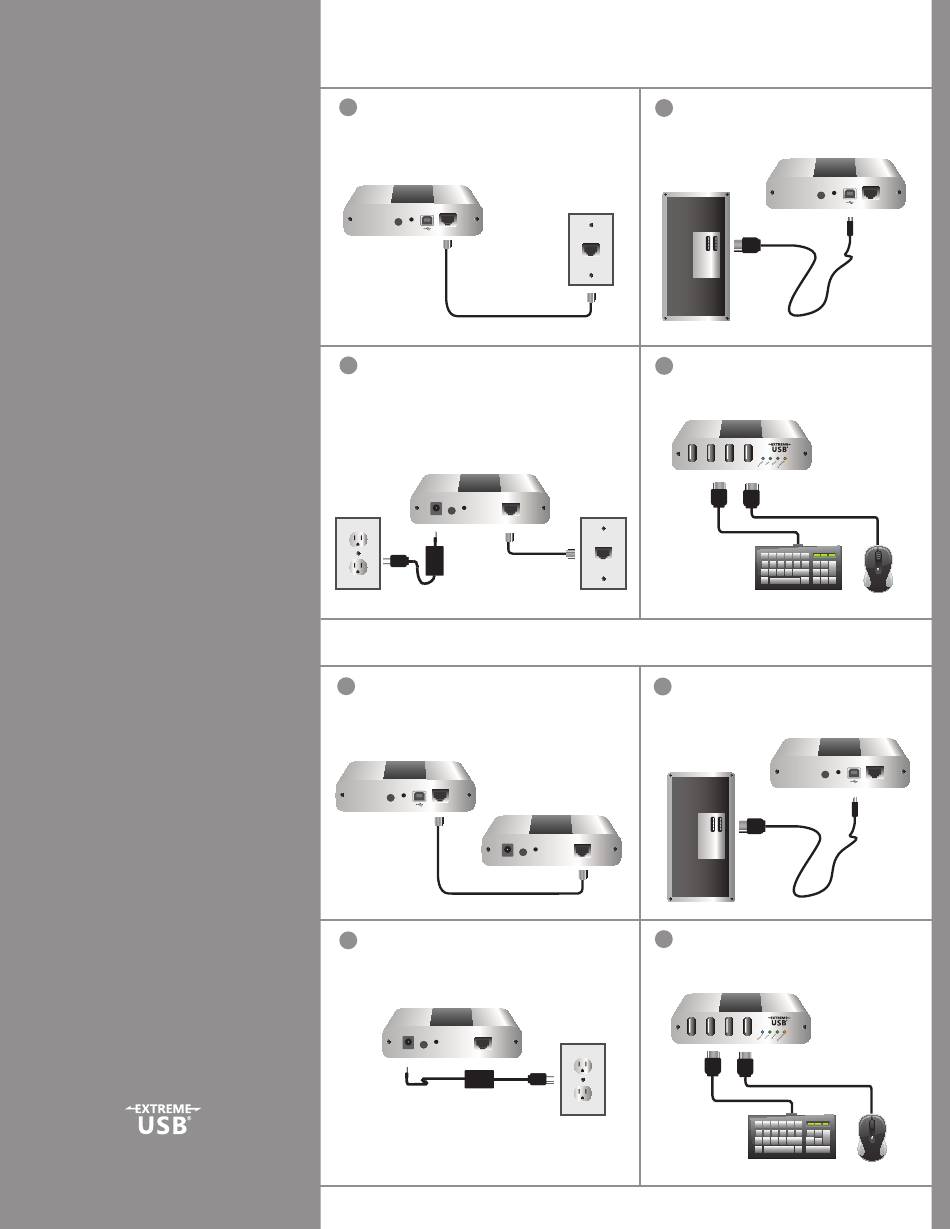

Place the Local Extender where desired
1
1
and connect a CAT 5e/6/7 patch cable from
the Link port (RJ45) to a network switch or
wall network port connected to a switch.

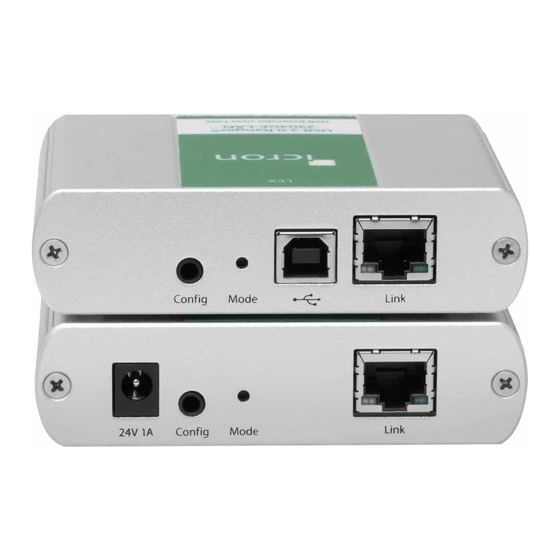

Local Extender (back view)
Mode Link
Config
Max 100m between network devices
Place the Remote Extender where desired.
3
Connect a CAT 5e/6/7 patch cable from the
Link port (RJ45) to a network switch or
wall network port connected to a switch.
Connect the Remote Extender to the AC
adapter and plug it into a power source.
Remote Extender (back view)
24V 1A Config Mode Link
Max 100m between network devices
Place extenders where desired and connect
1
1
the CAT 5e/6/7 extension link cabling to the
Link ports (RJ45) on the Local and Remote
Extenders.
Local Extender (back view)
Remote Extender (back view)
Config Mode Link
24V 1A
Config
Max 100m (CAT 5e/6/7 cable not included)
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender (back view)
24V 1A Config Mode Link
Network Connect
Connect the Local Extender to the
2
computer using the included USB
2.0 cable.
Computer
Attach USB device(s) to the Remote
4
Extender.
Remote Extender (front view)
Direct Connect
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Mode Link
4 Attach USB device(s) to the Remote
Extender.
Remote Extender (front view)
Local Extender (back view)
Config Mode Link
Local Extender (back view)
Config Mode Link
