Icron USB 2.0 RG2301N-LAN Quick Start Manual

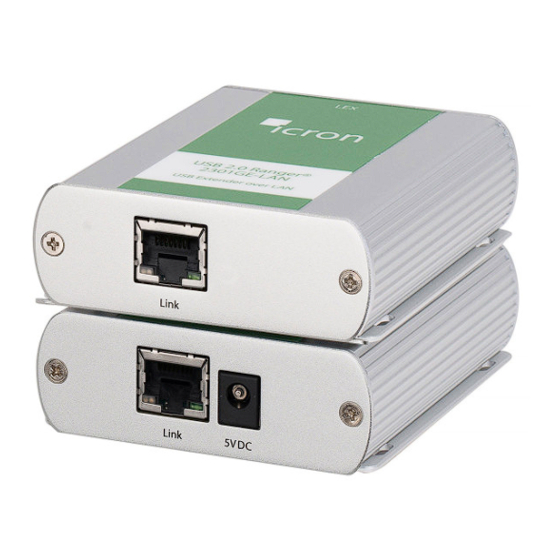

USB 2.0 RG2301N,
2301S or 2301GE-LAN
1-Port USB LAN or CAT 5e/6/7
Extender System
Quick
Start
Guide
Package Contents:
• USB 2.0 RG2301N/S/GE-LAN Local Extender
• USB 2.0 RG2301N/S/GE-LAN Remote Extender
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

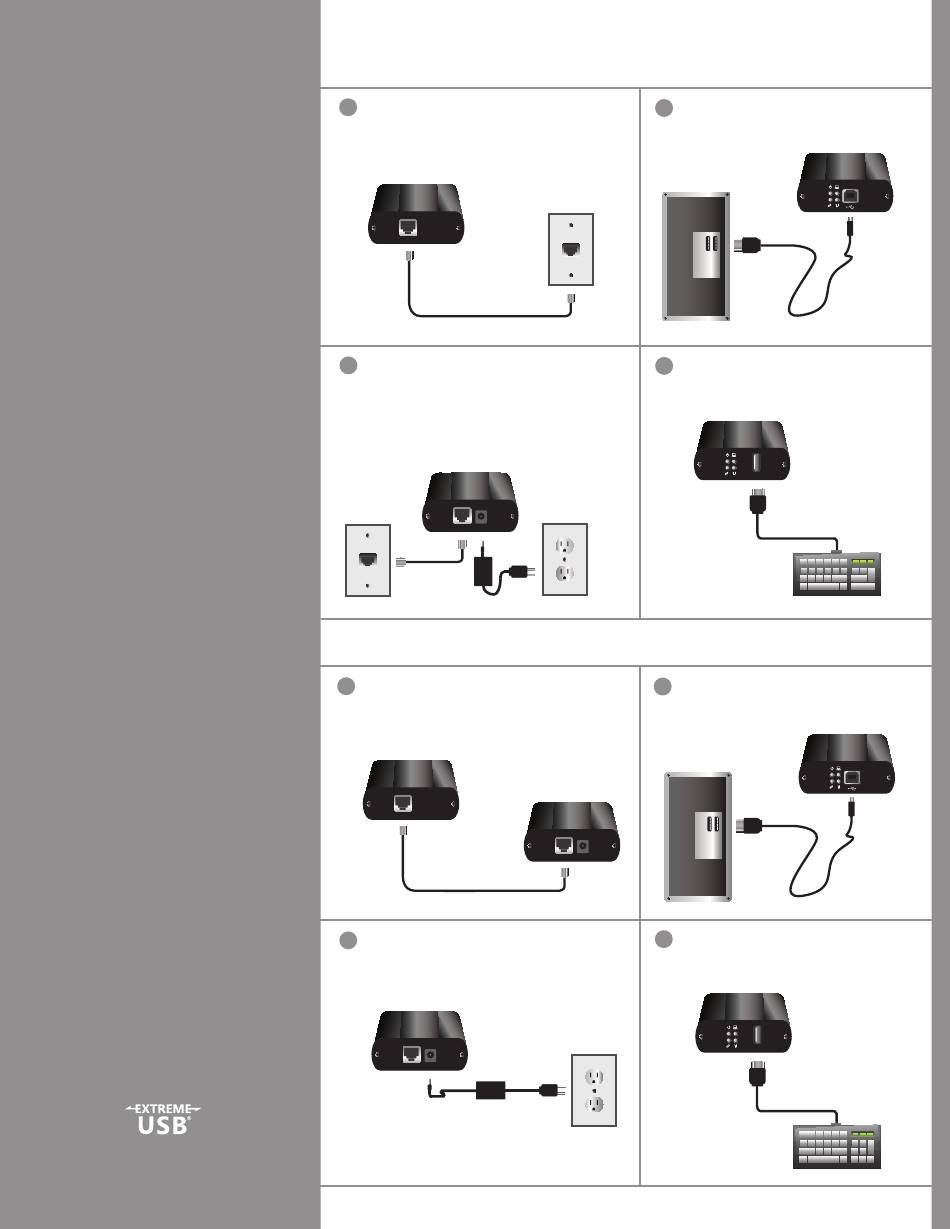

Place the Local Extender where desired
1
1
and connect a CAT 5e/6/7 patch cable from
the Link port (RJ45) to a network switch or
wall network port connected to a switch.
Local Extender (back view)
Link
Max 100m between network devices
Place the Remote Extender where desired.
3
Connect a CAT 5e/6/7 patch cable from
the Link port (RJ45) to a network switch or
wall network port connected to a switch.
Connect the Remote Extender to the AC
adapter and plug it into a power source.
Remote Extender (back view)
Link 5V DC
Max 100m between network devices
Place extenders where desired and connect
1
1
the CAT 5e/6/7 extension link cabling to the
Link ports (RJ45) on the Local and Remote
Extenders.
Local Extender (back view)
Remote Extender (back view)
Link
Max 100m (CAT 5e/6/7 cable not included)
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender (back view)
Link 5V DC
Network Connect
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Attach USB device to the Remote
4
Extender.
Remote Extender (front view)

Direct Connect

Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Link 5V DC
4 Attach USB device to the Remote
Extender.
Remote Extender (front view)
Local Extender (front view)
Local Extender (front view)
