USB 2.0 RG2304
4-Port USB 2.0 100m CAT 5e/6/7
Extender System
Quick
Start
Guide
Package Contents:

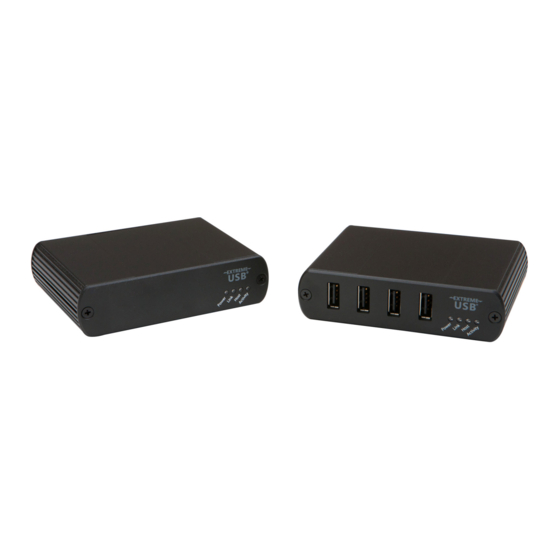

• USB 2.0 RG2304 Local Extender
• USB 2.0 RG2304 Remote Extender
• USB 2.0 Cable
• AC Power Adapter
• Country Specific Power Cord
• Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.

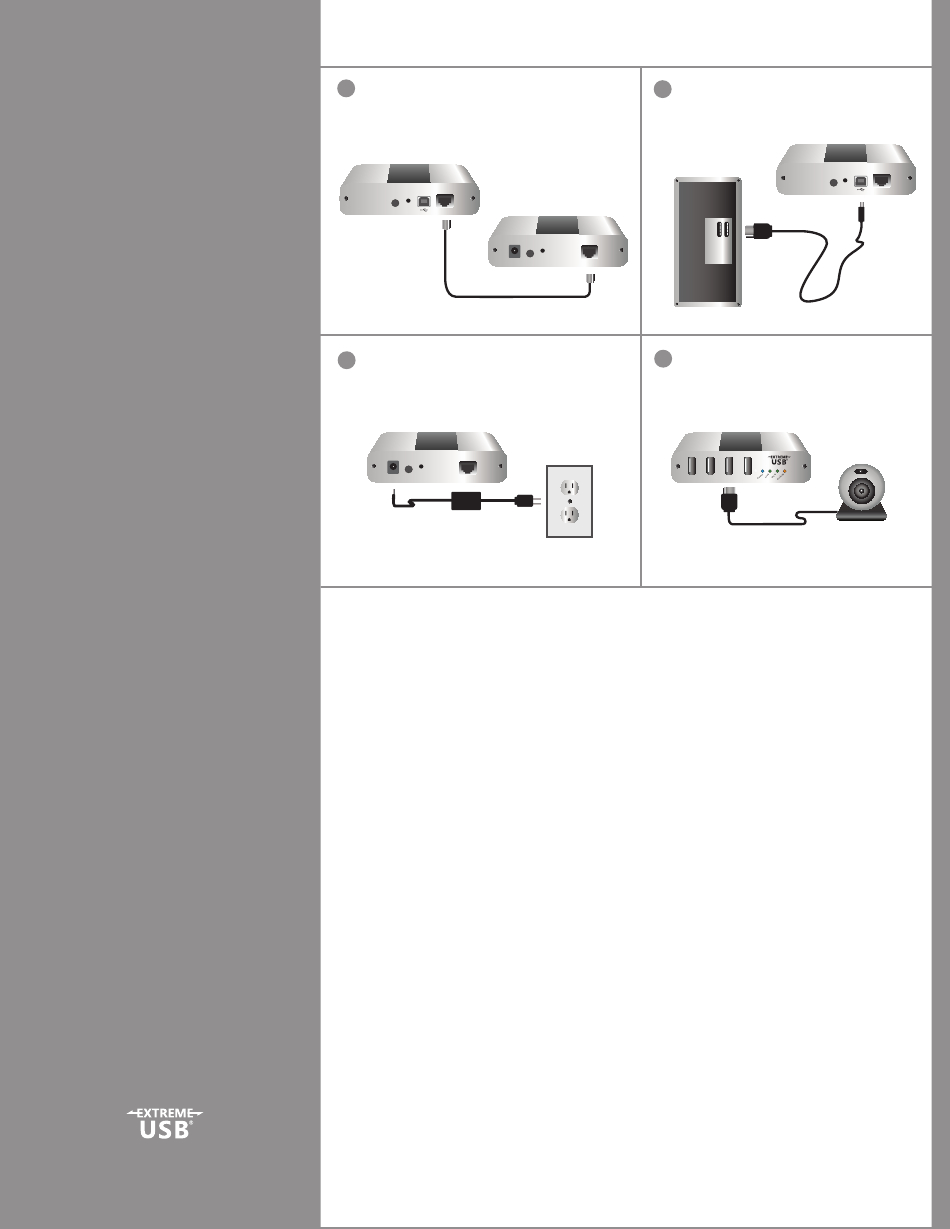

Place extenders where desired and connect
1
1
the CAT 5e/6/7 extension link cabling to the
Link ports (RJ45) on the Local and Remote
Extenders.
Local Extender (back view)
Remote Extender (back view)
Config Mode Link
24V 1A
Max 100m (CAT 5e/6/7 cable not included)
Connect the Remote Extender to the
3
AC adapter and plug it into a power
source.
Remote Extender (back view)
24V 1A Link
Config Mode
Connect the Local Extender to the
2
computer using the included USB
cable.
Computer
Config Mode Link
Attach USB device(s) to the Remote
4
Extender.
Remote Extender (front view)
Local Extender (back view)
Config Mode Link
