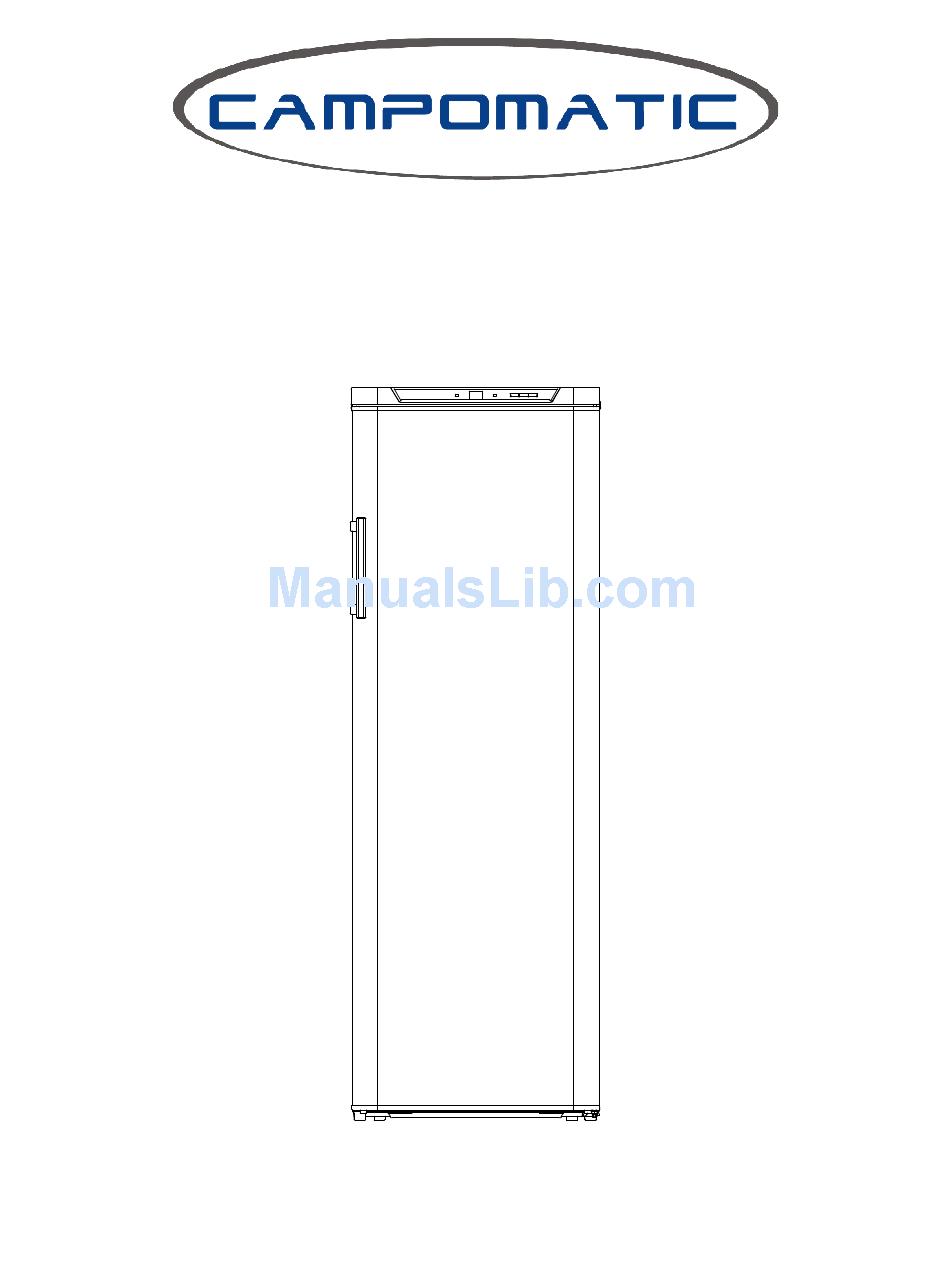

- Page 1 UPRIGHT REFRIGERATOR USER MANUAL FR-450...
-
Page 2: Operating Instructions
Operating Instructions Dear customer, To enable you to use your new REFRIGERATOR effectively and safely, please read this instruction book carefully before you use the appliance, which contains important information for installation, safe use and maintenance of this appliance. Please keep the book for future reference and remember to pass it on to the new owner. -
Page 3: Table Of Contents
INDEX Page No. Important Safety Instructions ......................4 Installation Instructions ........................5 Description of the Appliance ......................6 Using Your Appliance ..........................7 Thermostat Control ..........................8 Change the Reversible Door ....................... 9 Hints and Tips ............................11 Trouble Shooting ............................12 Correct Positioning .......................... -
Page 4: Important Safety Instructions
Important Safety Instructions These warnings are provided in the interest of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are still unsure about the meaning of these warnings, contact the supplier for assistance. Intended use The refrigerator is designed for domestic use only, in detail for storage of edible foods at low temperature. -
Page 5: Installation Instructions
Safety of children Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging materials away from children! Remember to dispose the old appliance that is unusable. Pull out the mains plug, cut off the mains cable, break or remove spring or bolt catches if fixed. -
Page 6: Description Of The Appliance
Ventilation Requirements Ensure that the air can circulate freely around the cabinet. There should be 100mm between the top of the appliance and any overhanging furniture, and a gap of 25mm on either side of the appliance. Ensure that the appliance does not stand on the electrical supply cable. Parts that heat up should not be exposed. -
Page 7: Using Your Appliance
Refrigerator Chamber The refrigerator compartment is for storing food that does not need to be frozen. Temperatures in the refrigerator compartment differ in each section, to accommodate different types of food, as shown in the diagram below: ① Suitable for storing cake, cooked-foods, sweetmeats, canned foods, meat, dairy products, etc. ②... -
Page 8: Thermostat Control
Before use Remove all securing tapes. Wash the inside of the appliance with lukewarm water added with a little bicarbonate of soda (5ml to 0.5 liter of water). Do not use soap or detergent as the smell may linger. After cleaning, dry the appliance thoroughly. To start the appliance Operating instructions 1. -
Page 9: Change The Reversible Door
Change the Reversible Door The refrigerator is supplied with the door hinges on the right side. If you wish to change the opening direction, follow the instructions below: Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. - Page 10 Insert top hinge bracket into the Remove blanking plates from Cover the holes left by the recess on top of the door. Bolt the door handle to reveal removed screws with the into place using the three bolts screws. Remove the two screws blanking plates.
-
Page 11: Hints And Tips
Hints and Tips Food storage Avoid buying frozen food if you cannot store it. Storage in original food containers is advisable. Place already frozen foods into the refrigerator as soon as possible, and be sure to: Not store too many items in the drawers. ... -
Page 12: Trouble Shooting
Trouble Shooting Noises during Operation The following noises are normal characteristics of the appliance when it works: Whenever the compressor switches on or off, a click can be heard. As soon as the compressor is in operation, you can hear it humming. ... -
Page 13: Correct Positioning
Correct Positioning Good ventilation For the purpose of safety, reliance, low power consumption and durability to your fridge, a space should be left around the refrigerator. please keep 100mm of space between the back of the appliance and the wall. Power supply The refrigerator is only suitable to a single–phase alternating current of 220-240V, (50±1) Hz. - Page 14 Level Surface The surface on which fridge is to be placed, must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. if the fridge is not on level, adjust the casters. Protection from Heat The fridge should be far away from any heat source or direct sunshine.
