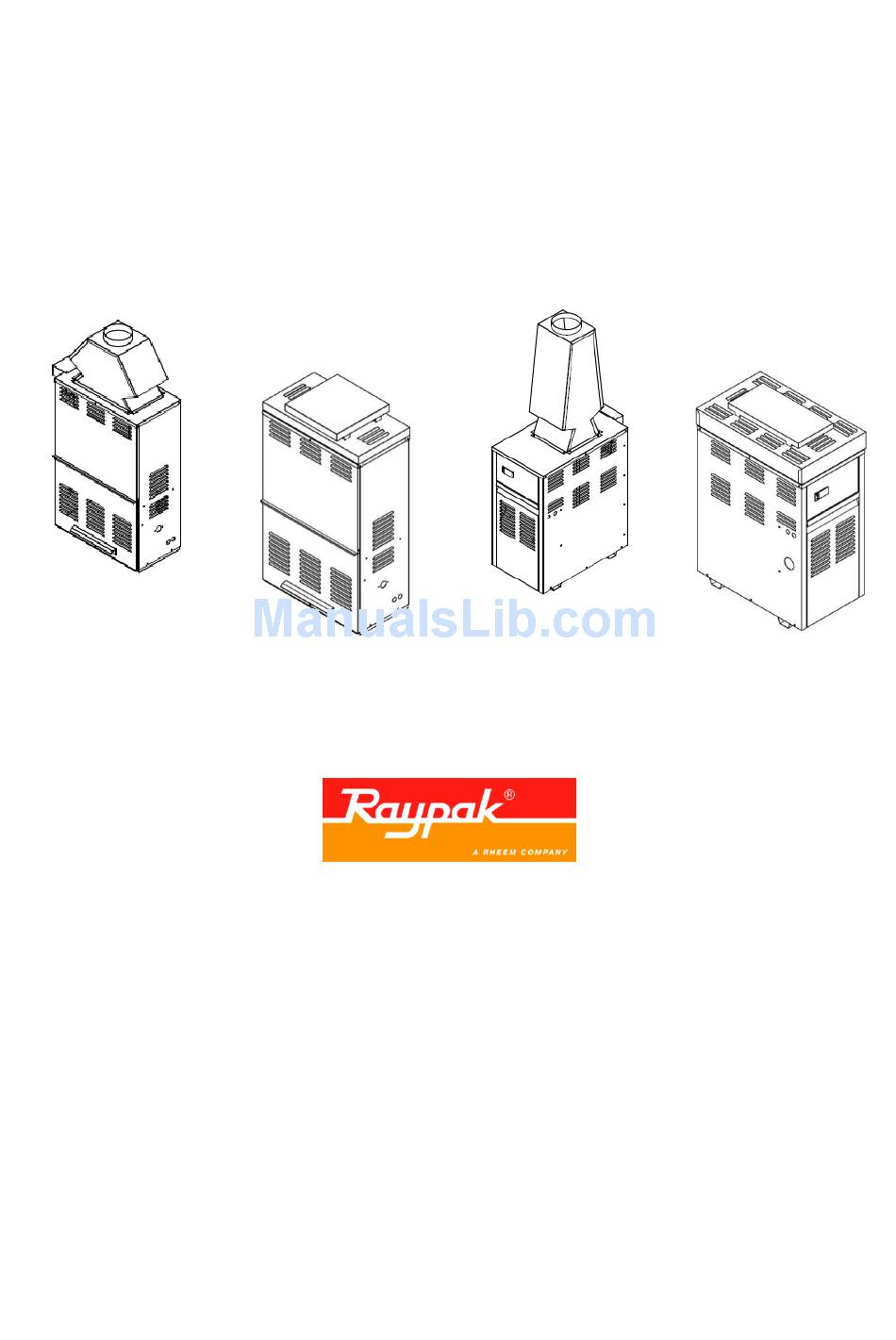

Owner’s Guide Installation Instructions Raypak Water Heaters Models Types NCO, NCH B0147 PCO, PCH This water heater must be installed and serviced by a qualified person. Please leave this guide with a responsible officer. - Page 2 Notice to Victorian Customers from the Victorian Plumbing Industry Commission This water heater must be installed by a licensed person as required by The Victorian Building Act 1993 Only a licensed person will give you a Compliance Certificate, showing that the work complies with all the relevant standards.
-
Page 3: Table Of Contents
LOCATION OF CONTROLS ............................26 SAFETY PRECAUTIONS ............................27 COMMISSIONING ..............................28 OPERATING THE WATER HEATER ......................... 29 BURNER PRESSURE ADJUSTMENT ........................30 TEMPERATURE CONTROL ............................32 SERVICE PROCEDURES ............................39 WATER SUPPLIES ..............................40 RAYPAK WATER HEATER WARRANTY – AUSTRALIA ONLY ................43... -
Page 4: About Your Water Heater
MODEL TYPE ® Congratulations for choosing a Raypak water heater. The model you have chosen is suitable for either indoor or outdoor installation depending on use of the appropriate installation kit. - Page 5 Raypak distributor, qualified installer, or Rheem Service agent. The Raypak warranty can become void if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions.
- Page 6 ABOUT YOUR WATER HEATER TO TURN ON THE WATER HEATER WARNING! If you smell gas do not attempt to turn on the water heater. Fill the system with water (refer to “To Fill the Water Heater” on page 29) Open the gas isolation valve fully at the inlet to the water heater. Plug in the power supply cord at the power outlet.
-
Page 7: How Your Water Heater Works
HOW YOUR WATER HEATER WORKS The water heater consists of a gas burner, a combustion chamber lined with refractory tiles and a heat-exchanger made of finned copper tubes. Hot flue gases from the burner pass between the fins on the heat exchanger tubes and heat is transferred first to the fins and then by conduction into the water. - Page 8 HOW YOUR WATER HEATER WORKS BURNER IGNITION 147 Hi/Lo Models The water heater utilises an automatic burner ignition system, which lights the main burner gas when the thermostat registers a need for heating. A hot surface igniter (HSI) heats up when there is a call for heating. When the HSI probe is up to temperature, a valve opens allowing gas to the main burner and this is ignited by the HSI probe.
-
Page 9: Save A Service Call
WARNING: Hotter water increases the risk of scald injury. Water heater size Do you have the correct size water heater for your requirements? The sizing guide in the Raypak sales literature and on the Rheem website (www.rheem.com.au) suggests average sizes that may be needed. - Page 10 SAVE A SERVICE CALL BURNER WILL NOT LIGHT Is there gas to the water heater? Check the gas isolation valve on the gas supply line is open. Is there a normal gas supply to the rest of the premises? Try lighting another gas appliance. If there is no gas call your gas provider. Is the ignition system ‘locked out’? Try resetting the water heater.
-
Page 11: Regular Care
REGULAR CARE SERVICE For efficient operation the water heater should be serviced annually by your nearest Rheem Service Department or Accredited Service Agent. Only genuine replacement parts should be used on this water heater. WARNING: Servicing of a gas water heater should only be carried out by qualified personnel. MINOR SIX MONTH MAINTENANCE Refer to Service Procedures on page 39 ANNUAL SERVICE... -
Page 12: Installation
INSTALLATION THIS WATER HEATER IS NOT SUITABLE FOR POOL HEATING INSTALLATION STANDARDS The water heater must be installed: by a qualified person, and in accordance the installation instructions, and in compliance with Standards AS/NZS 3500.4, AS 5601 or AS/NZS 5601.1, as applicable under local regulations, and all local codes and regulatory authority requirements. - Page 13 INSTALLATION SAFE TRAY Where damage to property can occur in the event of the water heater leaking, the water heater must be installed in a safe tray. Construction, installation and draining of a safe tray must comply with AS/NZS 3500.4 and all local codes and regulatory authority requirements.
- Page 14 INSTALLATION OUTDOOR INSTALLATION For servicing allow at least 750 mm in front of the water heater for burner removal and 450 mm on the water connections side for heat exchanger servicing. The water heater must NOT be installed inside any roofed structure or under eaves, roof overhangs, or pool decks.
- Page 15 INSTALLATION COLD WATER SUPPLY Water Heating Applications Where the cold water supply pressure exceeds that shown in the table below, an approved pressure limiting valve is required and should be fitted as shown in the installation diagram (refer to diagram on page 18). Mechanical/Process Heating Applications A cold water feed regulator (Pressure Reducing Valve) should be installed on the cold water make up line.
- Page 16 INSTALLATION HOT WATER DELIVERY (WATER HEATING APPLICATIONS) This water heater can deliver water at temperatures which can cause scalding. It is necessary and we recommend that a temperature limiting device be fitted between the water heating system and the hot water outlets in any ablution and public areas such as bathrooms, ensuites or public amenities, to reduce the risk of scalding.
- Page 17 INSTALLATION DIMENSIONS AND TECHNICAL DATA Input (MJ/h) Natural Gas Output (kW) Input (MJ/h) Propane Gas Output (kW) Power (W) Electrical Rating 240V 50 Hz Current (A) 0.21 Weight empty Flue Connection 147 Models...
-
Page 18: Connections - Plumbing
CONNECTIONS – PLUMBING IMPORTANT: When installing a new water heater to an old or existing system, it is a requirement that the system and its equipment be thoroughly inspected and if necessary, drained and flushed with clean fresh water, before the new water heater is connected. - Page 19 CONNECTIONS - PLUMBING The table below provides indicative pipe and pump sizes for typical installations Minimum Manifold Header Model Pump Branch Size Size Required (mm) Speed inches Series Unit Units Units Units 20-60N PUMP SELECTION In order to obtain the best possible water flow in the system a correctly sized pump must be installed. Refer to the Flow Rate and Pressure Drop table below and allow for the system head pressure when sizing the pump.
- Page 20 CONNECTIONS - PLUMBING MECHANICAL HEATING All high points of a mechanical heating system should be provided with manual bleed points or fitted with automatic air vents. The design of the system must be such that the water heater is provided with adequate water flow and pressure at all times (refer to „Pump Selection‟...
-
Page 21: Connections - Electrical
CONNECTIONS – ELECTRICAL All electrical work and permanent wiring must be carried out by a qualified person and in accordance with the Wiring Rules AS/NZS 3000 and local authority requirements. The water heater is supplied with a 1.8 metre lead and plug and requires a 240 V 50 Hz general purpose outlet (GPO) to be located within 1.0 metre of the installation. - Page 22 CONNECTIONS - ELECTRICAL WIRING A POWER FLUED SYSTEM TO THE WATER HEATER An indoor model can be wired to a power flued system. A power flued system must be designed by a qualified person to suit the particular installation. The power flue system must be interlocked with the water heater(s) to prevent the water heater(s) from operating if the power flue is not working.
- Page 23 CONNECTIONS - ELECTRICAL WIRING DIAGRAM – 147 ON/OFF MODELS...
- Page 24 CONNECTIONS - ELECTRICAL WIRING DIAGRAM – 147 HI/LO MODELS...
- Page 25 CONNECTIONS - ELECTRICAL MULTI PUMP OPTION - MECHANICAL HEATING SYSTEMS NOTE: When connecting additional controls the relays and timers etc must be located in an additional enclosure NOT fitted within the water heater. For outdoor installations the enclosure MUST be weatherproof.
-
Page 26: Location Of Controls
LOCATION OF CONTROLS THERMOSTAT (1) On/Off Models 147 On/Off type water heaters are fitted with an Eliwell IC902 electronic thermostat with its sensor located in the inlet side of the water heater header. On/Off type controls are typically used where the system load is constant (e.g. hot water supplied from a storage tank or in floor slab heating). -
Page 27: Safety Precautions
SAFETY PRECAUTIONS Ceramic fire tile refractories are used in Raypak water heaters. Refractories must be treated with care because they can be harmful by inhalation and irritating to the skin, eyes and respiratory system. DURING FIRST FIRING OF THE WATER HEATER Fumes and smoke may be produced. -
Page 28: Commissioning
COMMISSIONING MUST ONLY BE UNDERTAKEN BY AN APPROPRIATELY LICENSED PERSON WHO IS FAMILIAR WITH SAFE COMMISSIONING PROCEDURES. Ceramic fire tile refractories are used in Raypak water heaters. Refractories must be treated with care because they can be harmful by inhalation and irritating to the skin, eyes and respiratory system. -
Page 29: Operating The Water Heater
OPERATING THE WATER HEATER FOR YOUR SAFETY READ BEFORE LIGHTING TO FILL THE WATER HEATER Water Heating Applications Open all of the hot water tap(s) in the building (don‟t forget the showers) and supply cock(s) and valve(s) in the system. Open the isolation valves fully on the cold, flow / return and hot water branches to the storage tank(s) installed in a bank. -
Page 30: Burner Pressure Adjustment
BURNER PRESSURE ADJUSTMENT GAS INLET PRESSURE IMPORTANT – CHECK the gas supply pressure at the inlet to the water heater with the water heater and all other gas burning appliances in the premises operating (burners alight). The minimum gas supply pressures are: Natural Gas - 1.13 kPa Propane - 2.75 kPa If this minimum cannot be achieved, it may indicate the meter or the gas line to the water heater is undersized. - Page 31 BURNER PRESSURE ADJUSTMENT All Hi/Lo Models To adjust the burner pressure on a water heater with a White Rodgers 36G54 Type 216 Hi/Lo gas control, proceed as follows: Remove the screw from the outlet pressure boss. Attach a manometer to the outlet pressure boss.
-
Page 32: Temperature Control
TEMPERATURE CONTROL HOTTER WATER INCREASES THE RISK OF SCALD INJURY. This water heater can deliver water at temperatures which can cause scalding. Water heating applications: It is necessary and we recommend that a temperature limiting device be fitted between the water heating system and the hot water outlets in any ablution and public areas such as bathrooms, ensuites or public amenities, to reduce the risk of scalding. - Page 33 TEMPERATURE CONTROL MACHINE STATUS MENU To access the “Machine Status “menu, press and quickly release the “SET” key. The “Set” folder label appears. To view the Setpoint value, press the “SET” key again. The Setpoint value appears on the display. To change the Setpoint value, use the “UP”...
- Page 34 TEMPERATURE CONTROL Programming Parameters – Eliwell IC902 Thermostat (On/Off models) Raypak Parameter Unit Minimum Maximum Setting Set point differential (diF) °C/°F Set point Maximum (HSE) °C/°F Set point Minimum (LSE) °C/°F Heat / Cool mode (HC) (Ont) (Oft) Delay, time relay on (dOn)
- Page 35 TEMPERATURE CONTROL Programming Parameters – Eliwell IC915 Thermostat (Hi/Lo models) Parameter Description Range Raypak Setting REGULATOR 1 (folder with “rE1” label) Heat/Cool Mode. If set to H the generic regulator actuates for hot operation. If set to C the generic...
- Page 36 TEMPERATURE CONTROL REGULATOR 2 PROTECTIVE DEVICE (folder with “rE2” label) 0...250 Delay time in activating the regulator relay after switch-on of instrument. Delay after switch off. The indicated time must elapse between 0...250 switch-off of the regulator relay and the successive switch-on. Delay between switch-ons.
- Page 37 TEMPERATURE CONTROL instrument Format. Erasing all data in the copy card. PLEASE NOTE using “Fr” parameter (copy card formatting) the data within the copy card will be lost permanently. The operation cannot be cancelled. After using the copy Card device the controller must be switch off and switch on again...
- Page 38 TEMPERATURE CONTROL HIGH-LIMIT THERMOSTAT ADUSTMENT A Honeywell high limit thermostat is used on both On/Off and Hi/Lo water heaters (refer to “Location of Controls” on page 26. The thermostat has a capillary style temperature sensor located in a well (pocket) fitted in the outlet header and senses the temperature of the water leaving the water heater.
-
Page 39: Service Procedures
ONLY AN AUTHORISED PERSON MAY REPAIR OR SERVICE A GAS APPLIANCE. Ceramic fire tile refractories are used in Raypak water heaters. Refractories must be treated with care because they can be harmful by inhalation and irritating to the skin, eyes and respiratory system. -
Page 40: Water Supplies
Where the saturation index exceeds +0.40. the water is very scaling. An expansion control valve must be fitted on the cold water line after the non-return valve to protect and for the Raypak warranty to apply to the pressure relief valve. - Page 41 This page is intentionally blank.
- Page 42 This page is intentionally blank.
-
Page 43: Raypak Water Heater Warranty - Australia Only
WARRANTY RAYPAK WATER HEATER WARRANTY – AUSTRALIA ONLY RAYPAK WATER HEATER MODELS B0147 1. THE RHEEM WARRANTY – GENERAL 1.1 This warranty is given by Rheem Australia Pty Limited ABN 21 098 823 511 of 1 Alan Street, Rydalmere New South Wales. - Page 44 6.2 The Rheem warranty (set out above) is in addition to any rights and remedies that you may have under the Australian Consumer Law. RHEEM AUSTRALIA PTY LTD, A.B.N. 21 098 823 511, www.rheem.com.au www.raypak.com.au RAYPAK AUSTRALIA PTY LTD A.B.N. 65 078 743 414, For Service Telephone 131 031 AUSTRALIA or 0800 657 335 NEW ZEALAND Revision Date: January 2012 96109147F...
