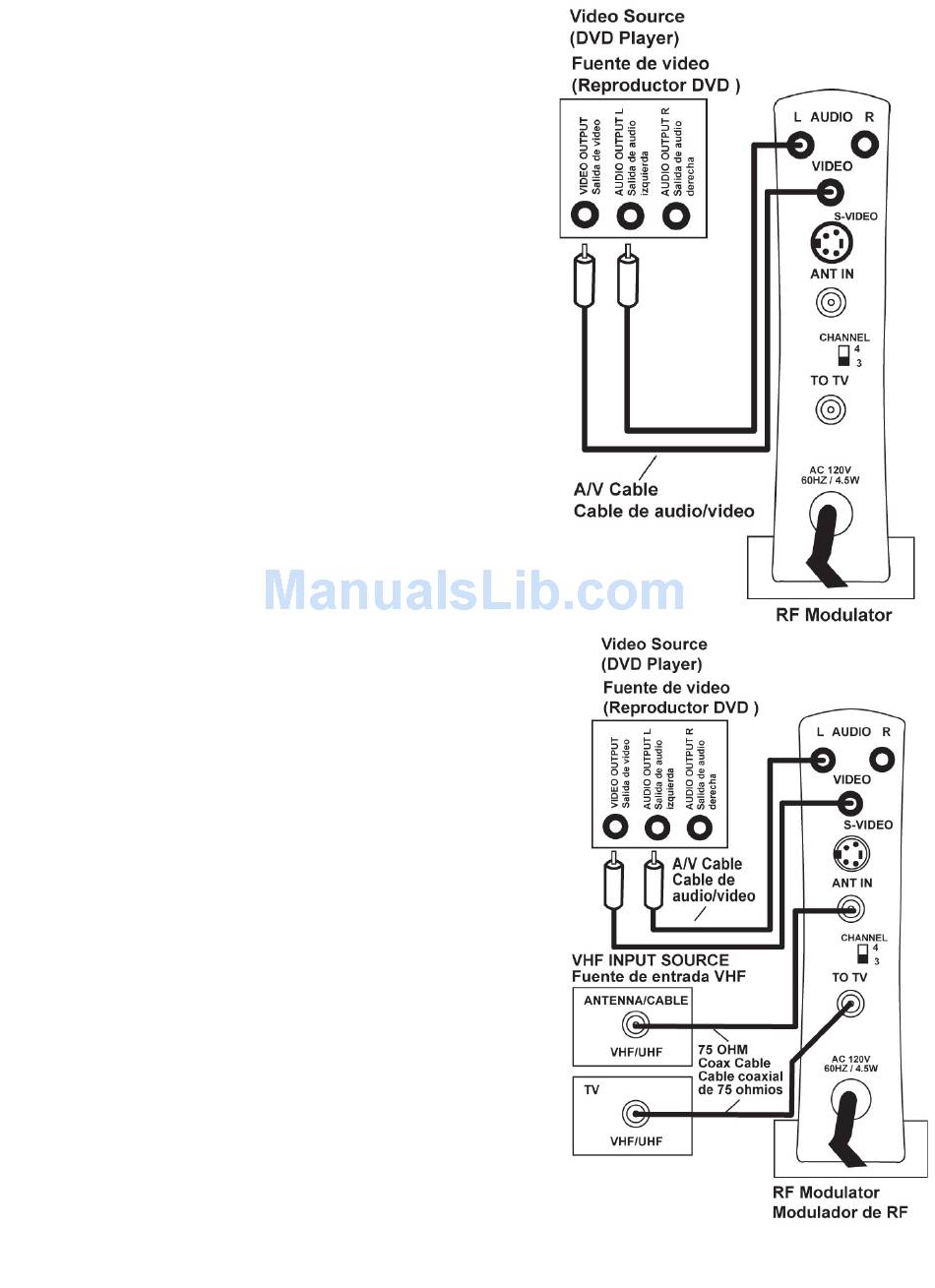

If your video source is monaural:
1. Plug the connectors on one end of an
A/V cable into the video and audio in-
put jacks on the RF Modulator (using
the AUDIO L jack).
2. Plug the cable's other ends into the
video and audio jacks on the video
source.
3. Connect the 75 ohm coaxial cables
to the RF Modulator following these
guidelines.
4. Plug the RF Modulator's power cord
into a standard AC outlet.
If your TV is already connected to
another VHF input source (such as
cable, an antenna, or a VCR, for
example):
1. Disconnect the VHF input source's
75 ohm cable from the TV's 75 ohm
VHF/UHF terminal, and reconnect it
to the RF Modulator's Ant In terminal.
2. Connect a 75 ohm coaxial cable
between the To TV terminal on the RF
Modulator and the 75 ohm VHF/UHF
terminal on your TV.
3. Plug the RF Modulator's power cord
into a standard AC outlet.
