Snom 300 User Manual

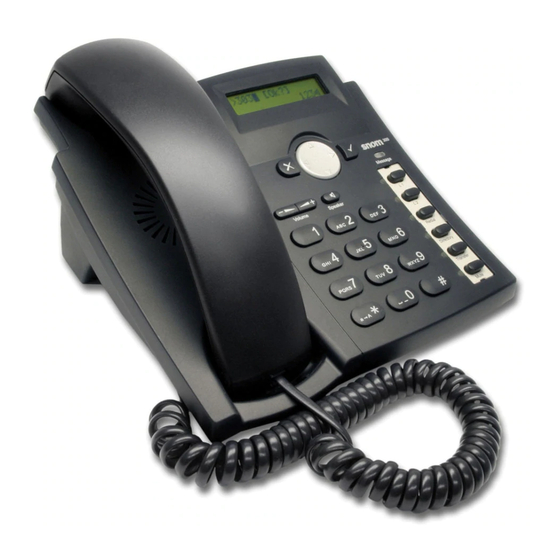

Snom 300
Hide thumbs Also See for 300:

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual
Thank you for purchasing SNOM 300..
Package Contents:
• SNOM 300 Body
• Handset
• 5V Power Adapter
• Ethernet Cable
• Phone Cord
• User's Manual
Disclaimer
• Product functions and specifications are subject to change without prior notice.
• Quality of call (e.g. choppy line, noise, etc.) may be affected by company's network
environment.
• Our company does not assume any responsibilities for a difference in call quality due
to personal hearing impairment.
• Our company is not responsible for service that may not be available outside the
country.
• SNOM 300 may temporarily suspend the service for routine maintenance without prior
notice.
• We would not assume any liability for product failure due to device (phone)
malfunction.
Cleaning
To clean the SNOM 300, use an anti-static cloth. Please avoid cleaning liquids as they might
damage the surface or the internal electronics of the phone.

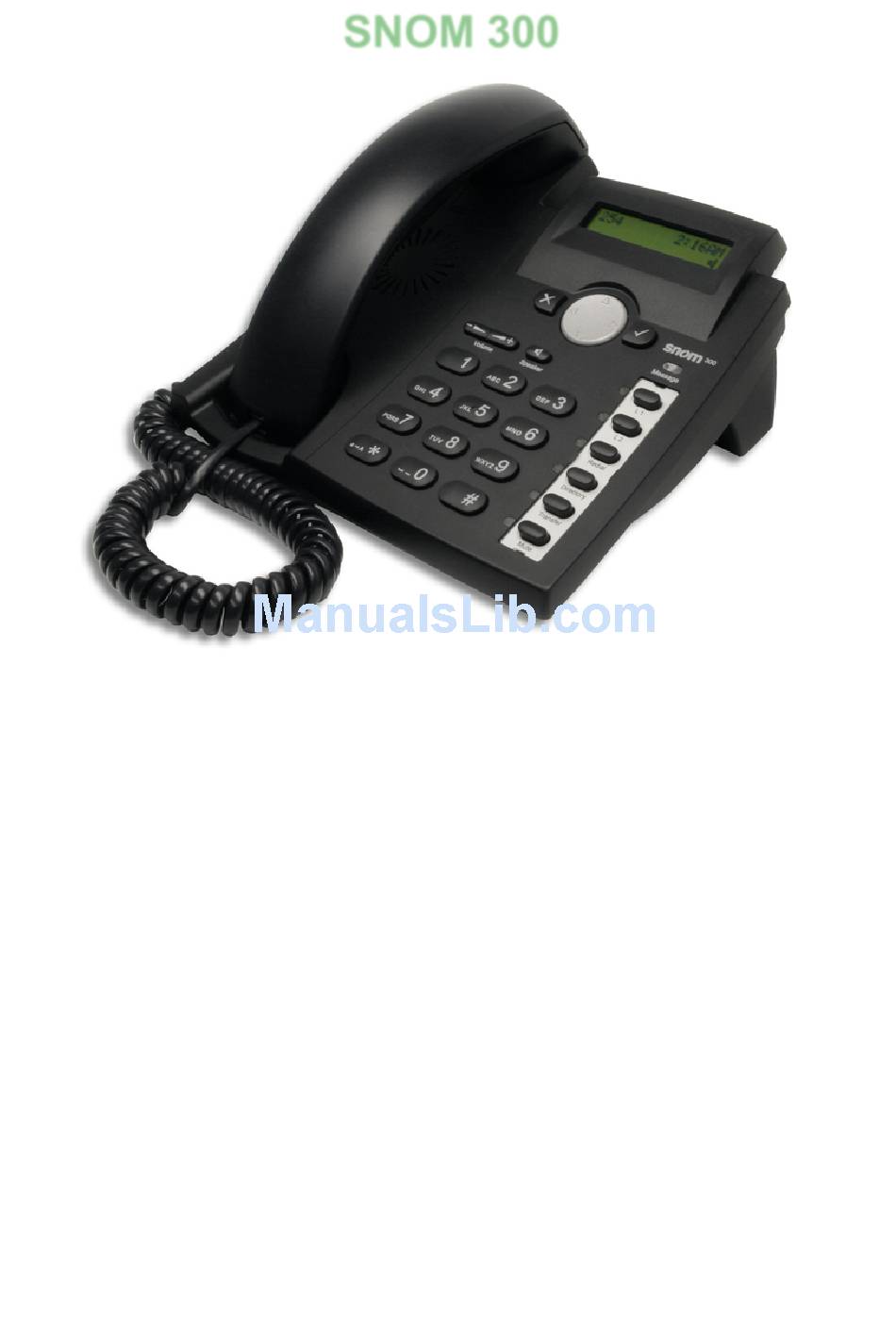

SNOM 300

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Snom 300

Summary of Contents for Snom 300

  • Page 1: Snom 300

    • We would not assume any liability for product failure due to device (phone) malfunction. Cleaning To clean the SNOM 300, use an anti-static cloth. Please avoid cleaning liquids as they might damage the surface or the internal electronics of the phone.  ...

  • Page 2: Installation

    Installation 1. Plug the Ethernet (network cable into the RJ 45 connector labeled [Net] and plug the other end into the network side to establish a data link. 2. The second RJ45 connector, labeled [PC], is for daisy-chaining further Ethernet devices without the need for a second Ethernet connection line.
  • Page 3   3  ...
  • Page 4   4  ...
  • Page 5   5  ...
  • Page 6   6  ...
  • Page 7   7  ...
  • Page 8   8  ...
  • Page 9   9  ...
  • Page 10   10  ...
  • Page 11 General Settings 1. Verify device’s IP Address. Press the Navigation key [Down Arrow] à Select [Information IPAdr] à Press enter [Check] button. 2. Open Web browser and type the device’s IP Address. Format: http://IPAddress Example: IP Address 192.168.001.002 à [http://192.168.2].  ...
  • Page 12 3. On the [Setup] options, select [Identity 1]. Display Name and Account: Enter [Unique ID]. Password: Enter [Registered Password] (sent thru mail). * If you changed password, enter your new password. Registrar and Outbound Proxy: Enter [VoIP Address]. Authentication Username: Enter [Unique ID]. Display Text for Idle Screen: Enter [Extension Number].
  • Page 13 4. On the [Setup] options, select [Identity 1], then click [NAT]. Keepalive Interval (seconds): Enter [20] seconds. * Click [Apply] to save changes.   13  ...
  • Page 14 5. On the [Setup] options, select [Preferences]. Web Interface Language: Select [English]. Language: Select [English]. Number Display Style: Select [Number]. Tone Scheme: Select [United States]. * Click [Apply] to save changes.   14  ...
  • Page 15 6. On the [Setup] options, select [Advanced]. NTP Time Server: Enter [ntp.jst.mfeed.ad.jp]. NTP Refresh Time (sec): Select time zone. * Click [Apply] to save changes.   15  ...
  • Page 16 7. On the [Setup] options, select [Advanced], then click [Audio]. Call Waiting Indication: Select [OFF]. * Click [Apply] to save changes.   16  ...
  • Page 17 8. On the [Setup] options, select [Advanced], then click [SIP/RIP]. Time Support (RFC4028): Select [OFF]. * Click [Apply] to save changes.   17  ...
  • Page 18 9. On the [Setup] options, select [Advanced], then click [Update]. Update Policy: Select [Never update, do not load settings]. Subscribe Config: Select [OFF]. PnP Config: Select [ON]. * Click [Apply] to save changes. * Click [Reboot] to reboot the device to apply all changes.  ...
  • Page 19 10. On the [Setup] options, select [Function Keys]. Function keys: L1 and L2: Device’s extension channel. Both lines can be used simultaneously. Redial: Press to call the previous dialed number. Directory: Phonebook Transfer: Transfer button *Agile PRO is not supported. Put the other party on hold and press [Transfer], then, dial the destination extension number.
  • Page 20 11. On the [Operation] options, select [Home]. VoIPXXXX.agile.ne.jp   View Call History   1. Verify from Settings Screen Dialed Numbers: List of previously called/dialed numbers. Missed Calls: List of calls that is terminated before being answered by its intended recipient. Received Calls: List of calls answered by the call recipient.
  • Page 21 12. On the [Operation] options, select [Directory]. Setting Blocked Numbers • Set blocked numbers in the [Add or Edit Entry] area. Example: Name: Type the name of the contact. Number: Type the number @XXX.XXX.XXX.XXXX (Server IP address). Contact Type: Select [Deny List]. Outgoing Identity: [Active] Then, click [Add/Edit].
  • Page 22 13. On the [Setup] options, select [Identity 1], then click [SIP]. * You can set up the dial plan for this line here. With a dial plan, you can match user input (digits via keyboard) to specific actions like dialing, using a distinct outgoing identity, etc. * Use Agile phone’s extension number for transfers.
  • Page 23 3.X/4.X/5.X to 6.X or 6.X to 7.X. Use [Automatic Updates] instead. 3. Automatic update: This method updates your phone firmware to the current official release. Check your SNOM’s firmware current version: 1. Press [Navigation Key – Down Arrow] à [Up Arrow] à [Left Side Arrow] à then, press [Enter (Check)].
  • Page 24 [Disconnected Network] displayed during an outgoing call. • Currently used version is not updated. • IP address in the web browser and device does not match. IP address: [http://IP address of the device/dummy.htm?settings=save&ip- _frag_enable=on] • Firmware may not be updated. * Configuration of settings depends on the version of the device.

  • Page 25: Precautions & Safety Instructions

    Precautions & Safety Instructions The following instructions help use SNOM 300 properly and prevent accidents. Failure to follow these instructions would void the product’s warranty and accident may happen. • Immediately unplug the device from the power supply if there is a strange smell and smoke.
  • Page 26 For more information on features and settings, please check http://www.agile.ne.jp/support / Inquiries by telephone and email: Send to: sup@agile.ne.jp Telephone number: 03-6365-1506 Weekdays: 10:00 - 19:00 For Inquiries upon product purchase: Send to: shop@agile.ne.jp Reference: http://www.snom.com/download/qig_snom300_en.pdf / http://wiki.snom.com/Snom300/Firmware http://www.manualslib.com/manual/157190/Snom-300.html?page=54#manual   26  ...
