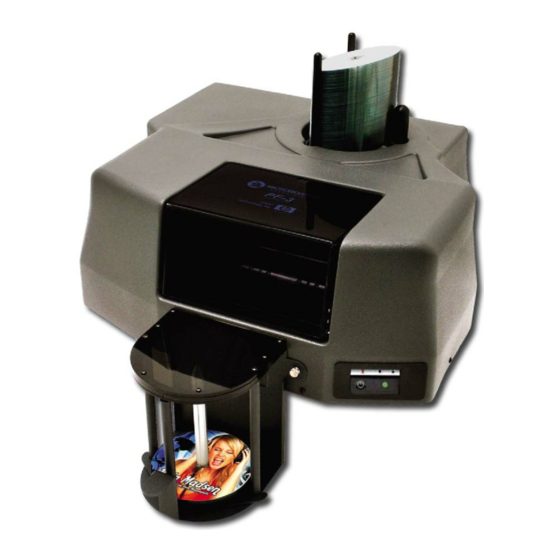

PF-3 Print Factory
®
For Microsoft Windows
7, Vista, and XP

Users Manual

Microboards Technology LLC
Version 3.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MicroBoards Technology PF-3

Summary of Contents for MicroBoards Technology PF-3

  • Page 1: Users Manual

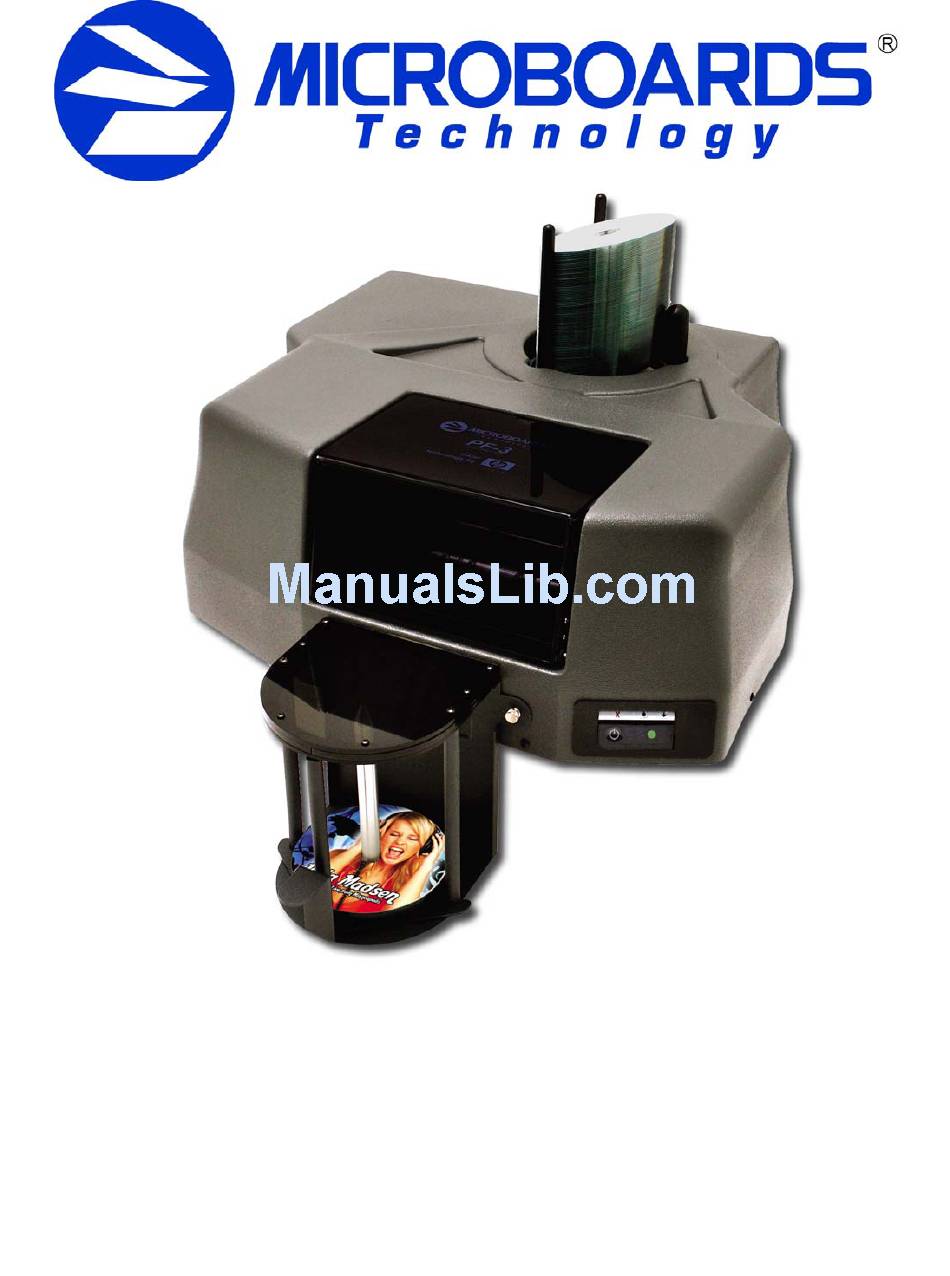

    PF-3 Print Factory ® For Microsoft Windows 7, Vista, and XP Users Manual Microboards Technology LLC Version 3.00...

  • Page 3: Table Of Contents

    PF-3 PRINT FACTORY TABLE OF CONTENTS INTRODUCTION ................................5 ’ ................................5 NCLUDED ..............................6 YSTEM EQUIREMENTS ASSEMBLY AND INSTALLATION ..........................6 ..............................6 SSEMBLY NSTRUCTIONS PF-3 Print Factory Assembly ............................6 ........................7 RONT ANEL NDICATORS AND UTTONS .................................7 OADING ISCS ............................8 NSTALLING ARTRIDGES Supported Ink Cartridges .............................8 Loading / Replacing Ink Cartridges ..........................8...
  • Page 4 Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Introduction

    Flexibility and Speed for Any Application While the PF-3 Print Factory was designed to fill a need in the high-volume arena, it also has the ability to print at 4800 x 1200 dpi on both DVD and CD media. With the included design software, users can enjoy its benefits whether making a few discs or a few hundred.

  • Page 6: System Requirements

    Assembly and Installation Assembly Instructions PF-3 Print Factory Assembly Remove the PF-3 Print Factory system from the shipping box and confirm you received all of the items. Place the PF-3 Print Factory on a stable, flat surface. You will need room both in front and behind the system, as discs will be accessed from both locations.

  • Page 7: Front Panel Indicators And Buttons

    Loading Discs The PF-3 Print Factory will accept CD or DVD 120 mm (12 cm) inkjet printable discs. If the disc does not have an inkjet printable surface, the ink will not adhere to the surface of the disc. The PF-3 Print Factory will only accept 12 cm discs.

  • Page 8: Installing Ink Cartridges

    PF-3 Print Factory to fail and may affect your warranty. Loading / Replacing Ink Cartridges Cartridges can be changed while the PF-3 Print Factory is on. The Out of Ink LED will light if any cartridge is beginning to run low on ink.

  • Page 9: Replacing Empty Ink Cartridges

    PF-3 PRINT FACTORY Replacing Empty Ink Cartridges The PF-3 Print Factory will notify you when either cartridge is completely empty. Since the current print job will be cancelled at that point, it is strongly recommended that you replace the cartridges when you are notified that they are low rather than waiting until they are empty.

  • Page 10: Pf-3 Print Factory Installation

    The connection between the PC and the Microboards PF-3 Print Factory is done with one USB cable. 1. Confirm that the AC power cord to the back of the PF-3 Print Factory is connected and that the switch in the back is ON.

  • Page 11: Windows 7 And Vista Hardware Installation

    Insert the Microboards PF-3 Print Factory CD into a drive in your computer. Follow the instructions provided by the installer. Connect the PF-3 Print Factory to the PC only when you are prompted to. The operating system will next display the following windows: 1.

  • Page 12: Printing Preferences

    Printing Preferences Access the Printing Preferences by clicking the Start Button on your Windows computer. Select Settings and then select Printers. Right click on the Microboards PF3 icon, then select Printing Preferences. There are 7 tabs across the top of the window. Click each tab to see the available settings.

  • Page 13: Advanced Tab

    MICROBOARDS TECHNOLOGY, LLC PF-3 PRINT FACTORY Advanced Tab The Advanced Tab allows you to Enable Maximum dpi setting and adjust the amount of ink placed on the disc using the Ink Volume and Dry Time settings. Enabling the maximum dpi will result in longer times to process your print image, reducing throughput.

  • Page 14: Ink Tab

    Advanced Ink Levels button. NOTE: If you place a used cartridge in the PF-3, the ink level may not be reported correctly. If the PF-3 can identify the cartridge, it may report the correct ink levels; if not, it will assume that the ink cartridge is new and will show ink levels of 100%.

  • Page 15: Print Quality Tab

    MICROBOARDS TECHNOLOGY, LLC PF-3 PRINT FACTORY Print Quality Tab The Print Quality tab controls the print resolution. Print Modes • Text and Graphics • Photo Print Quality • Normal • Best • MaxDPI Printing Recommendations Text and Graphics mode is used for printing mainly text information and small, simple graphics.

  • Page 16: The Microboards Printer Toolbox

    The Microboards Printer Toolbox To access the Microboards Toolbox, double-click the toolbox icon located in the tool tray. Select the Microboards PF3 and click the buttons to access a particular maintenance function of the Toolbox for the selected printer. The Toolbox should be left running at all times in order to provide you with low ink warnings.

  • Page 17: Automatic Margin Calibration

    It is not necessary to load any media for this utility. Using SureThing Disc Labeler SureThing Disc Labeler is included with the PF-3 Print Factory and will be installed during the PF-3 Installation. For more information on using SureThing, please refer to the SureThing Help menu.

  • Page 18: Software Re-Installation

    The information in this section will only apply to a manual re-installation of the individual software packages. If you have not yet installed the PF-3 Print Factory using the Installer, it is recommended that you do so. Installing the PF-3 Print Factory in an incorrect order could result in an unsuccessful installation.

  • Page 19: Surething Labeler Software Re-Installation

    There are 3 methods of reinstalling SureThing should the need arise: A. (Recommended) Insert the Microboards PF-3 Print Factory Installation CD into the CD/DVD ROM drive on your computer and select the Repair option when the installer starts. Click the SureThing Disc Labeler button to reinstall SureThing.

  • Page 20: Troubleshooting

    Start, going to Settings and selecting Printers. Confirm the printer is listed and is active. If the icon is not active, make sure the PF-3 is not in Pause mode, or thePF-3 is set in Use Printer Offline. Also check to make sure the correct printer port is selected.

  • Page 21: Out Of Ink Message

    During the PF-3 installation, a shortcut to a utility to clear the print queue was added to your PC. Please note that this utility will clear all print jobs currently in the print queue for any printer.

  • Page 22: Printing Specifications

    Printing Specifications Print Speed: Depends upon percentage of coverage and print mode selected Photo: • Approx. 115 seconds for 100% full-color coverage, Photo Best Mode • Approx. 80 seconds for 100% full-color coverage, Photo Normal Mode Text & Graphics: • Approx.

  • Page 23: Technical Support

    PH: 03-3561-2266 FAX: 952-556-1628 www.microboards.co.uk www.microboards.co.jp support@microboards.com www.microboards.com Please have the Model and Serial Number of your PF-3 Print Factory available when contacting Technical Support. Date of Purchase: Place Purchased: Serial Number: Replacement Ink Cartridges: V102C (color) and V101B (black)
