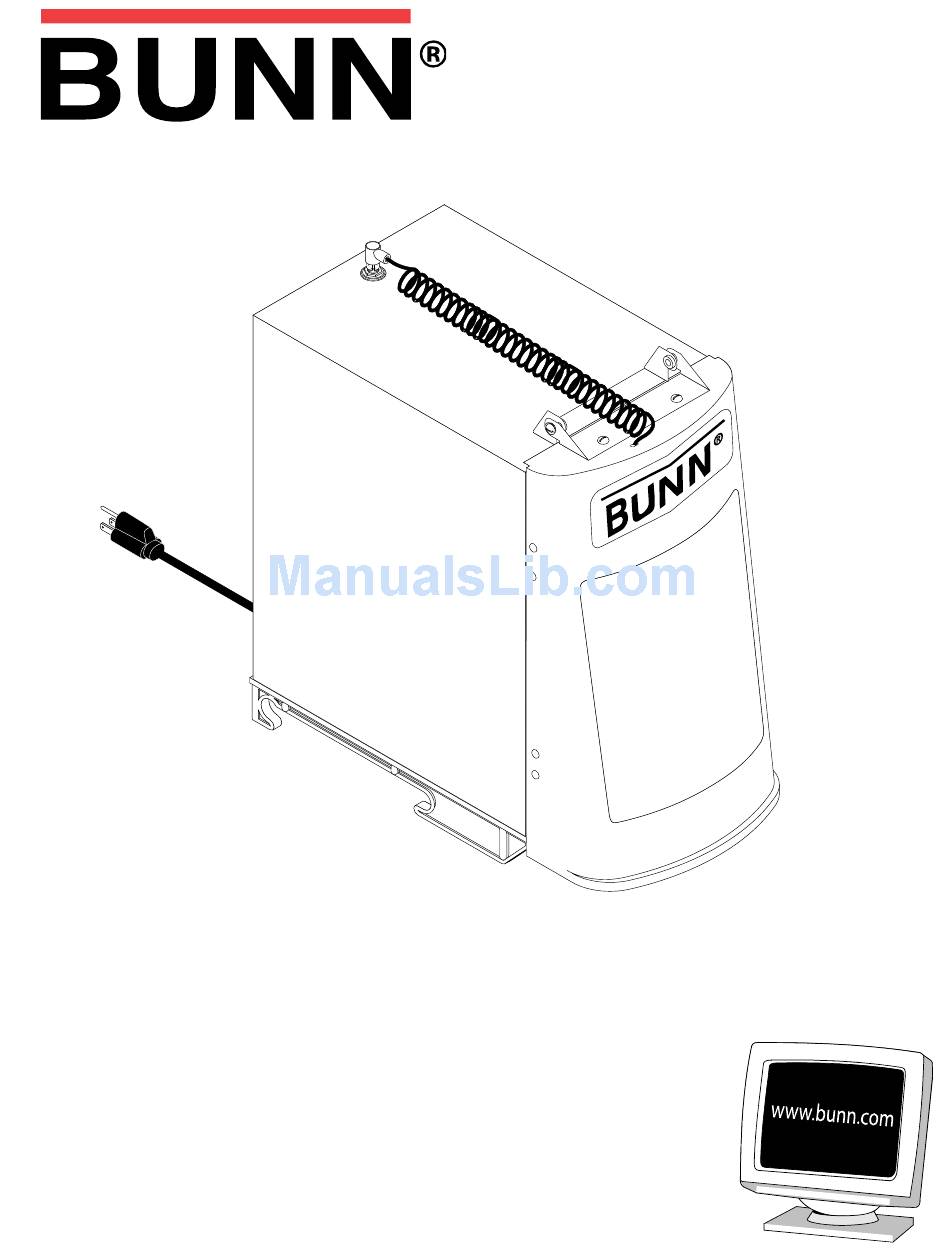

POWDER
AUTO FILL
For ULTRA-2
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
29793.0001H 06/12 ©2002 Bunn-O-Matic Corporation
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bunn ULTRA-2
Summary of Contents for Bunn ULTRA-2
- Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
- Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
-
Page 3: Initial Setup
INTRODUCTION This equipment supplies a liquid mix to the hoppers on the ULTRA-2 dispenser. It is for indoor use only on a sturdy counter or shelf. INITIAL SET-UP Loosen auger motor cover screws. Remove rear plastic plug from trim strip between hopper drip trays. - Page 4 OPERATING INSTRUCTIONS 8. If the Powder Auto-Fill fails to fill the ULTRA hopper 1. On the Ultra touch pad, make the following set- in 5 minutes, the following will occur: tings: a) The Powder Auto-Fill will stop dispensing prod- a) POWER- “ON” uct.
- Page 5 Powder Auto-Fill. mix ratio in step 1. q) Adjust the MIN/MAX control clockwise to increase NOTE: A water strainer assembly (BUNN-O-MATIC the dispense rate or counterclockwise to decrease #23820.1000) should be installed in line prior to the the dispense rate of the powdered granita mix.
- Page 6 CLEANING RECOMMENDED DAILY CLEANING AND MAINTENANCE TIPS This should be done in conjunction with the recommended weekly cleaning of your ULTRA-2 machine. Removing and cleaning the whipper chamber (once a day): 1. Open the cabinet door. 2. Pull the mixing chamber out of the whipper cham- ber.
-
Page 7: Fault List
FAULT LIST Door Lamp Fault Normal operation - Powder Auto-Fill ready to dispense Flashes ON/OFF at 50% duty cycle Low product level in Powder Auto-Fill hopper Two flashes about every 2 seconds ULTRA/Powder Auto-Fill probe circuit open Three flashes about every 2 seconds Powder Auto-Fill hopper not in place Four flashes about every 2 seconds ULTRA refill exceeded 5 minutes...
