Rocktron Vendetta VP4 User Manual

Rocktron Vendetta VP4 User Manual

Tube preamp
Hide thumbs

Advertisement

Quick Links

Download this manual

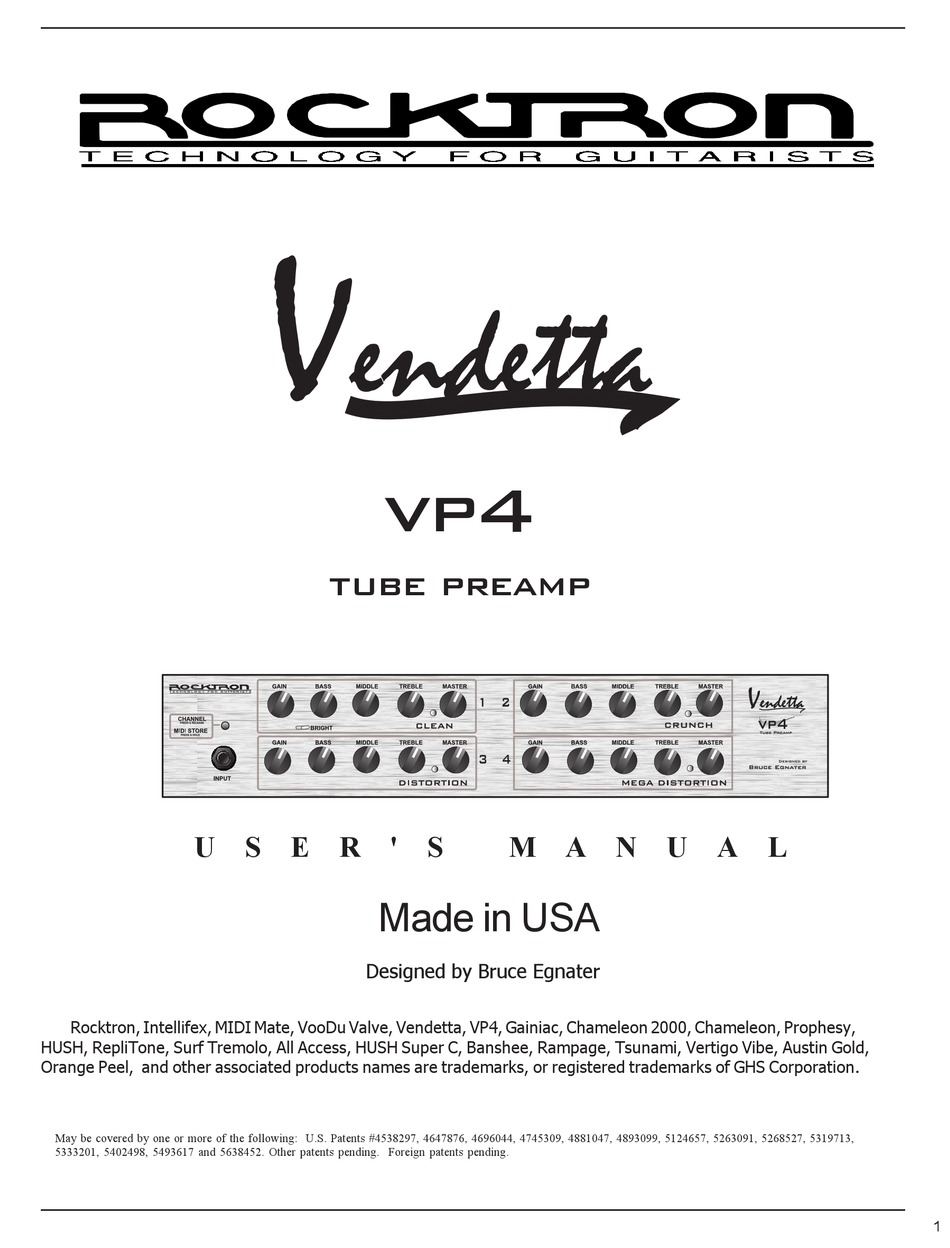

U S E R ' S   M A N U A L
Rocktron, Intellifex, MIDI Mate, VooDu Valve, Vendetta, VP4, Gainiac, Chameleon 2000, Chameleon, Prophesy,
HUSH, RepliTone, Surf Tremolo, All Access, HUSH Super C, Banshee, Rampage, Tsunami, Vertigo Vibe, Austin Gold,
Orange Peel, and other associated products names are trademarks, or registered trademarks of GHS Corporation.
May be covered by one or more of the following:  U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713,
5333201,  5402498,  5493617  and  5638452.  Other  patents  pending.    Foreign  patents  pending.
V
 e n de tt a
vp4
tube preamp
Made in USA
Designed by Bruce Egnater
1

Advertisement

loading

Related Manuals for Rocktron Vendetta VP4

Summary of Contents for Rocktron Vendetta VP4

  • Page 1 Made in USA Designed by Bruce Egnater Rocktron, Intellifex, MIDI Mate, VooDu Valve, Vendetta, VP4, Gainiac, Chameleon 2000, Chameleon, Prophesy, HUSH, RepliTone, Surf Tremolo, All Access, HUSH Super C, Banshee, Rampage, Tsunami, Vertigo Vibe, Austin Gold, Orange Peel, and other associated products names are trademarks, or registered trademarks of GHS Corporation.
  • Page 2 Precautions - Please read!! NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. Read all instructions contained in this manual Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water.

  • Page 3: Front Panel

    Front Panel INPUT jack This ¼" jack accepts the output from the guitar. This input takes precedence over the rear input jack (see "Rear Panell - point 5) CHANNEL switch Selects one of the four channels in sequence - 1 through 4. Also used to store midi data.
  • Page 4 Channel 3 Distortion GAIN control Adjusts the amount of drive for Channel 3. Higher settings increase distortion and sustain. British grind to EVH one. BASS, MID, TREBLE  controls The BASS, MID and TREBLE controls are your classic british configuration. Slight adjustments of each will provide a wide tonal variety. CHANNEL "ON" LED When the LED is lit the channel is active.

  • Page 5: Rear Panel

    OUTPUT jacks These two parallel 1/4" mono jacks for line level output are used to connect the VP4 to either a power amp or a rack effects unit - such as the Rocktron Intellifex. GROUND lift switch This switch is used for eliminating ground loops common to many multi-unit rack systems.
  • Page 6 NOTE: The VENDETTA is programed at the factory to default to Channel 1. Plugging in a MIDI Controller (Pedal) whether it is a 4-button controller or a Rocktron MIDI Mate, the Vendetta channels 1-4 will correspond with the MIDI controller buttons 1-4.
  • Page 7 IN jack to other MlDI-compatible devices via a MIDI cable. Although, this part is a 7-pin connector, a standard 5-pin MIDI cable can be used. To control the VENDETTA and another MIDI compatible device (like a Rocktron Intellifex), plug a standard 5-pin MIDI cable from the MIDI Thru on the VENDETTA into the MIDI IN on the compatible device.

  • Page 8: Fuse Replacement

    Fuse Replacement Fuse Replacement Always replace the main fuse with an identically rated replacement. Your VEN- DETTA amplifier uses a 3AG, 2A, 250VAC, slo-blo fuse for 100/120VAC or 3AG,1A, 250VAC slo-blo fuse for 220/240VAC. The fuse is located immediately below the line cord inlet on the rear panel and can be accessed by removing the fuse cover module as shown below.
  • Page 9 Check out some of our other products: Rack Gear: Chameleon 2000 (digital preamp w/multi-effects) Voodu Valve (digital preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line digital preamp with multi-effects) Intellifex On Line (Rocktron's hallmark multi-effects processor) HUSH Super C (guitar noise silencing system) Gainiac (analog guitar preamp with 12ax7 tube) Stomp Boxes: Rampage Distortion,  Tsunami Chorus,  Austin Gold Overdrive,  Orange Peel Phaser  HUSH The Pedal,  Surf Tremolo, Vertigo Vibe,  Banshee Talk Box Guitar Amplifiers: Vendetta 100 Watt Tube Head and 2x12 Combo (4 Channels) RepliTone (1x12 and 2x12 Digital Guitar Amplifiers with Multi-effects) RT80 (80W 1x12 Amp w/Reverb & Built-in Chromatic Tuner) RT122C (120W 2x12 Amp w/Chorus, Reverb & Chromatic Tuner) ACOUSTIC (60 Watt Acoustic Amp with Chorus & Reverb) R50C (50 Watt 2x8"Guitar Amp w/Reverb & Chorus) R20 (20 Watt 1x8"Amp w/Reverb)  R10 (10 Watt 1x6"Guitar Amp) Models with DSP Effects coming soon!! Foot Controllers: MIDI Mate (Midi Foot Controller) All Access (Midi Foot Controller)

  • Page 12: Tube Preamp

     e n de tt a tube preamp Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49015 Rocktron Phone: 1-(616)-968-3351 Email: info@rocktron.com Check us out on the web at: www.rocktron.com 2001-0002 Rev.  10/17/01...
