QuickSpecs

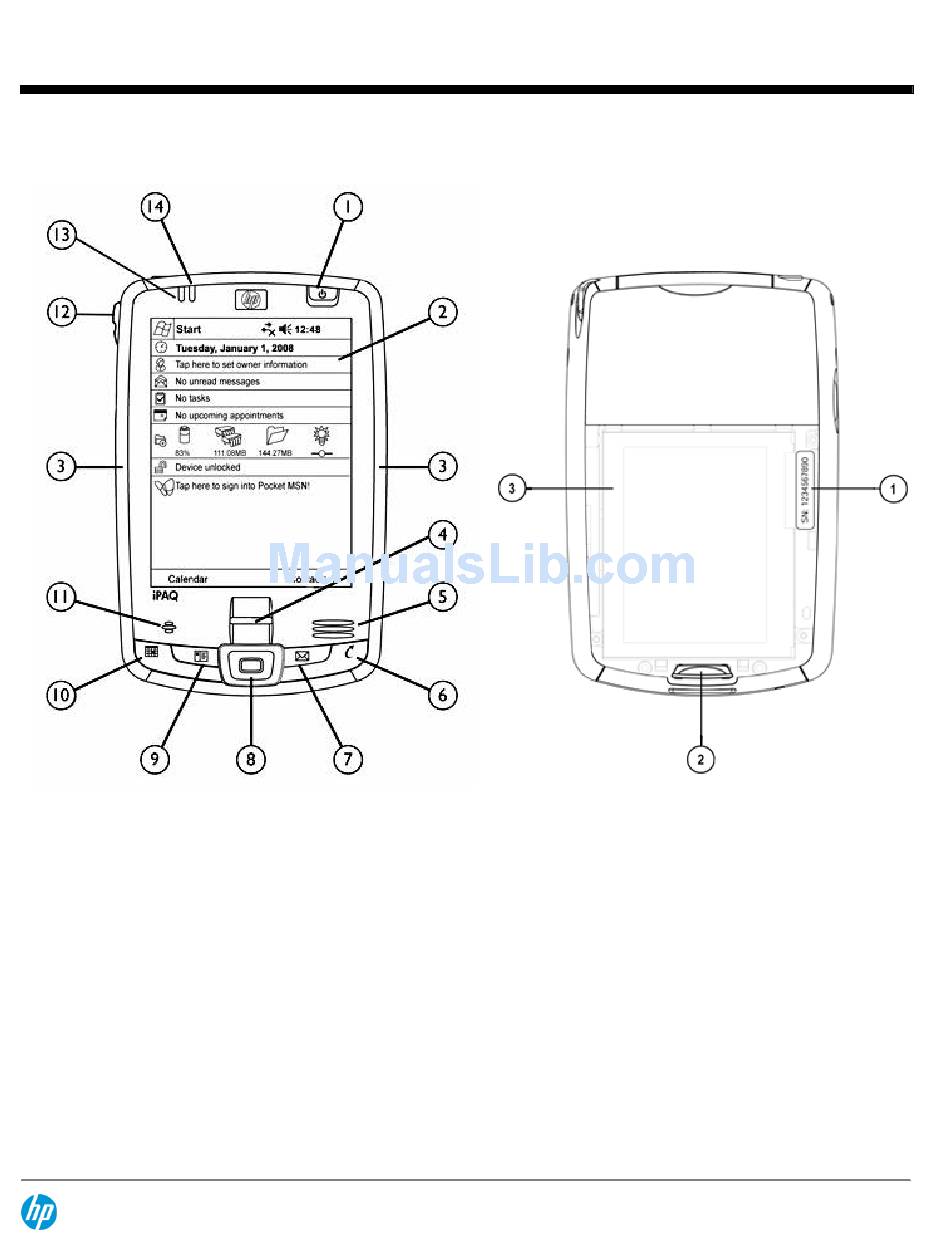

Overview
1. Power Button
2. Color Display
3. Rubber Side Grips
4. Biometric Fingerprint
Reader
5. Speaker
6. iTask Button
7. Messaging Button
Front Image
8. 5-way Navigation Button
9. Contacts Button
10. Calendar Button
11. Microphone
12. Voice Record Button (side)
13. Wireless LED
14. Charging/Notification LED
DA - 12984 Worldwide — Version 5 — March 24, 2008
Back (with battery door removed)
1. Serial number under battery door
2. Battery Door Cover Release
3. Battery Door Cover
HP iPAQ hx2790c Pocket PC
Page 1

Advertisement

   Related Manuals for HP iPAQ hx2790c

   Summary of Contents for HP iPAQ hx2790c

  • Page 1

    QuickSpecs HP iPAQ hx2790c Pocket PC Overview Front Image Back (with battery door removed) 1. Power Button 8. 5-way Navigation Button 1. Serial number under battery door 2. Color Display 9. Contacts Button 2. Battery Door Cover Release 3. Rubber Side Grips 10.

  • Page 2

    Integrated Bluetooth® wireless technology Integrated Compact Flash type II (CF) and Secure Digital (SDIO) slots HP ProtectTools secured by Credant Technologies security application 3.5" transflective TFT QVGA with 64K color LED backlight display, landscape and portrait display modes Windows Mobile® 5.0 Software for Pocket PC, Premium Edition...

  • Page 3

    QuickSpecs HP iPAQ hx2790c Pocket PC Standard Features Models iPAQ Pocket PC hx2790c – 512MB flash ROM, 64 MB SDRAM, Wi-Fi (802.11b), Bluetooth, Serial IR and Biometrics security FB103AA #ABA – US Commercial, English FB103AA #B16 – Latin American Spanish FB103AA #AC4 –...

  • Page 4

    IrDA (SIR) USB 2.0 Client – supported via HP standard 22 pin cradle interface Serial RS232 – supported via HP standard 22 pin cable interface (cable must be purchased separately) NOTE: Some HP authorized options may not be supported. See http://www.hp.com/go/ipaqaccessories.

  • Page 5

    Mobile, Calculator, Solitaire, Jawbreaker, File Explorer, Terminal Services Client, Beam, Clock, Align Screen, Memory, Volume. In the box HP iPAQ hx2790c Pocket PC, lithium-lon 1700 mAh removable/rechargeable battery, AC adapter, charger adapter USB desktop synchronization cradle, stylus, protective plastic flip cover, HP iPAQ Product Information Guide and HP iPAQ Getting Started disc.

  • Page 6

    HP iPAQ hx2790c Pocket PC Standard Features HP Exclusive Applications HP ProtectTools secured by Credant Technologies: help secure your device and your data 1,3,4 Bluetooth Phone Manager: connect to a Bluetooth enabled phone and browse the Internet Bluetooth Manager: manage your Bluetooth connections and settings...

  • Page 7

    QuickSpecs HP iPAQ hx2790c Pocket PC Standard Features Modulation Schemes DBPSK, DQPSK, CCK Receiver Sensitivity – 11 Mbps: <-80 dBm Packet Error Rate 5.5 Mbps: <-82 dBm (8E-2) 2 Mbps: <-86 dBm 1 Mbps: <-89 dBm Maximum Receive Level -10dBm (1/2/5.5/11 Mbps)

  • Page 8

    Collaborate, chat, play games, exchange data Adhoc peer to peer networking Basic Printing and Hard Copy Replacement Profiles Print to any HP Bluetooth enabled printer without the need for cables or specific print drivers DA - 12984 Worldwide — Version 5 — March 24, 2008...

  • Page 9

    QuickSpecs HP iPAQ hx2790c Pocket PC Standard Features Certifications All necessary regulatory approvals for countries supported including: Bluetooth logo (FCC (47 CFR) Part 15C, Section 15.247&15.249 ETS 300 328, ETS xxx 489-1/17 Low Voltage Directive IEC950 UL and CE Mark)

  • Page 10

    HP iPAQ Battery Charger [while supply lasts] FA830AA#AC3 Synchronization HP iPAQ Desktop Cradle [while supply lasts] FA260B#AC3 HP iPAQ AutoSync Cable (USB and Serial) [while supply lasts] FA122A#AC3 Input Devices HP iPAQ Stylus Kit Three-pack FA261A#AC3 HP iPAQ Foldable Keyboard...

  • Page 11

    ©Copyright 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
