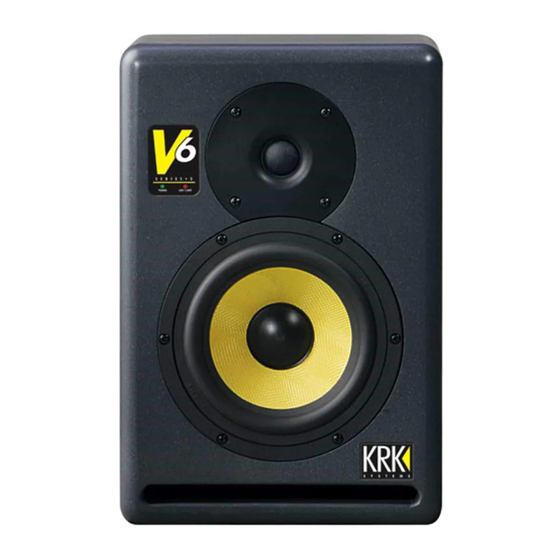

Video shielded bi-amplified studio monitor
Hide thumbs Also See for V6:
Table of Contents

Advertisement

Quick Links

See also: User Manual
U S E R G U I D E
K R K M O D E L V 6
V I D E O S H I E L D E D
B I - A M P L I F I E D
S T U D I O M O N I T O R
KRK SYSTEMS, LLC.
5452 BUSINESS DRIVE
HUNTINGTON BEACH, CA. 92649
TEL: (714) 373-4600 FAX: (714) 373-0421
WEB SITE:
WWW.KRKSYS.COM
EMAIL:
SALES@KRKSYS.COM

Advertisement

Table of Contents
loading

Related Manuals for KRK V6

Summary of Contents for KRK V6

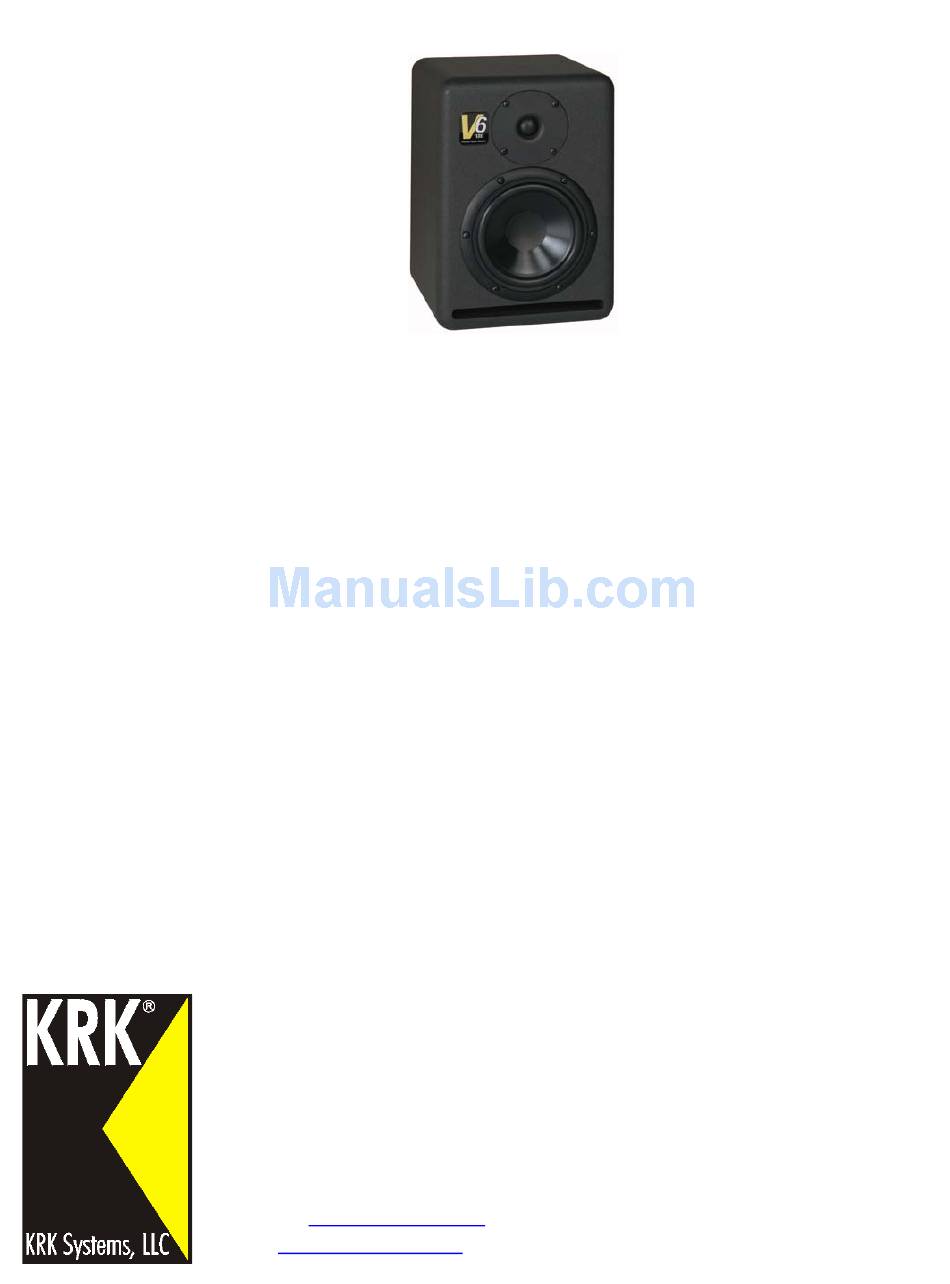

  • Page 1 V I D E O S H I E L D E D B I - A M P L I F I E D S T U D I O M O N I T O R KRK SYSTEMS, LLC. 5452 BUSINESS DRIVE HUNTINGTON BEACH, CA. 92649...
  • Page 2 Contents Page Introduction/ Features Overview • • • • • • • • • • • • • • • • • • • • System Control • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Connecting Your System •...

  • Page 3: Connecting Your System

    Adjustment range is from -30dB to +6dB. Factory preset gain is +6dB, which should suffice for most conditions. Normally adjustments would be made if you’re using your V6 in a surround system and you need to balance levels or if your monitor send is too hot and not adjustable. If an adjustment is needed, you’ll need a small flathead screwdriver and measuring equipment such as a tone or filtered noise generator and SPL meter.

  • Page 4: Positioning Your Monitors

    If the fuses blow immediately upon power up, this indicates a fault condition and the monitor should be returned to KRK for repair. ® NEUTRIK COMBO CONNECTOR ® The Neutrik Combo connector accommodates ¼” phone plugs, XLR, TRS. Please note that PIN 2 is hot! If you are using an unbalanced connection make sure and wire PIN 1 and PIN 3 together at the source end.
  • Page 5 Mid-Field Configuration – This configuration is basically the same as the Close-Field set-up. (see Figure 2) It is normally used with larger monitors or when the monitors are too large or heavy for the meter bridge. This set- up has the potential for a larger sweet spot and better spatial imaging. Make sure that the height of the woofer is above height of the console.
  • Page 6 The most significant thing to remember is that each room presents it’s own set of acoustic variables. You'll want to experiment a bit to arrive at the best possible sound for your room. IMPORTANT NOTE: Your V6 was originally packaged in a specially designed carton and included special packing materials. Please save these items.

  • Page 7: System Highlights

    An often-repeated phrase that we hear at KRK about our monitors’ performance is their ability to translate. A mix made on your V6’s will translate to other environments and other monitors with no surprises saving you extra time and eliminating superfluous work. They will perform flawlessly for years in the professional and non-professional environment alike.

  • Page 8: Troubleshooting

    System section on page 3). • The power light is illuminated on the front panel of the V6. If not, turn the power switch OFF and check the A/C mains fuse(s). NEVER USE A LARGER AMPERAGE FUSE THAN IS SPECIFIED! Turn the power switch back on.
  • Page 9 Please read the warranty card that was included in the shipping carton of your monitor prior to shipping it back to KRK Systems, Inc. All products in need of repair can be returned to the dealer where it was purchased or to KRK Systems, Inc. at the following address: KRK SYSTEMS, INC.

  • Page 10: Specifications

    FEATURES Neutrik ® Combo Connector accepts XLR and ¼” phone and TRS connectors IEC Mains Connector System Gain Control (controls input sensitivity) LED Power Indicator Power On/Off Muting and Delay KRK and V6 are registered trademarks of KRK Systems, Inc.
  • Page 11 Safety Instructions: English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of un-insulated “dangerous voltage” within the products enclosure that may present a risk of electric shock.
  • Page 12 Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 13 Consignes de Securite: Francais Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matérial contient des instructions importantes concernant l’exploitation et la maintenance (rèparation) Ce symbole sert à avertir l’utilisateur de la présence dans le boìtier de l’appareil de “tensions dangereuses”...
  • Page 14 Explication des symboles graphiques Le symbole “éclair” avec fléche à l’intérieur d’un triangle équilatéral est utilisé pour alerter l’utilisateur de la presence à l’intérieur du coffret de “voltage dangereux” non isolé d’ampleur suffisante pour constituer un risque d’elétrocution. Le symbole d’exclamation à l’intérieur d’un triangle équilatéral est employé pour alerter les utilisateurs de la présence d’instuctions importantes pour le fonctionnement et l’entretien (service) dans le livret d’instructions accompagnant l’appareil.
