KRK RoKit G2 User Manual

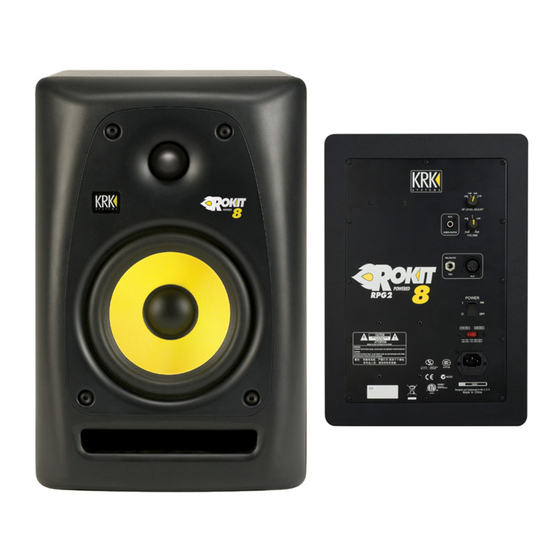

Rokit g2 powered series near field studio monitors
Hide thumbs Also See for RoKit G2:

Advertisement

Table of Contents

See also: User Manual
ROKIT G2 POWERED SERIES
NEAR FIELD STUDIO MONITORS
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoKit G2 and is the answer not in the manual?

Questions and answers

Related Manuals for KRK RoKit G2

Summary of Contents for KRK RoKit G2

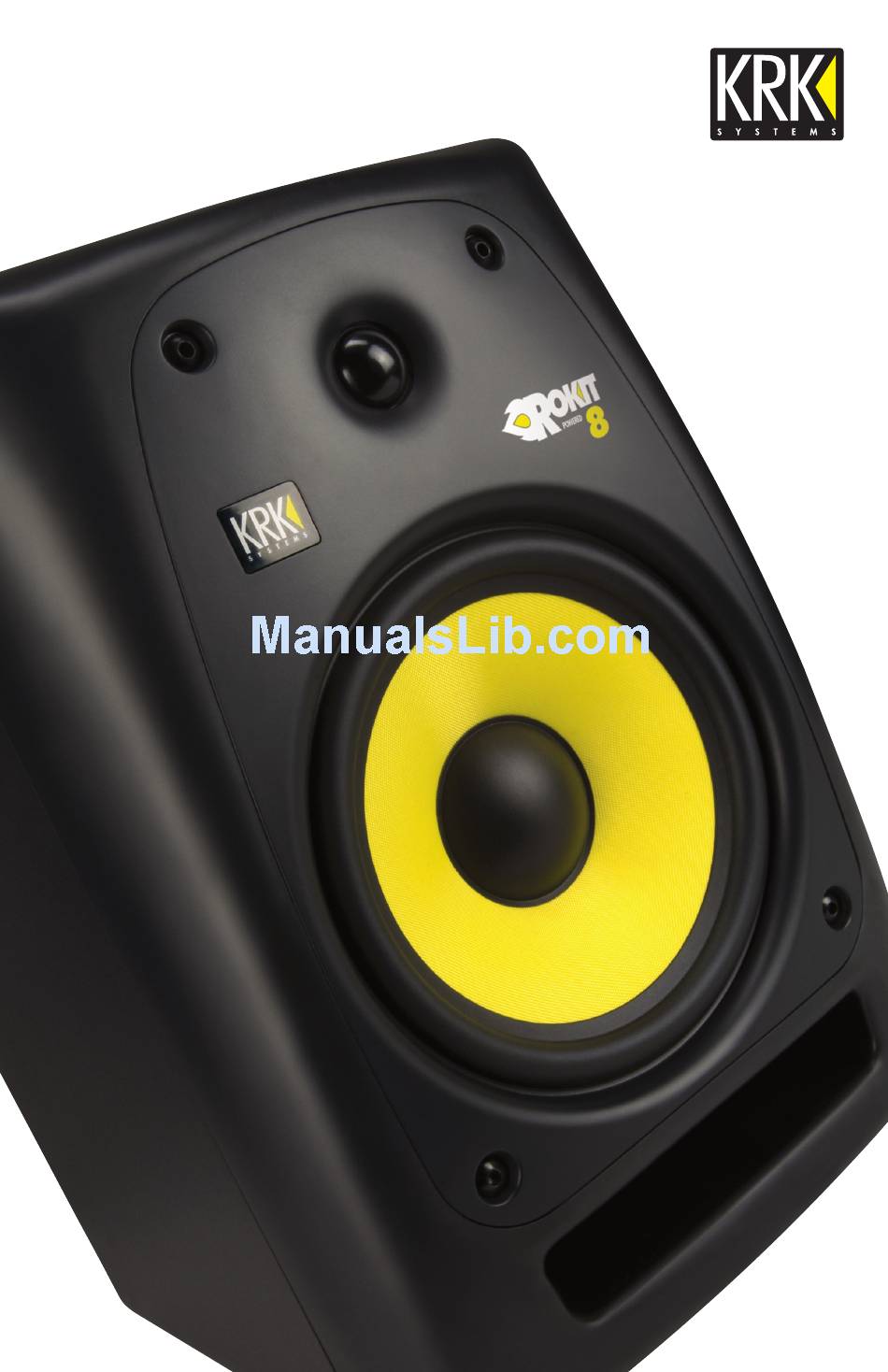

  • Page 1 ROKIT G2 POWERED SERIES NEAR FIELD STUDIO MONITORS USER GUIDE...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ATTENTION CAUTION ATTENTION: POUR …VITER LES CHOC ELECTRIQUES, INTRODUIRE LA RISK OF ELECTRIC RISQUE DE CHOC ELECTRIQUE LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE NE PAS OUVRIR SHOCK DO NOT OPEN CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUíAU CAUTION: TO REDUCE THE RISK OF ELECTRIC FOND.

  • Page 3: Table Of Contents

    3 - 4 KRK Systems Design Philosophies ........

  • Page 4: Introduction - Unpacking

    KRK series, considering KRK has always been the standard, but, it's a fact. This manual is intended to inform you of the many features of your new RoKit G2 Powered monitors and their operation. We encourage you to take a few minutes to familiarize yourself with the information in this manual.
  • Page 5 Unpacking Your RoKit G2 Powered monitor has been carefully inspected and tested before packing and shipping. After unpacking your monitor, carefully inspect it for exterior damage and immediately report any physical damage during transit to your shipping carrier. Save the shipping boxes and all packaging materials in case the unit needs to be returned to your local dealer or KRK Systems, LLC.

  • Page 6: Krk Systems Design Philosophies

    KRK Systems Design Philosophies KRK Systems is the most dedicated monitor company in the world and we are thrilled you have joined our ever growing family of loyal customers. The following information helps explain why we are the most successful monitor company in the world.
  • Page 7 RoKit has got you covered. Enough About Us – Let’s Get Going! So enough about why we do the things we do. Let’s read on about the features of your new RoKit G2 monitors so you can start enjoying your new monitors now.

  • Page 8: System Controls - Connecting Your System

    System Controls AMPK00053 AMPK00047 AMPK00050 System Volume The input sensitivity is adjusted with the rear panel mounted System Gain control (counterclockwise reduces sensitivity). Adjustment range is from -30dB to +6dB. Factory preset gain is +6dB, which should suffice for most conditions. Normally, adjustments would only be made if you were using your monitor in a surround system and needed to balance levels or if your monitor send is too hot and not adjustable.

  • Page 9: Audio Input

    RoKit G2 monitors. NOTE: Ensure that the voltage indicator found in the voltage selector is set to the correct voltage setting for your local supply.

  • Page 10: Installing And Positioning Your Monitors

    Installing Your Monitors The close-field monitor, by definition, reduces room interaction. This can be compared to the conventional stereo configuration or the large monitor arrangement in a recording studio where sounds emanating from the monitor or reflecting off ceilings, walls, and floors greatly affect the sound quality.

  • Page 11: Positioning Your Monitors

    Positioning Your Monitors Positioning your monitors correctly in the studio is critical to their performance. Typically, they should be placed so that the listening position is fully “covered” with all monitors resting on the same horizontal plane. A great way to test a monitor for its imaging capability is to play back a CD or DVD recorded acoustically in stereo (or one recorded in surround sound if you have a surround sound set up).
  • Page 12 Mid-Field Configuration – This configuration is similar to the Close-Field configuration. It is normally used with larger monitors or when the monitors are too large or heavy to be placed on the work surface. This set up has the potential for a larger sweet spot and better spatial imaging.
  • Page 13 Center channel. If this is not possible, place the subwoofer just to the right or left side and below the Center channel. Ensure that the woofers in your RoKit G2 monitors are above the height of the console and/or control surfaces (refer to Figure 4 for set up).

  • Page 14: Troubleshooting

    Your RoKit G2 monitor provides maximum circuitry protection against AC power surges, amplifier overdrive, and overheating of the amplifiers. Turn the monitor off then wait 30 minutes to allow the back plate to cool down.
  • Page 15 • Make sure that the power cord is plugged snugly into the IEC socket on the rear of the monitor. • Check the connections between the signal source and the monitor. The RoKit G2’s XLR and TRS connectors are a completely balanced system. If you’re connecting an unbal anced output to the monitor, be sure that you’re using Pin 2 for signal and have Pin 1...
  • Page 16 KRK Systems. A Return Material Authorization (RMA) from KRK Systems is required before shipping a product to KRK Systems for repair. Your unit wil not be received by the company, nor will any work be done on your unit without this number. Please call KRK at 1-800-444-2766, or email Service@Gibson.com to request your RMA.

  • Page 17: Specifications

    Specifications Model Rokit 5 G2 Rokit 6 G2 Rokit 8 G2 52Hz - 20kHz 48Hz - 20kHz 44Hz - 20kHz 106 dB 107 dB 109 dB -2dB, -1dB, 0, +1dB -2dB, -1dB, 0, +1dB -2dB, -1dB, 0, +1dB 1/4"...
  • Page 18 Specifications (continued) Fuse 5mm x 20mm Rokit 8”, RP8G2 100V-120V 2A-250V Slow Blow 220V-240V 1A-250V Slow Blow Rokit 6”, RP6G2 100V-120V 1.6A-250V Slow Blow 220V-240V 800mA-250V Slow Blow Rokit 5”, RP5G2 100V-120V 1A-250V Slow Blow 220V-240V 500mA-250V Slow Blow HOT/POSITIVE COLD/NEGATIVE STANDARD PHONE...
  • Page 19 Notes...
  • Page 20 w w w . k r k s y s . c o m A member of the Gibson family of brands Our mission is to innovate, design and deliver superior audio products that form the bridge between an artistic vision and a realized dream.

This manual is also suitable for:

Rokit g2 powered seriesRokit 5 g2Rokit 6 g2Rokit 8 g2Rokit g2 series
