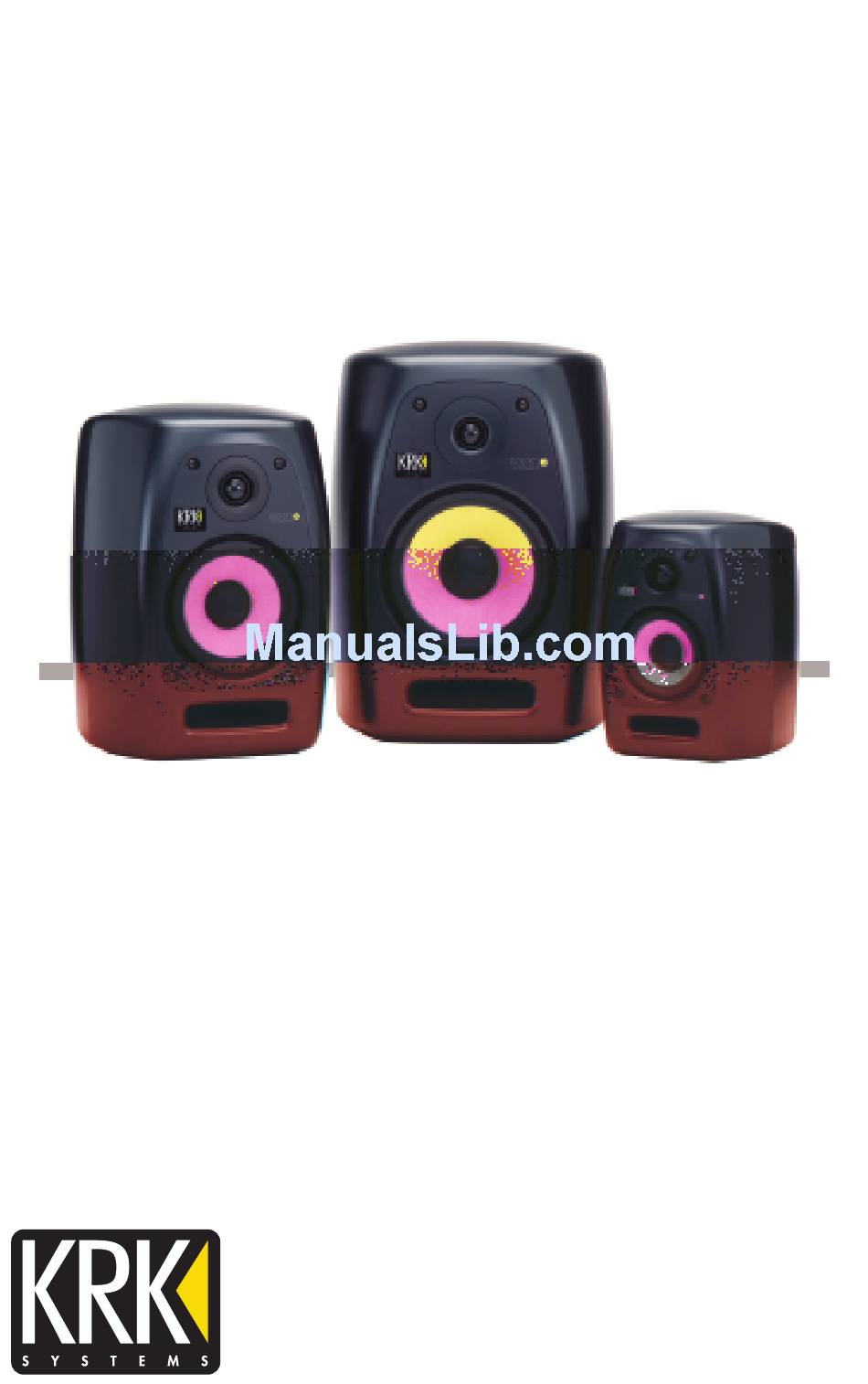

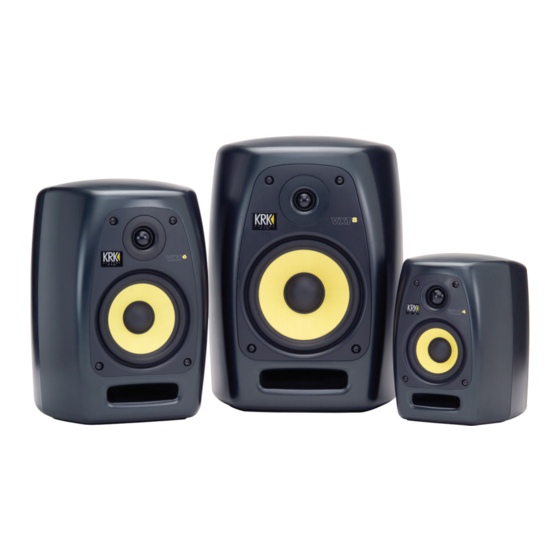

  • Page 1 KRK VXT SERIES BI-AMPLIFIED STUDIO MONITOR...
  • Page 3 Whether you are making critical mixing decisions or need to capture the subtle nuances of a unique sound, you’ll quickly discover that the VXT Series is as precise about your work as you are.

  • Page 4: Design Philosophy

    • Smooth octave to octave response • Smooth off-axis response From years of listening to feedback from some of the top engineers and producers, KRK engineers have come to understand how a properly tuned monitor can become a valuable recording tool.

  • Page 5: Design Elements

    Design Elements New Custom Made Tweeter and Woofer Designs – KRK is renowned for designing high performance studio monitor drivers. Your VXT monitors are no exception. A woven Kevlar® low frequency driver was custom-designed specifically for each model. Kevlar® is one of the strongest, lightest, most rigid materials that can be used in modern speaker cone construction.

  • Page 6: Back Panel Features

    Back Panel Features (B) HF ADJUSTMENT (VXT 6 and VXT 8 ONLY) High Frequency Adjustment is through a rear panel mounted 3-position toggle switch. Range of control is +1dB, Flat, or -1dB shelving above 2 kHz. Factory setting is flat (toggle switch is in middle position).

  • Page 7: Connecting Your System

    All connections should be made, all faders and controls should be set at their minimum levels, and all other equipment should be powered on prior to powering on your V8 monitors.The power On/Off switch is located on the rear pane. The KRK Logo on the front baffle illuminates when the power is applied.
  • Page 8 NEUTRIK® COMBO CONNECTOR The Neutrik® Combo connector accommodates XLR, 1/4” TRS and 1/4” phone plugs. Please note that PIN 2 is hot! If you are using an unbalanced connection make sure to wire Sleeve and Ring together at the source end. This can be accomplished by using the appropriate cable or adapter.
  • Page 9 2-CHANNEL SET-UP Close-Field Configuration - In a control room situation, the monitors are often times placed on the meter bridge or in a close-field listening position. Initial placement starts by measuring out a simple equilateral triangle (all three sides equal in length) with the apex at the center of the listening position (as shown in Figure 1) as an "overlay"...
  • Page 10 Figure 3 5.1 Channel Surround Sound Setup Begin by placing the Left and Right front channels 30 degrees from the Center channel and equidistant to the listening position (Figure 4). The Left Surround (rear) and Right Surround (rear) channels should be placed 110 degrees from the Center channel. Their location should also be equidistant from the listening position.
  • Page 11 7.1 Channel Surround Sound Setup The 7.1 channel surround sound setup adds two speakers to the sides of the mix position and is most similar to the actual surround sound configuration of cinema—with the difference being that cinemas commonly add additional side surrounds to compensate for the length of the theater.

  • Page 12: Troubleshooting

    (See Changing Fuses in the Connecting the System section on page 3). • The KRK logo on the front panel will be illuminated when the monitor is on. If logo is not illuminated, turn the powe switch OFF and check the A/C mains fuse(s). NEVER USE A LARGER AMPERAGE FUSE THAN IS SPECIFIED! Turn the power switch back on.
  • Page 13 Problem: The sound quality changes... • Repeat steps in the previous troubleshooting section above before continuing to the next steps. • Disconnect the signal cable at the input of the monitor. With power on, place your ear close to each driver (tweeter/woofer) and listen for noise (i.e., a slight hiss or hum).
  • Page 14 Before shipping your unit back to KRK for service you must acquire an “RMA” from KRK. Your unit will not be received by the company, nor will any work be done on your unit without this very important number. Please call KRK at 954-316.1580.

  • Page 15: Specifications

    Specifications VXT 4 Model 1" Silk Dome NEO Tweeter Woofer 4" Woven Kevlar XLR-1/4" TRS Combo 10k Ohm Blanced Input Type Pin 1 + Sleeve = Ground Pin 2 + Tip = (+) High Pin 3 + Ring = (-) Low System Level Adjust +6dB to -30dB Variable Ground Lift...
