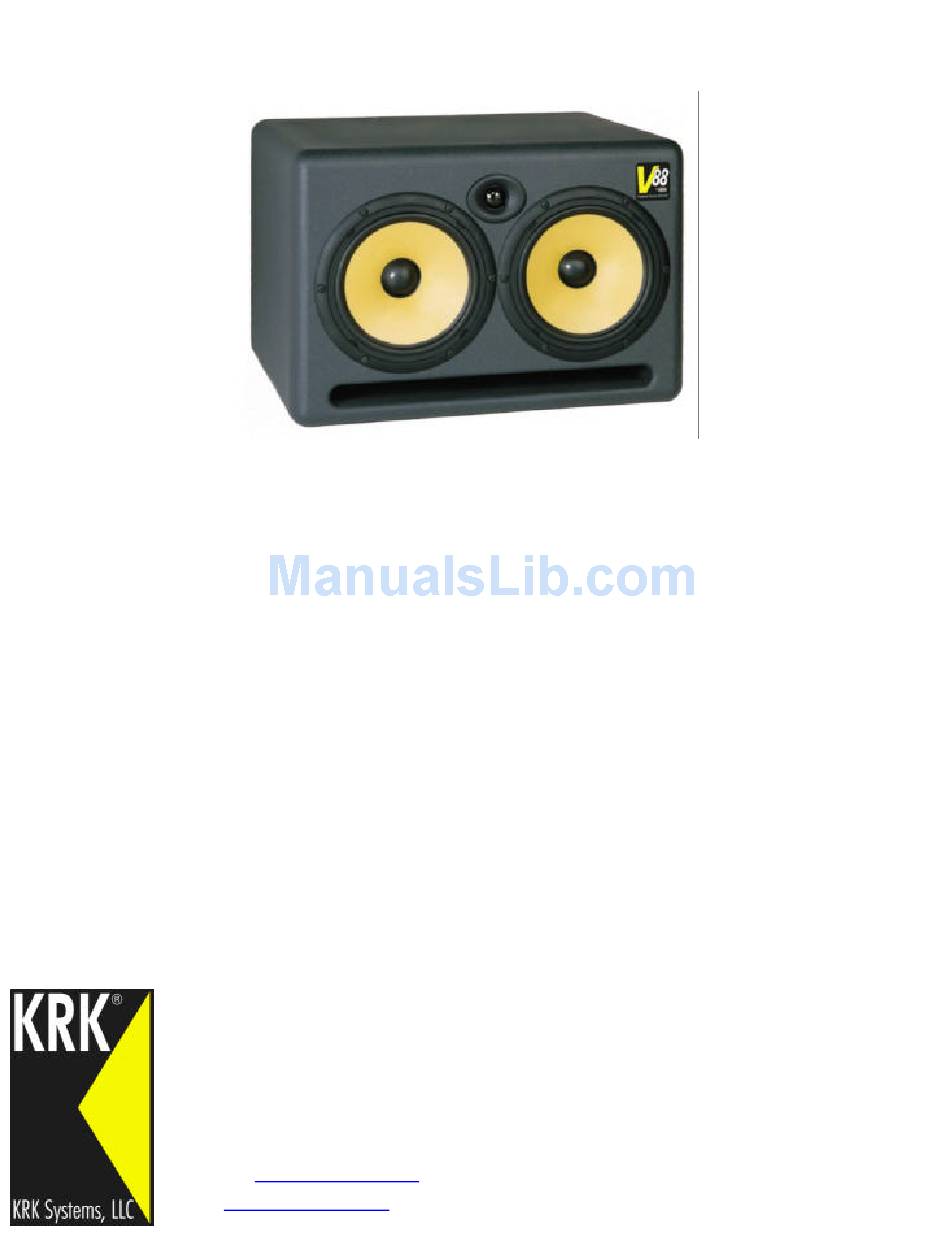

- Page 1 V I D E O S H I E L D E D B I - A M P L I F I E D S T U D I O M O N I T O R KRK SYSTEMS, LLC. 5452 BUSINESS DRIVE HUNTINGTON BEACH, CA. 92649...
- Page 2 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Introduction Congratulations on your KRK purchase! And welcome to the growing family of KRK owners. Growing demands on music recording industry professionals have created the need for better monitor performance at more affordable prices.
-
Page 3: System Controls
Systems Controls SYSTEM GAIN Input sensitivity is adjusted (counterclockwise reduces sensitivity) through a rear panel mounted trim control. Adjustment range is from -30dB to +6dB. Factory preset gain is +6dB, which should suffice for most conditions. Normally adjustments would only be made if you’re using your V-88 in a surround system and you need to balance levels or if your monitor send is too hot and not adjustable. -
Page 4: Connecting Your System
The power On/Off switch is located on the rear panel and is internationally marked to indicate the operational status. ( — ) = ON and ( O ) = OFF. A yellow LED illuminates the trademarked KRK Triangle on the front baffle when power is applied. -
Page 5: Channel Setup
Installing Your Monitors The close-field monitor, by definition, reduces room interaction. This can be compared to the conventional stereo configuration or the large monitor arrangement in a recording studio where sounds emanating from the monitor or reflecting off ceilings, walls, and floors greatly affect the sound quality. By shortening the path to the ear, the close- field monitor offers a tremendous amount of flexibility, allowing the sound to become less susceptible to differing room conditions. -
Page 6: Subwoofer Setup
Mid-Field Configuration – This configuration is basically the same as the Close-Field set-up. (see Figure 2) It is normally used with larger monitors or when the monitors are too large or heavy for the meter bridge. This set-up has the potential for a larger sweet spot and better spatial imaging. Make sure that the height of the woofer is above height of the console. - Page 7 5.1 CHANNEL SURROUND SET-UP Begin set-up by placing the Left and Right front channels 30º degrees from the Center channel and equidistant to the listening position (Figure 4). The Left Surround (Rear) and Right Surround (Rear) channels should be placed 110º degrees from the Center channel.
-
Page 8: Design Goals
Design Goals KRK’s design goal for your V-88 was to create a monitor capable of accurately reproducing sound with clarity and accuracy. Other monitors in the marketplace tend to modify, extend, or “tilt” their response above 1 kHz to sound more “spatial, exciting and impressive”. -
Page 9: Troubleshooting
This will determine whether it's really the monitor, a faulty cable, or some other glitch in the audio chain. If the monitor is still not responding, it should be returned to the dealer that you purchased it from or to KRK for servicing. -
Page 10: Troubleshooting
Please read the warranty card that was included in the shipping carton of your monitor prior to shipping it back to KRK Systems, LLC. All products in need of repair can be returned to the dealer where it was purchased or to KRK Systems, LLC. -
Page 12: Specifications
Specifications THE V-88 POWERED STUDIO MONITOR Frequency Response 39Hz -23kHz ±2dB High Frequency Driver Shielded 1-1/4” (33mm) Polymer Dome with Elliptical Wave Guide Two (2) shielded 8” (203.2mm) Woven Kevlar ® , High Sensitivity Voice Coil Low Frequency Driver Cabinet 55 liter bass reflex 1”... - Page 13 KRK and V- 88 are registered trademarks of KRK Systems, LLC.
-
Page 14: Safety Instructions: English
Safety Instructions: English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of un-insulated “dangerous voltage” within the products enclosure that may present a risk of electric shock. -
Page 15: Explanation Of Graphical Symbols
Explanation of graphical symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. - Page 16 Consignes de Securite: Francais Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matérial contient des instructions importantes concernant l’exploitation et la maintenance (rèparation) Ce symbole sert à avertir l’utilisateur de la présence dans le boìtier de l’appareil de “tensions dangereuses” non isolées posant des resques d’électrocution.
-
Page 17: Explication Des Symboles Graphiques
Explication des symboles graphiques Le symbole “éclair” avec fléche à l’intérieur d’un triangle équilatéral est utilisé pour alerter l’utilisateur de la presence à l’intérieur du coffret de “voltage dangereux” non isolé d’ampleur suffisante pour constituer un risque d’elétrocution. Le symbole d’exclamation à l’intérieur d’un triangle équilatéral est employé pour alerter les utilisateurs de la présence d’instuctions importantes pour le fonctionnement et l’entretien (service) dans le livret d’instructions accompagnant l’appareil.
