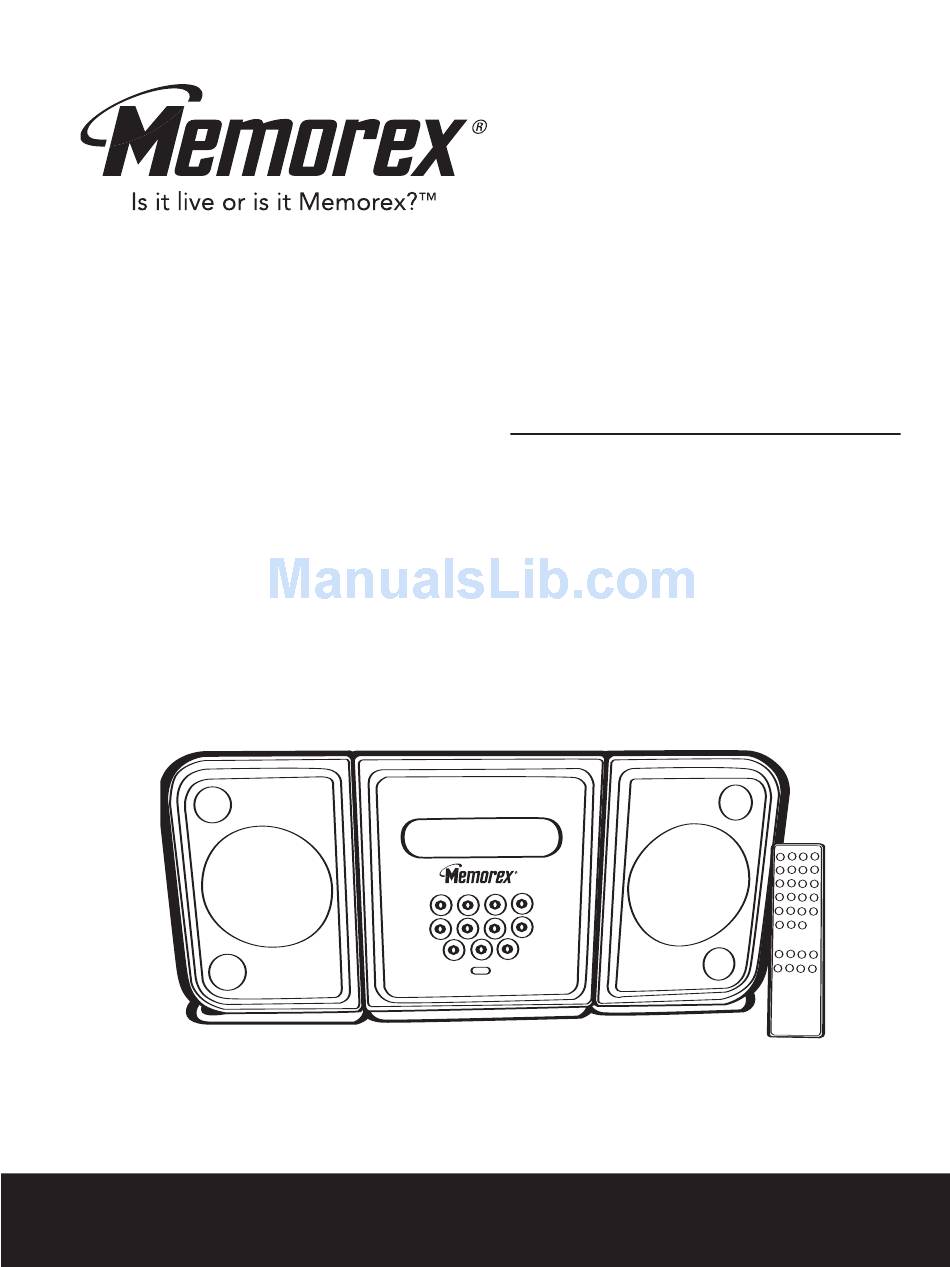

MX7300
User's Guide
CD Micro System with PLL
Digital AM+FM Tuner
Before operating this product,
please read these instructions completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX7300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Memorex MX7300

  • Page 1 MX7300 User’s Guide CD Micro System with PLL Digital AM+FM Tuner Before operating this product, please read these instructions completely.
  • Page 2: Fcc Warning

    PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. Model Number: MX7300 Serial Number: _______________________________________ CAUTION LASER SAFETY: This unit employs a laser.
  • Page 3 IMPORTANT SERVICE SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions 15. OVERLOADING carefully. Please note that these are general precautions and may not Do not overload wall outlets and extension cords as this can result in a pertain to your unit.
  • Page 4: Preparation For Use

    PREPARATION FOR USE SPEAKER CONNECTION 1. Place the speakers in convenient locations on either side of the unit or connect them to the unit as described below. 2. Locate the Speaker Jacks on the sides of the unit and Original Connect connect the right speaker to the Right Speaker jack and speaker...
  • Page 5: Battery Precautions

    PREPARATION FOR USE (CONTINUED) BATTERY OPERATION FOR REMOTE The battery compartment is located on the bottom of the remote control. • Remove the battery compartment door by pushing the tab to the left (arrow 1) and then pulling the battery compartment down (arrow 2). See figure 1. •...
  • Page 6: Location Of Controls

    LOCATION OF CONTROLS FRONT 1. AUX Jack 12. CD Compartment 2. Headphones Jack 13. DISC OUT Button 3. ON/STANDBY Button 14. TUNER/BAND Function Button 4. Display 15. STOP ( ) Button 5. PLAY/PAUSE (®p) Button 16. Tune/Skip/Search n Button 6. Tune/Skip/Search o Button 17.
  • Page 7 LOCATION OF CONTROLS (CONTINUED) REMOTE 1. TUNER/BAND Function Button 12. FM MODE Button 2. AUX Function Button 13. REMAIN Button 3. Number Buttons 14. ≥10 Button 4. MEMORY Button 15. EQ Button 5. PLAY/PAUSE (®p) Button 16. STOP ( ) Button 6.
  • Page 8: Headphone Jack

    OPERATING INSTRUCTIONS PRESET EQ MUTE With the power on, press the EQ button on the To temporarily mute the sound, press the MUTE remote control to cycle through the preset EQ button on the remote control; “MUTE” and the volume indicator will blink and the sound will be settings.
  • Page 9: Listening To The Radio

    OPERATING INSTRUCTIONS (CONTINUED) LISTENING TO THE RADIO Press the ON/STANDBY button Press the TUNER/BAND Function Press the TUNER/BAND button 1 to turn the unit on; the IR/Standby button to select the radio. to select AM or FM. If listening to indicator will turn off.
  • Page 10: Setting Radio Presets

    OPERATING INSTRUCTIONS (CONTINUED) SETTING RADIO PRESETS This unit can preset 20 AM and 20 FM radio stations for convenient recall. Press the ON/STANDBY button Press the TUNER Function button Press the Tune/Skip/Search n 1 to turn the unit on; the IR/Standby to select the radio.
  • Page 11: Playing Compact Discs

    OPERATING INSTRUCTIONS (CONTINUED) PLAYING COMPACT DISCS NORMAL PLAYBACK This unit can play back standard, CD-R and CD-RW discs. Label Side Insert into compartment LABEL SIDE Press the ON/STANDBY button Press the CD Function button to FACING FRONT. to turn the unit on; the IR/Standby select the CD.
  • Page 12: Cd Pause Control

    OPERATING INSTRUCTIONS (CONTINUED) CD PAUSE CONTROL During CD playback, if you wish to Press the PLAY/PAUSE (®p) pause the disc momentarily, press button again to release pause and the PLAY/PAUSE (®p) button. resume normal CD playback. Playback stops but the disc continues to spin and the elapsed time will blink in the display.
  • Page 13: Repeat Playback

    OPERATING INSTRUCTIONS (CONTINUED) REPEAT PLAYBACK To repeat all of the tracks on a To repeat a single track, first To cancel Repeat Playback, disc continuously, first press the press the REPEAT/MEM Up press the PLAY/PAUSE (®p) button until “REPEAT” disappears PLAY/PAUSE (®p) button 1 to button to begin playback.
  • Page 14: Programmed Repeat

    OPERATING INSTRUCTIONS (CONTINUED) Press either the Tune/Skip/Search Repeat step 5 until you have Press the Tune/Skip/Search n 1 programmed up to 60 track n 1 or o 2 button to select the or o 2 button to select the first numbers into the CD Program next track you wish to program.
  • Page 15: Random Playback

    OPERATING INSTRUCTIONS (CONTINUED) RANDOM PLAYBACK To play the tracks on the CD in a To cancel random playback, Press the PLAY/PAUSE (®p) random order, while in the Stop press the RANDOM button; button. The unit will randomly play mode, press the RANDOM/MEM “RAND”...
  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE Caring for Compact Discs • Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc. • Do not attach adhesive tape, stickers, etc. to the compact disc label.
  • Page 17: Troubleshooting Guide

    PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR AN AUTHORIZED MEMOREX SERVICE CENTRE. LISTING AVAILABLE AT WWW.JUTAN.CA FOR PARTS AND ACCESSORIES, CONTACT JUTAN INTERNATIONAL AT 1-800-663-5954.
  • Page 18: Specifications

    SPECIFICATIONS GENERAL Power Source .....................DC IN 12V Speakers......................2 x 6 Ohms Output Power..................2 x 10W @ 10%THD Remote Control .............powered by one CR2025 button battery RADIO SECTION Frequency Range (FM) ................87.5 - 108MHz Frequency Range (AM)................530 - 1710KHz CD SECTION Disc Diameter ....................4.72”...
  • Page 19 Memorex product or the loss of information.
  • Page 20 Jutan International Toronto, ON M2H 4H2 Printed in Hong Kong...
