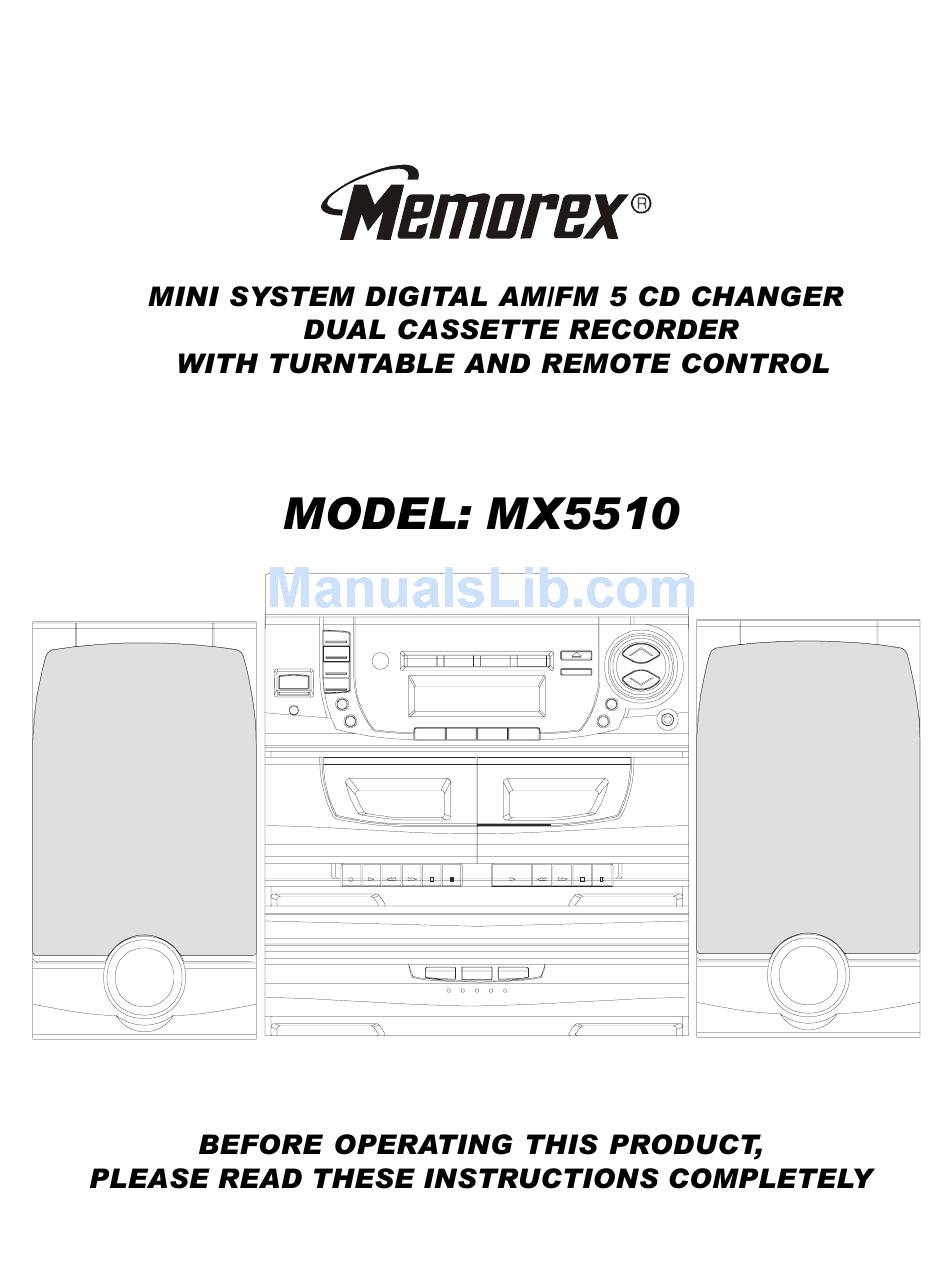

- Page 1 INSTRUCTION BOOK...
-
Page 2: Explanation Of Symbols
C A U IT IO N D O N O T O P E N CAUTION : TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSON- NEL. - Page 3 1.Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2.Retain Instructions - The safety and operating instructions should be retained for future reference. 3.Heed Warning - All warnings on the appliance and in the operating instruc- tions should be followed.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INSTALLATION...2~5 Accessories...2 Positioning Your Main Unit...2 Rear Panel Connections...3 Connecting the Speakers...4 Connecting Optional Equipment...5 FUNCTIONAL OVERVIEW...6~11 Front Panel...6 - 8 LCD Display...9 Remote Control...10-11 AMPLIFIER...12 General...12 TIMER SETTING ...12~13 Clock Setting...12 Time On/Off Setting...12-13 Sleep Timer...13 TURNTABLE/ PHONO...14 CD CHANGER...15~17 Loading Disc Into The CD Tray...15... -
Page 5: Installation
INSTALLATION MAIN UNIT FM Antenna ACCESSORIES This package contains: - 1 Main Unit - 2 Front Speakers - 1 FM Antenna - 1 Remote Control - 1 Instruction book Front Left/Right Speakers REMOTE CONTROL POSITIONING YOUR MAIN UNIT Place the unit on stable, level surface, out of direct sunlight and away from sources of excessive dust, dirt, heat, water, moisture, vibration and strong magnetic fields. -
Page 6: Rear Panel Connections
INSTALLATION REAR PANEL CONNECTIONS 1. FM ANTENNA (FM 300 ohm) For connecting the 300 ohm antenna supplied. 2. AUX IN (L/R) For connecting optional video equipment. 3. FRONT SPEAKERS (4 OHM) Connect supplied left and right front speakers here. 4. AC POWER CORD Plug into a standard 120V/60Hz household wall outlet. -
Page 7: Connecting The Speakers
INSTALLATION LEFT R IG H T SPEAKERS CONNECTING THE SPEAKERS Connecting the Front Speakers Connect the right front speaker to the front speaker ² R ² terminal on the back of the main unit, and the left front speaker to the front speaker ² L ² terminal. Make sure the (+) (red) and (-) (black and red) cables are connected to the correct front speaker terminals [(+) to (+) and (-) to (-)]. -
Page 8: Installation
INSTALLATION CONNECTING OPTIONAL EQUIPMENT Connecting a Video system Connect the ² L ² and ² R ² Audio output terminals of your laser disc or VCR system to the ² L ² and ² R ² VIDEO INPUT terminals of the main unit. -
Page 9: Functional Overview
FUNCTIONAL OVERVIEW FRONT PANEL 9 10 11 FL AT SL EEP R EC O R D /P LAY BA C K FRONT PANEL TU N E R /BAN D TA PE PH O N O /AU X DIS C C H A N G E R IN TR O . - Page 10 FUNCTIONAL OVERVIEW FRONT PANEL 1. REPEAT / MEMO • UP •In CD mode, press to change the following repeat play mode : All disc, Rpeat all disc, Repeat one disc, Repeat one track. •In TUNER mode, press to display the preset memory in ascending order.
- Page 11 FUNCTIONAL OVERVIEW FRONT PANEL 20. PHONES Plug headphones into this jack. Press the volume button to adjust the sound level. 21. MEMO / C-ADJ. •In TUNER mode, press to store AM/FM stations in the memory locations. •In CD mode, press to do CD program in memory locations.
-
Page 12: Lcd Display
FUNCTIONAL OVERVIEW 4 5 6 LCD DISPLAY 1. TOTAL Illuminates if you select the total remain time or total time in CD normal play mode. 2. MEMORY Illuminates if any track or station has been stored to a CD program or tuner memory in CD mode or TUNER mode. -
Page 13: Remote Control
FUNCTIONAL OVERVIEW REMOTE CONTROL INSTALLING BATTERIES: 1. Remove the battery cover from the back of the remote. 2. Insert 2 *AA* batteries into the remote, paying careful attention to the polarity diagram (+ / -) on the battery compartment cover. 3. -
Page 14: Functional Overview
FUNCTIONAL OVERVIEW REMOTE CONTROL NOTE: The above Time display includes: Clock display, Time ON, Time OFF. 10. MEMO / C-ADJ. •In TUNER mode, press to store AM/FM stations in the memory locations. •In CD mode, press to do CD program in memory locations. -
Page 15: Amplifier
AMPLIFIER GENERAL 1. Press the POWER button to turn the system on. 2. Select the source by pressing the desired source se- lector button: •Press the TUNER button to listen to a radio station. •Press the TAPE button for audio cassette. •Press the CD button to listen to a compact disc. -
Page 16: Timer Setting
TIMER SETTING 2. Press the MEMO / C-ADJ button one time and hour digit will flash. Then press the TUNING • DOWN / PREVIOUS or TUNING • UP / NEXT button until the correct hour digit appears. 3. Press the MEMO / C-ADJ button again and minute digit will flash. -
Page 17: Controls And Features
TURNTABLE PHONO CONTROLS AND FEATURES 1. 45 rpm Adaptor 2. Turntable platter 3. Cueing lever 4. Speed selector 5. Tone arm 6. Tone arm rest PLAYING A RECORD: 1. Switch the system on using the POWER button. 2. Remove the stylus (needle) cover. 3. -
Page 18: Cd Changer
CD CHANGER LOADING A DISC INTO THE CD TRAY 1. Press the POWER button to switch on the system. 2. Select the CD function by pressing the CD button on the front panel. You can also press the CD button on the remote control. -
Page 19: Cd Random Playback
CD CHANGER CD RANDOM PLAYBACK 1. Press the RANDOM button before or during play. 2. The RANDOM indicator illuminates and tracks are now played in a random order. 3. Each time you press the TUNING • UP / NEXT button the next random track will play. -
Page 20: Cd Program ( Cd Memory )
CD CHANGER •Total remaining time of current disc •Total playing time of current disc. CD PROGRAM ( CD MEMORY ) Storing a Program 1. In CD stop mode, press the MEMO / C-ADJ button to select the CD program function. 2. -
Page 21: Tape Player
TAPE PLAYER LOADING ONE TAPE 1. Press the POWER button to switch on the system. 2. Select the TAPE function by pressing the TAPE button on the front panel or remote control. 3. Depress the STOP / EJECT button of either [ DECK A] or [ DECK B ] to open the door. -
Page 22: Recording ( Deck A )
TAPE PLAYER RECORDING [ DECK A ] NOTE: To set up a CD program before recording, see page 17. 5. To stop recording , press the STOP / EJECT button on [ DECK A ] ,and at this time , the CD playback will be in the Pause mode. -
Page 23: Tuner
TUNER AUTO ( automatic ) / MANUAL TUNING 1. Press the POWER button to switch on the system. Select the TUNER function by pressing the TUNER / BAND button on the front panel or remote control. 2. Press the TUNER / BAND button repeatedly until the desired band (FM or AM) is selected. -
Page 24: General Information
GENERAL INFORMATION TROUBLESHOOTING Please make these simple checks before calling for service. These tips can save you time and money. NO POWER • Make sure the power cord is inserted fully into a 120V/60Hz outlet. • Check to be sure that the outlet is not controlled by a wall switch. •... -
Page 25: System Specifications
GENERAL INFORMATION SYSTEM SPECIFICATIONS RECEIVER Power output: Front ... 5Wx2 Total harmonic distortion ... 10% Power supply ... 120V/60Hz Tuning Range: FM ... 87.5~108.0MHz AM ... 530~1710KHz *Specifications subject to change without notice.
