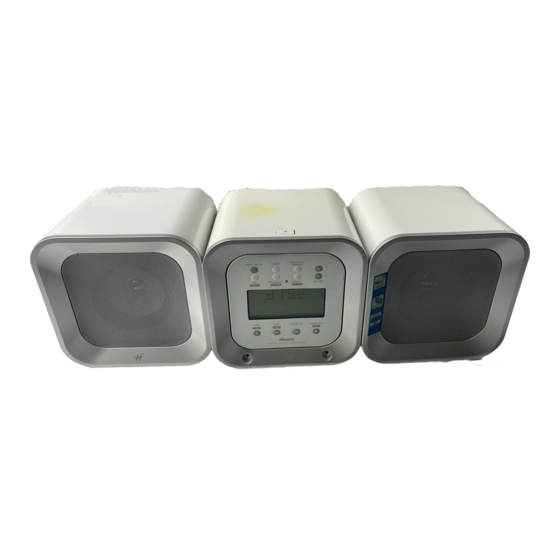

Memorex MX4118 User Manual

Memorex MX4118 User Manual

Home audio system with cd player and am/fm stereo radio
Hide thumbs Also See for MX4118:

Advertisement

Quick Links

MX4118
User's Guide
Home Audio System with
CD Player and AM/FM
Stereo Radio
Before operating this product,
please read these instructions completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX4118 and is the answer not in the manual?

Questions and answers

Summary of Contents for Memorex MX4118

  • Page 1 MX4118 User’s Guide Home Audio System with CD Player and AM/FM Stereo Radio Before operating this product, please read these instructions completely.
  • Page 2 PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. For future reference, record the serial number of the unit printed on the rear of the cabinet.
  • Page 3 Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
  • Page 4 IMPORTANT SERVICE SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated.
  • Page 5: Preparation For Use

    SPEAKER CONNECTION Locate the Speaker Jacks on the rear of the unit and connect the right speaker to the Right (R) Speaker jack and the left speaker to the Left (L) Speaker jack. CAUTION: Only connect the speakers which are supplied with the unit. The use of any other or additional speakers may cause damage to the unit.
  • Page 6: Connecting An External Unit

    PREPARATION FOR USE (CONTINUED) CONNECTING AN EXTERNAL UNIT You can connect an external unit to this unit, such as a cassette player, etc. Simply connect the supplied audio cable from the AUX IN jack on this unit to the external unit's AUX OUT jack. This will allow you to broadcast the external unit's sound through this unit.
  • Page 7: Location Of Controls

    LOCATION OF CONTROLS FRONT 1. SLEEP Button 2. RADIO AM/FM/POWER ON Button 3. EQ/TIMER Button 4. ALARM/MODE/MEM+ Button 5. Display 6. TIME - /TUNING/SKIP/SEARCH o Button 7. TIME + /TUNING/SKIP/SEARCH N Button 8. AUX IN Jack 9. CD DOOR OPEN Button 10.
  • Page 8 LOCATION OF CONTROLS (CONTINUED) REAR REMOTE 1. Speaker Jacks 2. AC Cord 3. FM Wire Antenna 1. VOLUME + Button 2. RADIO AM/FM/POWER ON Button 3. PLAY/PAUSE (®p)/ POWER ON Button 4. TIME - /TUNING/ SKIP/SEARCH o Button 5. VOLUME – Button 6.
  • Page 9: Setting The Clock

    OPERATING INSTRUCTIONS SETTING THE CLOCK While the unit is off (the clock appears in the display), press the STOP ( )/TIME SET/ POWER OFF button; the hour digit(s) will blink in the display. To set the minute, press the TIME -/TUNING/SKIP/SEARCH o button 1 to decrease and/or TIME +/TUNING/SKIP/ SEARCH n button 2 to increase...
  • Page 10: Listening To The Radio

    OPERATING INSTRUCTIONS (CONTINUED) LISTENING TO THE RADIO Press RADIO AM/FM/ POWER ON button to turn the unit on; "AM" or "FM" and the frequency will appear in the display. AUTOMATIC TUNING: Press and hold the TIME/TUNING/ SKIP/SEARCH o 1 or n 2 button until the frequency in the display starts to scan, and then release the button;...
  • Page 11: Setting Radio Presets

    SETTING RADIO PRESETS This unit can preset 10 AM and 10 FM radio stations for convenient recall. Press RADIO AM/FM/ POWER ON button to turn the unit on; "AM" or "FM" and the frequency will appear in the display. Press the PROGRAM/MEMORY button 1;...
  • Page 12: Playing Compact Discs

    OPERATING INSTRUCTIONS (CONTINUED) PLAYING COMPACT DISCS This unit can play standard, CD-R or CD-RW CDs. Press the PLAY/PAUSE (®p)/ POWER ON button to turn the unit on; the display will light brightly. NOTE: If a CD disc is inserted, will start playing automatically.
  • Page 13: Random Playback

    OPERATING INSTRUCTIONS (CONTINUED) FORWARD/REVERSE SKIP TRACK AND HIGH-SPEED MUSIC SEARCH ( During playback, press the TIME +/ TUNING/SKIP/SEARCH n button once to advance the player to the beginning of the next track. Press TIME +/TUNING/SKIP/ SEARCH n button repeatedly to advance the player to higher- numbered tracks.
  • Page 14: Programmed Playback

    OPERATING INSTRUCTIONS (CONTINUED) REPEAT PLAYBACK ONE TRACK OR ALL TRACKS To repeat a single track, press the REPEAT/CLOCK button once while in the Play mode; “REPEAT 1” will appear in the display. Press the TIME/ TUNING/SKIP/ n 2 or o 3 button to SEARCH select the specific track that you wish to repeat.
  • Page 15 OPERATING INSTRUCTIONS (CONTINUED) Press either the TIME/ TUNING/ o 1 or n 2 button SKIP/SEARCH to select the next track you wish to program. When the desired track number appears in the display, press the PROGRAM/MEMORY button 3 again. PROGRAMMED REPEAT It is also possible to use the Program and Repeat functions together to repeat a specific...
  • Page 16: Setting The Timer

    OPERATING INSTRUCTIONS (CONTINUED) SETTING THE TIMER Set the timer to turn the unit on and off to the Tuner or CD mode at a preset time as follows: With the power off, press the REPEAT/CLOCK button 1 and then press the STOP ( )/TIME SET/ POWER OFF button 2 within 5 seconds to enter the Timer ON setting mode;...
  • Page 17 OPERATING INSTRUCTIONS (CONTINUED) ACTIVATING THE SLEEP FUNCTION Set the sleep timer as follows: With the unit is on, press the SLEEP button and “OFF” and “SLEEP” will appear in the display. Press the SLEEP button again; “90” will appear in the display and the unit will turn off after 90 minutes.
  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE Caring for Compact Discs • Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc. • Do not attach adhesive tape, stickers, etc. to the compact disc label.
  • Page 19: Troubleshooting Guide

    OR CONTACT CUSTOMER SERVICE AT (954) 660-7100. PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.
  • Page 20: Specifications

    SPECIFICATIONS GENERAL Power Source (Main Unit) ...AC 120V, 60 Hz Power Source (Remote Control) ...DC 3V, 2 x “AAA” size battery Speaker ...4 Ohms x 2 Output Power...12.5W x 2 RADIO SECTION Frequency Range (FM)..87.5–108 MHz Frequency Range (AM)...520–1710 KHz CD SECTION Disc Diameter...4.72"...
  • Page 21 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memorexelectronics.com...
