Summary of Contents for Memorex MX4501

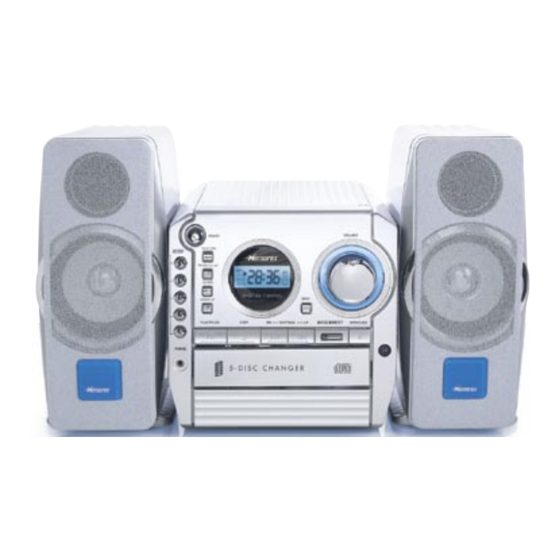

- Page 1 MX4501 User’s Guide Home Audio System with 5-CD Player and AM/FM Stereo Radio Before operating this product, please read these instructions completely.
- Page 2 PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. For future reference, record the serial number of the unit printed on the rear of the cabinet.
- Page 3 Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
- Page 4 IMPORTANT SERVICE SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated.
-
Page 5: Preparation For Use
SPEAKER CONNECTION 1. Place the speakers in convenient locations on either side of the unit. Usually a distance of five to eight feet between speakers provides the best stereo effect, but this may vary depending on the size and acoustics of the room. 2. -
Page 6: Connecting An External Unit
PREPARATION FOR USE (CONTINUED) CONNECTING AN EXTERNAL UNIT NOTES: • Connecting the unit to an external audio source will allow you to broadcast the external unit’s sound through this unit’s speakers. • When connecting the external unit, refer to the owner’s manual of the external unit, as well as this manual. •... -
Page 7: Location Of Controls
LOCATION OF CONTROLS FRONT 2 3 4 5 11 12 1. DISC SELECT 1-5 Buttons/Disc Indicators 2. POWER Button 3. PROGRAM//MEMORY/ CLOCK SET Button 4. FUNCTION Button 5. CD MODE Button 6. REPEAT ALL DISC Indicator 7. Display 8. BAND Button 9. - Page 8 LOCATION OF CONTROLS (CONTINUED) REAR REMOTE 1. AUX In Jacks 2. FM Wire Antenna 3. Speaker Jacks 4. AC Cord 1. FUNCTION Button 2. OPEN/CLOSE Button 3. PLAY/PAUSE (®p) Button 4. SKIP/TUNING o Button 5. STOP ( ) Button 6. VOLUME Down Button 7.
-
Page 9: Bass Boost
OPERATING INSTRUCTIONS SETTING THE CLOCK While the unit is at the standby mode (the clock appears in the display and the backlight is dimly lit), press hold PROGRAM/MEMORY/CLOCK SET button; "24" or "12" will blink in the display. Press the SKIP/TUNING o 1 or n 2 button to set the current hour (making sure to also set the correct AM/PM setting if in 12H... -
Page 10: Listening To The Radio
OPERATING INSTRUCTIONS (CONTINUED) LISTENING TO THE RADIO Press the POWER button to turn the unit on; the display will light brightly. MANUAL TUNING: Repeatedly press the SKIP/TUNING o 1 or n 2 button to manually advance the frequency in the display up or down until the desired frequency appears. -
Page 11: Setting Radio Presets
SETTING RADIO PRESETS This unit can preset 10 AM and 10 FM radio stations for convenient recall. Press the POWER button to turn the unit on; the display will light brightly. Press the PROGRAM/MEMORY/ CLOCK SET button 1; the preset number will appear and MEM will blink in the display. -
Page 12: Playing Compact Discs
OPERATING INSTRUCTIONS (CONTINUED) PLAYING COMPACT DISCS This unit can play standard, single or CD-R CDs. Press the POWER button to turn the unit on; the display will light brightly. Push Back & Pull Out Areas To insert more CDs, insert a disc in the top spindle, then slightly push the Push Back &... -
Page 13: Cd Pause Control
OPERATING INSTRUCTIONS (CONTINUED) CD PAUSE CONTROL During CD playback, if you wish to pause the disc momentarily, press the PLAY/PAUSE (®p) button. Playback stops but the disc continues to spin and the Play indicator will blink. FORWARD/REVERSE SKIP TRACK AND HIGH-SPEED MUSIC SEARCH ( During playback, press the SKIP/TUNING n button once to advance the player to the... - Page 14 OPERATING INSTRUCTIONS (CONTINUED) REPEAT PLAYBACK ONE TRACK OR ALL TRACKS ON A SELECTED DISC To repeat a single track, select a Disc by pressing one of the Disc (1 through 5) buttons ; playback will start automatically. Press the CD MODE button 2 once; “RPT” will blink in the display.
-
Page 15: Random Playback
OPERATING INSTRUCTIONS (CONTINUED) RANDOM PLAYBACK To play the tracks on the desired CD in a random order. Press a Disc Select button (1 through 5) 1 to select the desired disc, then press the STOP ( ) button 2 to stop the playback. -
Page 16: Programmed Repeat
OPERATING INSTRUCTIONS (CONTINUED) Press the SKIP/TUNING o 1 or n 2 button to select the first track that you wish to program. When the desired track number appears in the display, press the PROGRAM/ MEMORY/CLOCK SET button 3 again. PROGRAMMED REPEAT It is also possible to use the Program and Repeat functions together to repeat a specific... -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Caring for Compact Discs • Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc. • Do not attach adhesive tape, stickers, etc. to the compact disc label. -
Page 18: Troubleshooting Guide
OR CONTACT CUSTOMER SERVICE AT (954) 660-7100. PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993. -
Page 19: Radio Section
SPECIFICATIONS GENERAL Power Source (Main Unit) ...AC 120V, 60 Hz Power Source (Remote Control) ...DC 3V, 2 x “AAA” size battery Speaker ...8 Ohms x 2 Output Power...12.5W x 2 RADIO SECTION Frequency Range (FM)..87.5 - 108 MHz Frequency Range (AM)..530 - 1710 KHz CD SECTION Disc Diameter...4.72"... - Page 20 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memorexelectronics.com...
